Description
Architectural Geometry & Ambient Balance

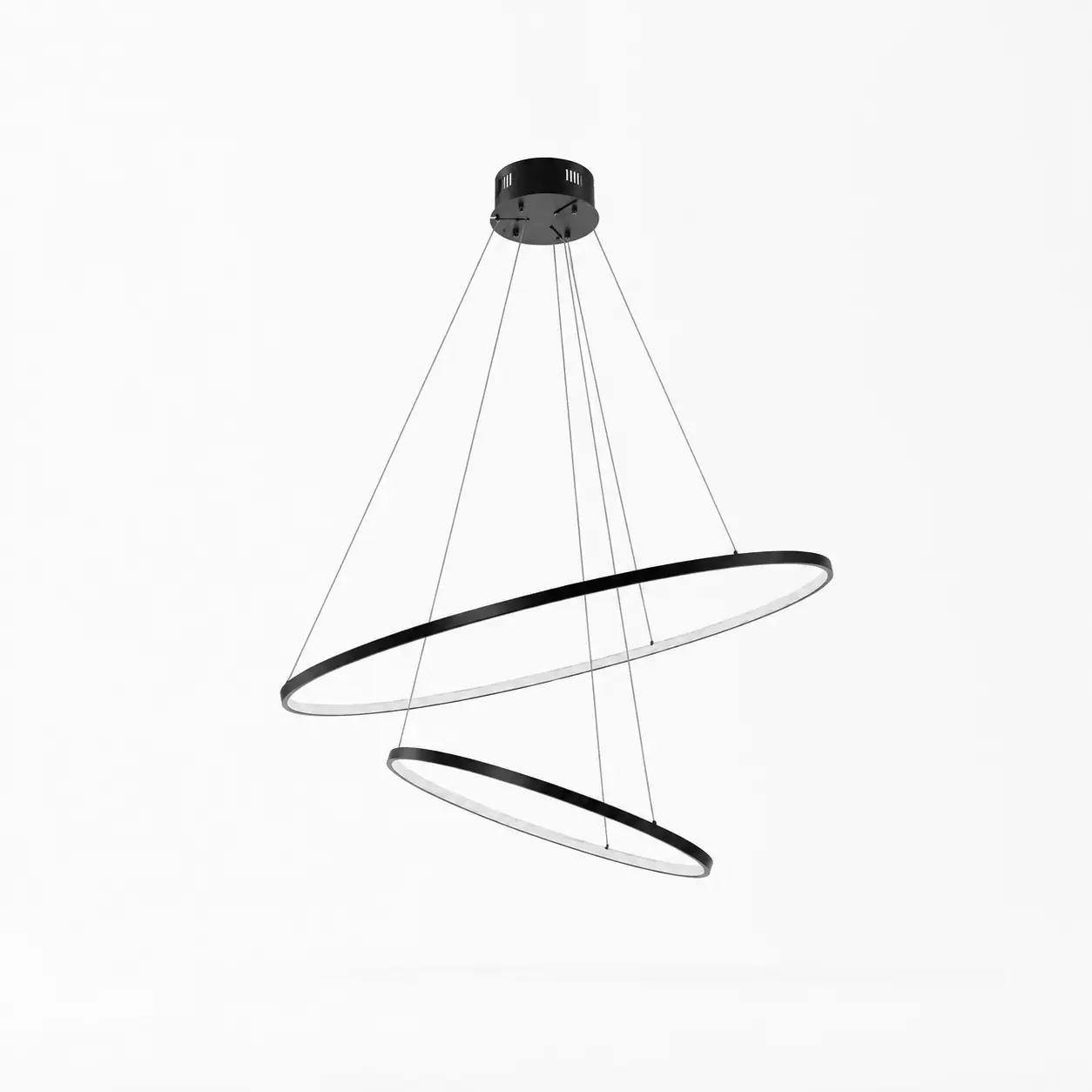

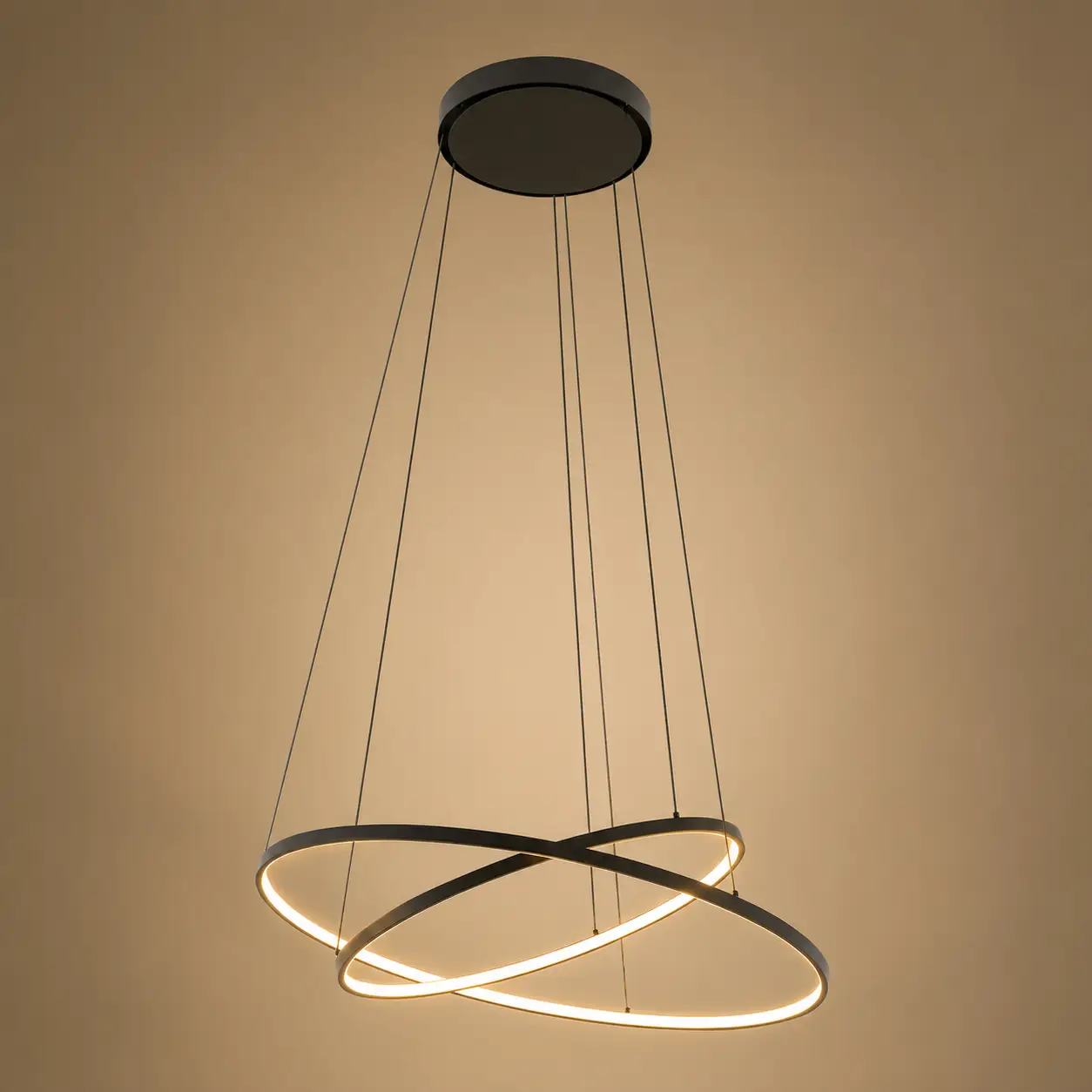

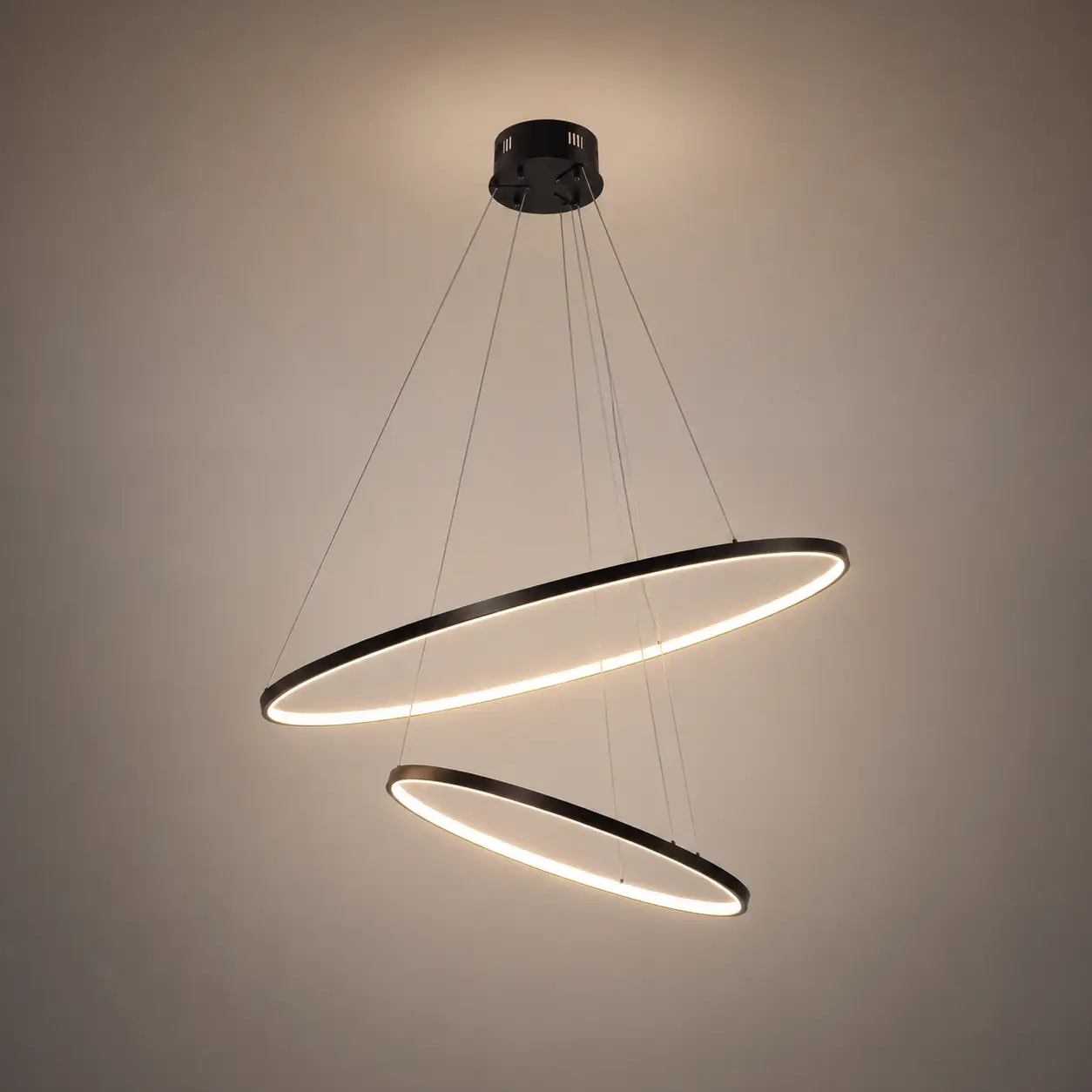

ZenRings Dual-Tier LED Pendant Light
The ZenRings Dual-Tier LED Suspension Light embodies the harmonious fusion of continuous ring geometry and modern architectural illumination. Featuring two precision-engineered concentric aluminum rings suspended by ultra-slim aircraft-grade steel cables, this fixture casts soft, 360-degree glare-free direct and indirect ambient light. Equipped with integrated three-color temperature switching (3000K Warm White / 4000K Neutral Natural / 6000K Cool Daylight) or optional dimmable white tuning, ZenRings is designed as a foundational manufacturing blueprint for high-end residential lobbies, executive conference rooms, luxury dining spaces, and boutique hospitality interiors. Every structural proportion—from ring diameters and tier height offsets to anodized surface treatments—is fully customizable to fit architectural schematics.

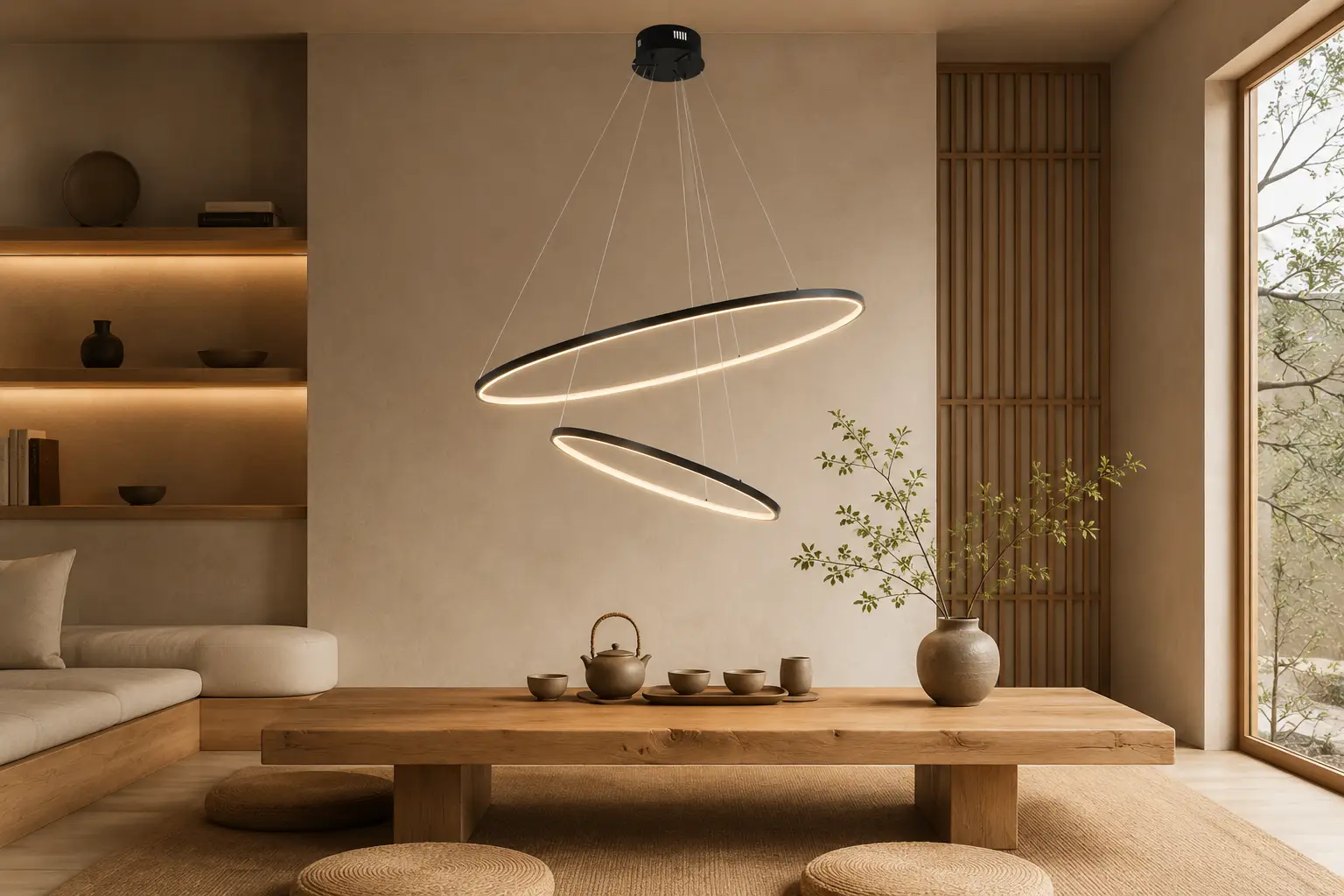

Context 01 Japandi & Organic Modern Minimalist SpacesSuspended over a low-profile natural oak table or micro-cement tea lounge. The dual-tier ring geometry offers clean horizontal balance, effortlessly complementing warm timber tones, linen upholstery, and tactile lime-wash walls while providing customizable CCT light warmth. | Context 02 Modern Luxury Hospitality & Commercial DiningPositioned above central hotel reception islands or marble boardroom tables. The brushed champagne brass finish paired with 4000K crisp neutral lighting creates a sophisticated, high-end architectural focal point without creating visual clutter. |
Engineering Reference Blueprint
Envelope Dimensions & Technical Specifications
SPECIFICATION DISCLAIMER: The parameters below represent our baseline manufacturing blueprint and intentionally omit internal driver housing clips, quick-connector wiring channels, and heat sink thermal calculations. As a dedicated OEM/ODM manufacturer, all outer envelope ring diameters (Ø400mm–Ø2000mm+), ring counts (single, dual, triple, or multi-tier cascade), metallic finishes, LED CCT specs, and control protocols are 100% fully customizable according to project drawings and local electrical standards.
| Specification Axis | Standard Baseline (Reference Only) | OEM / ODM Customization Options |
|---|---|---|
| Envelope Ring Dimensions | Outer Ring: Ø800 mm | Inner Ring: Ø500 mm | Ring Profile: W 25 mm × H 40 mm | Canopy: Ø250 mm × H 45 mm | Custom diameters (Ø400 mm up to Ø2500 mm); adjustable concentric or off-center overlapping ring layouts |
| Suspension & Hang Drop | Min Overall Hang: 400 mm | Max Overall Hang: 3000 mm (Adjustable Stainless Aircraft Cables with Auto-Lock Grippers) | Extended cable lengths (up to 10m) for multi-story voids/atriums; sloped ceiling mounting plates |
| Chassis Metallurgy & Optics | Architectural Extruded 6063-T5 Aluminum Alloy with Optical Grade High-Transmittance Matte PMMA Diffuser | Solid Brass profile options; optical silicone gel diffusers; direct/indirect dual-emitting optics |
| Illumination Engine & CCT | Integrated High-CRI (CRI >90) SMD LEDs | Three-Color Switching (3000K Warm / 4000K Neutral / 6000K Cool White) | Tunable White (2700K–6500K), High-CRI >95/97, RGBW color-changing, or fixed single CCT LED chips |
| Surface Finish & Coating | Anodized Brushed Satin Gold / Champagne Brass with Anti-Fingerprint Protective Clear Seal | Matte Architectural Black, Brushed Bronze, Electroplated Chrome, Custom Fine-Textured Powder Coatings (RAL Color System) |
| Electrical & Control Protocol | Universal Input 100V-277V AC | Constant Current Isolated Flicker-Free LED Driver (Triac/Phase-Cut Dimmable) | DALI-2, 0-10V, PWM dimming, Casambi/Zigbee Smart Control Integration, or Remote Ceiling Cavity Driver installation |

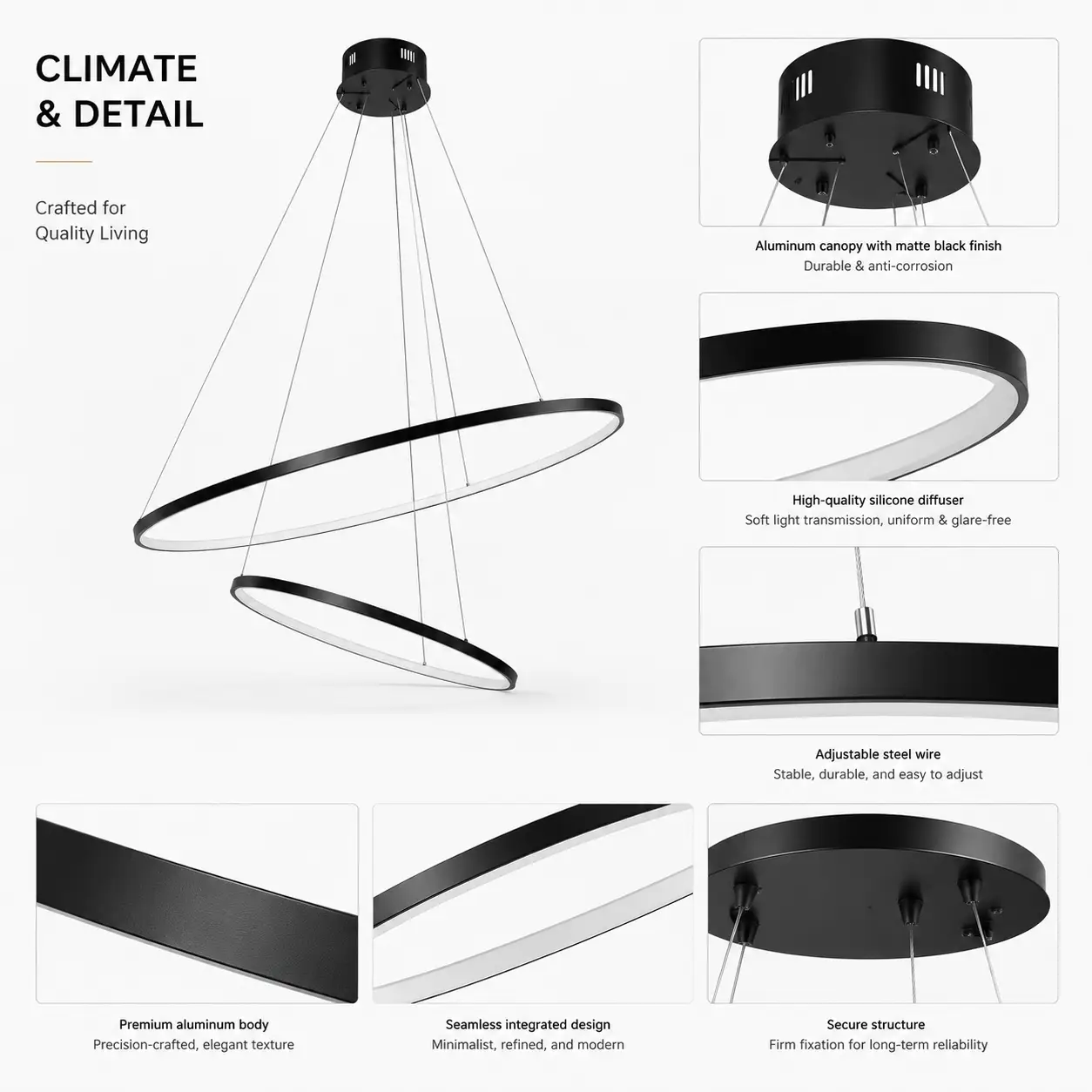

Product Longevity
Climate Resilience & Maintenance Ergonomics
Corrosion & Oxidation Barrier Anodized Anti-Tarnish SealingHigh-humidity coastal climates can accelerate metal pitting and tarnish. Smile Lighting treats the extruded 6063-T5 aluminum structure with deep anodization and an electro-sealed transparent protective coat. This shields the metallic surface against airborne salt and moisture, ensuring zero discoloration over years of commercial use. | Maintenance Ergonomics Seamless Anti-Dust Diffusers & Modular Driver AccessDust accumulation on LED diffusers reduces lumen output over time. The ZenRings features a seamless optical PMMA strip with anti-static treatment that repels airborne dust. For maintenance, the canopy quick-release driver tray allows technicians to service or swap LED drivers without unmounting the hanging rings. |
Smile Lighting Co., Ltd.
The ZenRings Dual-Tier LED Pendant is a refined exercise in modern minimalism, focusing on pure geometric form and visual lightness. From an aesthetics and interior design perspective, this fixture serves as a versatile sculptural element for contemporary spaces.
1. Aesthetic Composition: Minimalist Linear Harmony
The design is defined by two interlocking circular bands that create a sense of balanced asymmetry.
Geometric Purity: By stripping away traditional ornamentation, the fixture emphasizes the beauty of the circle, a shape associated with unity and calm.
Visual Weightlessness: The ultra-slim profile and delicate aircraft cable suspension allow the rings to appear as if they are floating, preserving an open and airy feel within the room.
2. Materiality: Precision Graphic Contrast
The Matte Black finish provides a strong architectural presence.
Sleek Outlines: The black finish acts as a bold graphic line against the ceiling, making it highly effective for defining space in monochromatic or neutral interiors.
Durable Sophistication: The smooth, non-reflective surface offers a high-end, contemporary look that hides fingerprints and coordinates easily with modern hardware.
3. Lighting Dynamics: Integrated Three-Color Technology
Unlike standard fixtures, the ZenRings Dual-Tier utilizes integrated LED technology with customizable color temperatures.
Diffused Internal Glow: The LED strips are positioned along the inner circumference of the rings, casting a soft, uniform halo that eliminates harsh glare.
Adaptive Atmosphere: The “Three-Color” capability allows the user to switch between warm, neutral, and cool white light, making the fixture adaptable to different times of day or specific mood requirements.
4. Ideal Interior Applications
Modern Dining Environments: Its horizontal spread makes it a perfect centerpiece over round or square dining tables, providing ample light without obstructing views across the table.
Executive Offices: The clean, professional lines and futuristic aesthetic create an atmosphere of precision and modern luxury in creative or professional workspaces.
Minimalist Bedrooms: Hanging this fixture centrally can provide a calming, luminous focal point that complements soft textiles and low-profile furniture.
5. Stylistic Versatility
The ZenRings Dual-Tier is particularly effective within these design languages:
Japandi: It perfectly embodies the intersection of Japanese minimalism and Scandinavian functionality.
Ultra-Modern: The use of integrated LEDs and floating suspension is ideal for high-tech metropolitan residences.
Soft Minimalism: It provides a necessary focal point for “all-white” or sparse interiors without introducing unnecessary visual clutter.
Summary
The ZenRings Dual-Tier LED Pendant is a masterclass in functional sculpture. Its strength lies in its simplicity and the ability to adapt its light quality to the needs of the space. It is a premier choice for designers looking to introduce architectural interest and high-efficiency lighting in a singular, sleek package.
