Description
01. High-Contrast Contour & Low-Clearance Graphic Presences

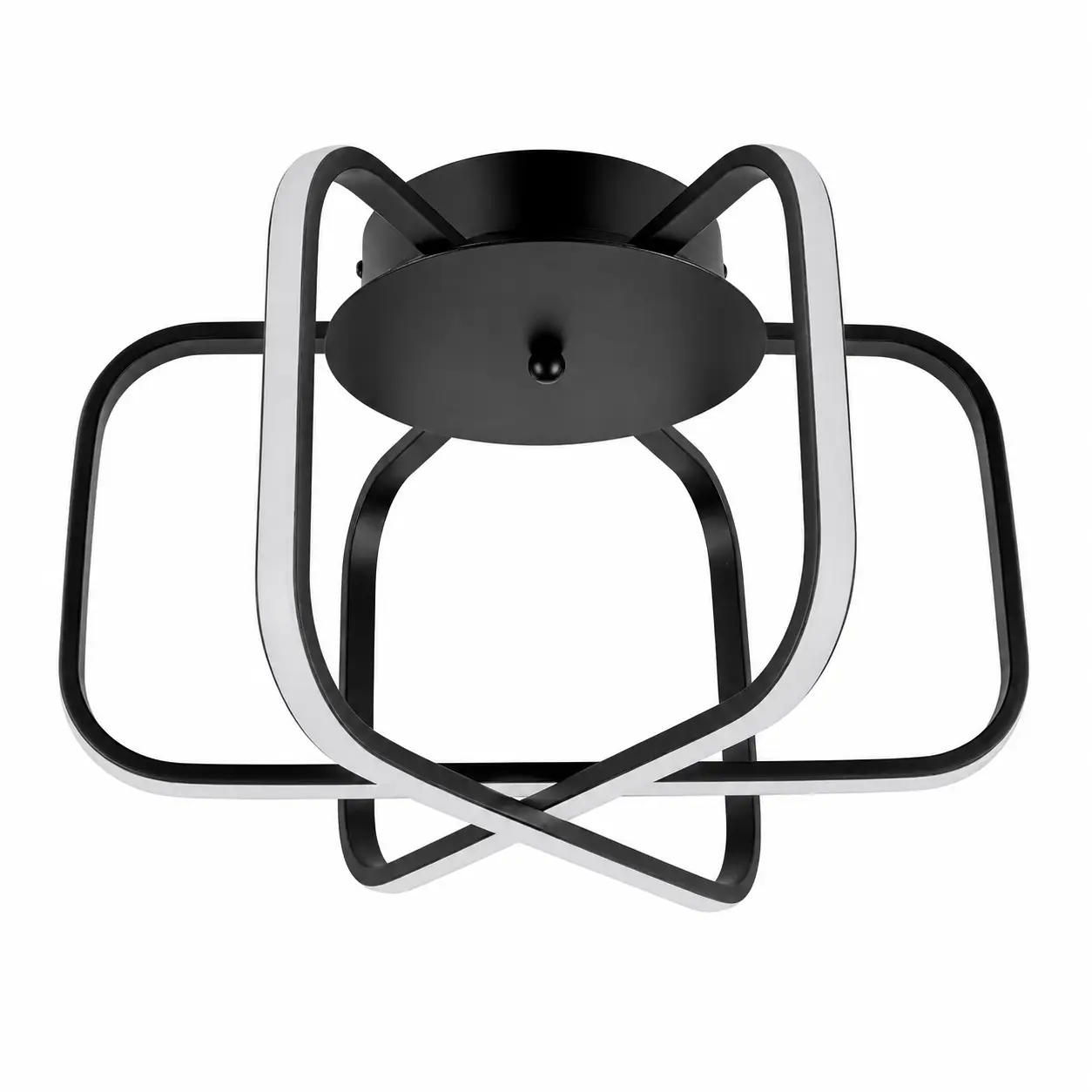

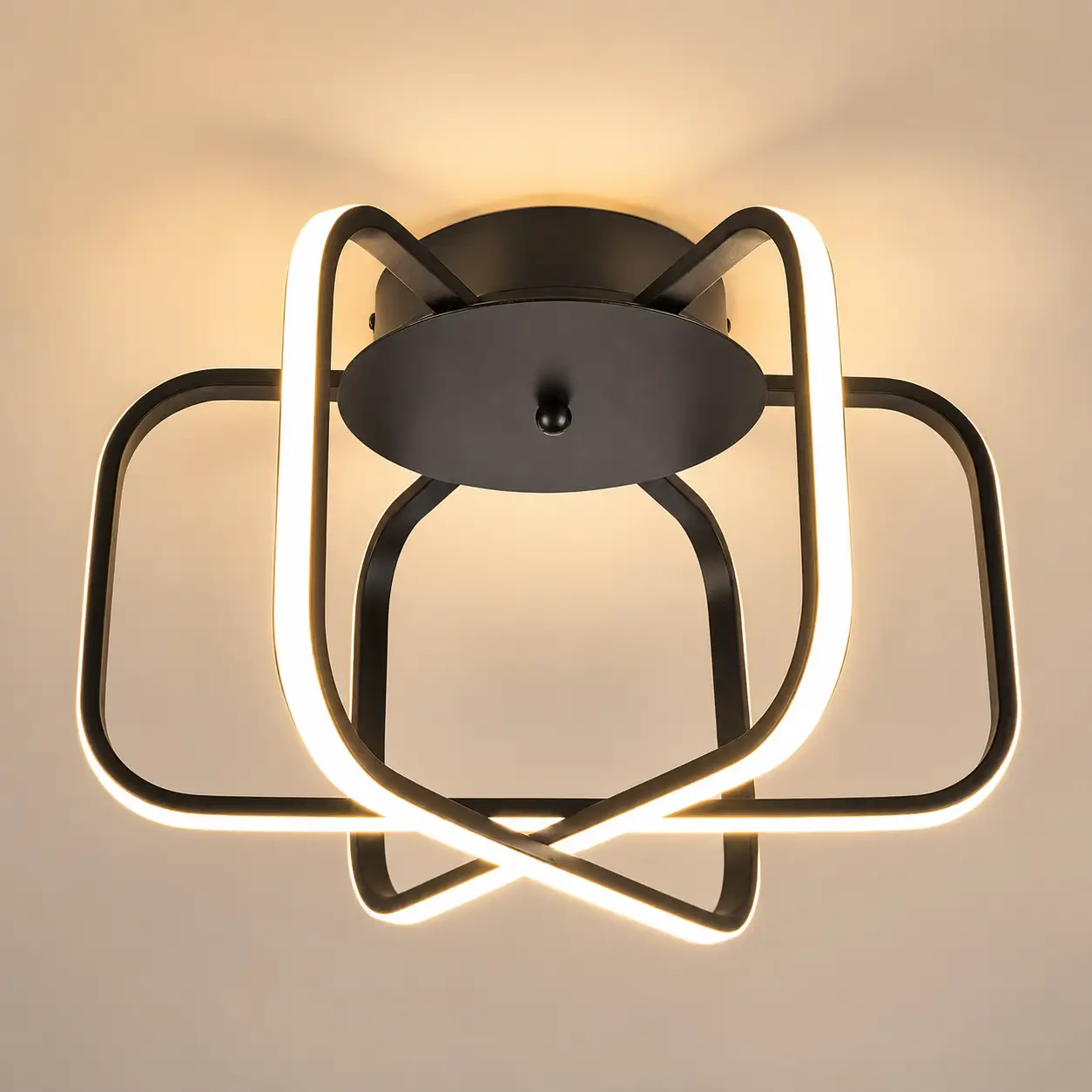

The Onyx Tri-Axis Interlocking LED Flush Mount brings a compelling, graphic definition to modern interior volumes. By framing three orthogonal vertical loops in an intense matte black metal finish against high-transmittance white acrylic shades, this fixture creates a bold chiaroscuro effect. It offers contract interior designers a striking, multi-dimensional visual anchor that commands space without compromising vertical clearance. It is exceptionally well-suited for high-contrast modern luxury salons, minimalist monochromatic penthouses, and upscale executive lounges seeking a definitive geometric centerpiece.
Aesthetic Adaptability for Global Procurement:

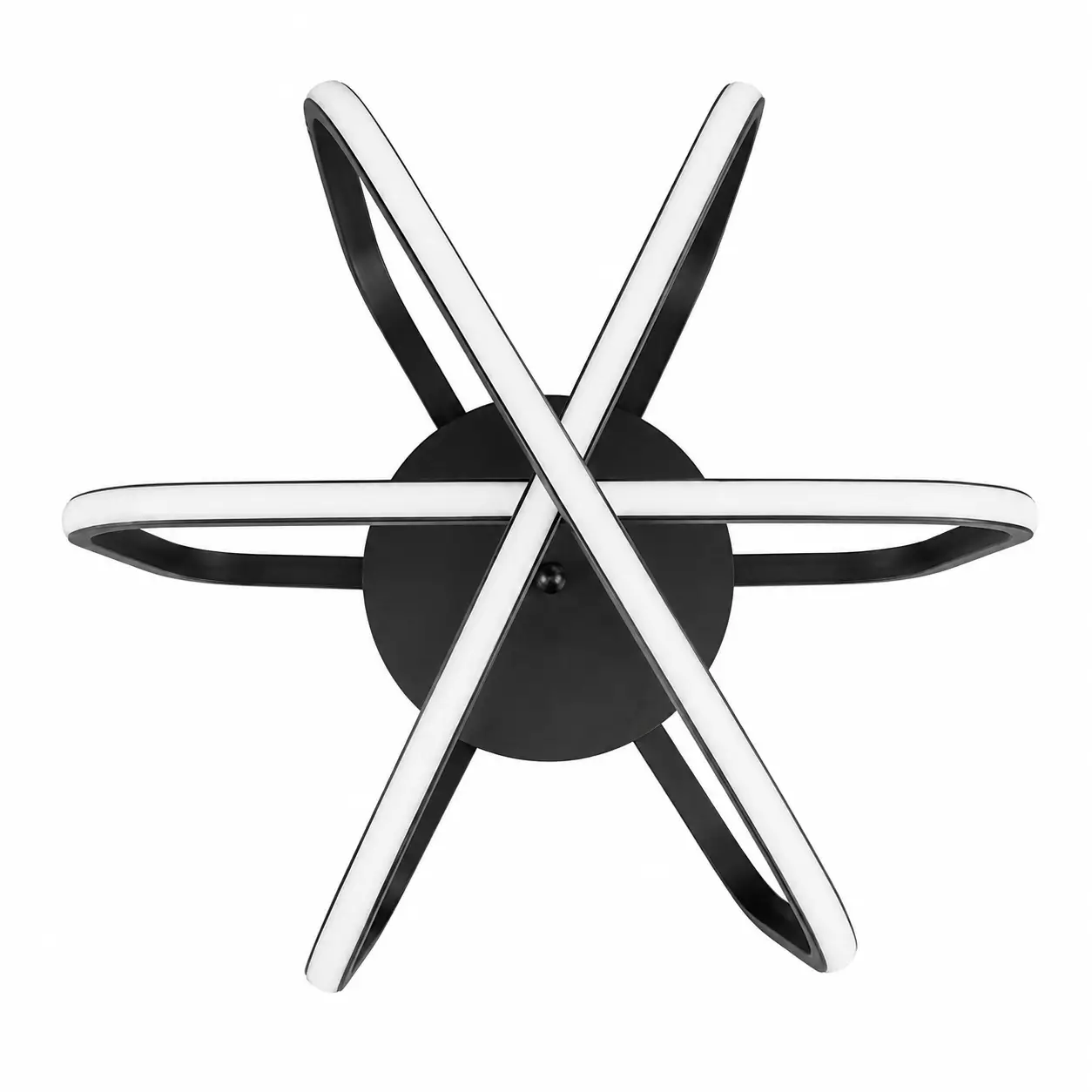

The non-reflective matte black framework traces a precise continuous stroke in three dimensions. This structural configuration effortlessly bridges the gap between raw industrial lofts and highly polished neoclassical spaces, translating solid-state light into a floating architectural sketch.

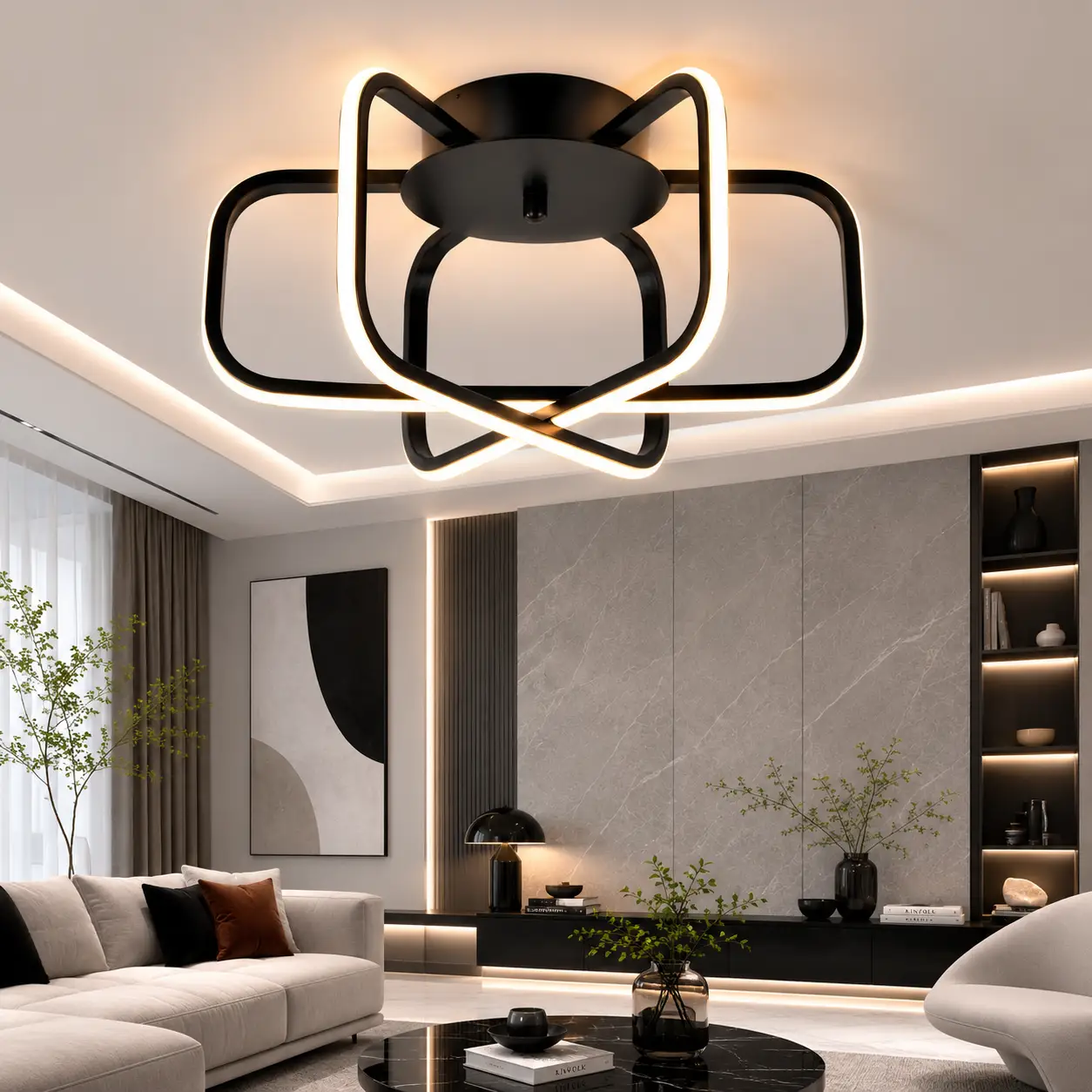

Visual Blueprint: A premium residential penthouse featuring pure white gypsum ceiling planes, integrated gray stone wall coverings, and polished white marble floors. The triple-axis matte black fixture is surface-mounted, emitting a soft 3000K warm-white light that sharply delineates its dark architectural contours.
Visual Blueprint: An urban high-rise executive suite with exposed concrete ceilings, walnut wood panels, and a 2.65m overhead clearance. The matte black vertical rings are configured at a crisp 4000K neutral daylight output, meshing flawlessly with structural hardware and steel mullions.
02. Heavy-Gauge Steel Bending & Anti-Static Climate Resilience

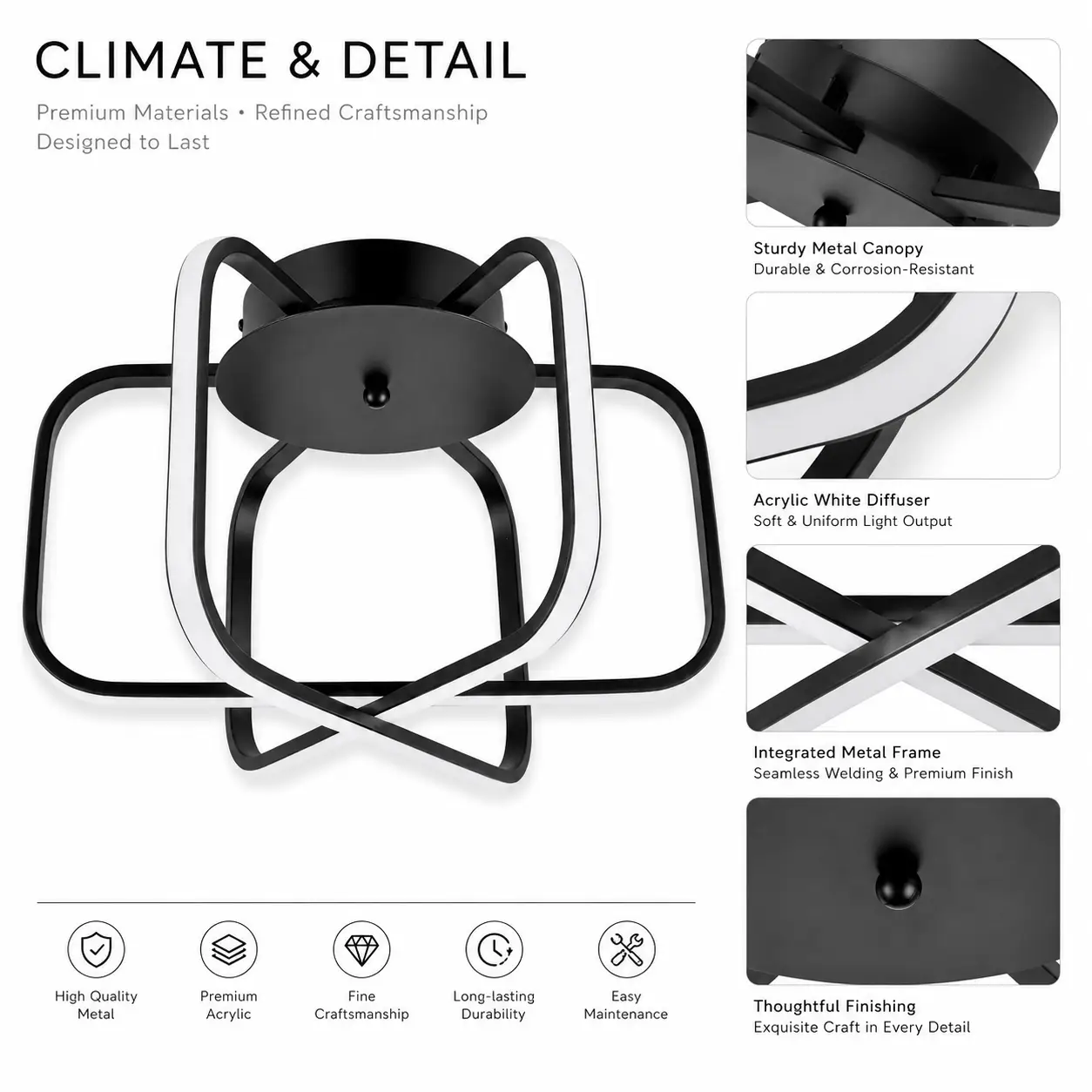

Maintaining continuous axis linearity on an interlocking, multi-ring layout requires absolute metallurgical discipline. Smile Lighting utilizes heavy-duty cold-rolled steel cores shaped via high-tonnage hydraulic forming presses to prevent warping or micro-deflections. The core steel components receive an advanced electrostatically applied matte black powder coating, oven-cured to construct a completely non-porous, micro-scratch-resistant exterior shell. The internal solid-state LED matrices are fully embedded behind dust-proof acrylic white shade diffusers, protecting the circuitry against high-humidity environments and particulate matter buildup.
For projects located in humid maritime zones, tropical coastal resorts, or high-salinity environments, the inner structural skeleton can be fully customized from high-tensile architectural aluminum or marine-grade SUS304/316 stainless steel, preventing base oxidation or pitting over decades of contract life.
The glassless, open-loop geometric design prevents dust trapping, pooling, or insect nesting. Both the matte black outer shell and acrylic diffusers are pre-treated with anti-static layers, allowing multi-property maintenance teams to execute rapid, dry microfiber wipe-downs without disassembly.
Customization Blueprint & Boundary Specifications
B2B PROCUREMENT NOTE: The manufacturing matrix below outlines our standard case study baseline. To safeguard dedicated mold assets and strictly defend proprietary third-party design agreements, internal rivet alignments, locking pins, and micro-circuit details are not visible. All values are reference data points only and 100% customizable.
| Material & Parameter Field | Baseline Reference Case Study | B2B Customization Elasticity |
|---|---|---|
| Max Outer Envelope (Fixture Dimensions) | Width: 620 mm (24.4″) | Length: 620 mm (24.4″) | Total Low-Profile Height: 290 mm (11.4″) | Canopy Diameter: 200 mm (7.9″) | Fully Scalable. The triple vertical ring diameter can be altered to fit vast hospitality atrium spaces, or re-aligned into an elongated linear multi-cluster matrix. |
| Structural Base Metallurgy | Heavy-Duty Cold-Rolled Carbon Steel Interlocking Components | Sheet Thickness: 1.2 mm – 1.5 mm | Can be fully swapped to premium solid H65 architectural brass sheets, lightweight structural aluminum, or high-grade anti-rust stainless steel cores. |
| Finishing Solutions & Surface Colors | High-Temperature Thermo-Baked Deep Matte Black Powder Coating (Anti-Scratch & Anti-UV Protection Chemistry) | Unrestricted surface choice: Electro-plated Premium Brushed Gold, Brushed Nickel, PVD Mirror Silver, Antique Rubbed Bronze, or precise matching to custom RAL charts. |
| Optics & Diffusion Medium | High-Molecular-Weight Matte White Acrylic Shade | Shatterproof, Homogeneous Light Spreading Layer with Embedded Color Stabilizers | Alternative diffusers such as frosted borosilicate glass elements or custom faceted diamond-cut crystal array insertions can be integrated at source. |
| Integrated LED Light Engine | Solid-State High-Efficiency LED Linear Strip Configurations | Base System Power: 48W | Rated Flux: 3840 LM | True Color Rendering Index (CRI) ≥ 90 | Flexible color temperatures: 2700K, 3000K, 3500K, 4000K, or 5000K. Full dimming driver compatibility across Triac, 0-10V, or DALI commercial protocols. |
| Global Wiring & Safe Certification | Factory wired and dielectric insulation tested to fulfill baseline European CE and RoHS compliance directives | Internal layout layout components and driver topologies can be re-engineered at the source to achieve formal UL/cUL (US/Canada), SAA, or PSE localized certificates. |
Requiring a multi-tiered ring variation, specific high-output commercial lumens, or customized rust-proof aluminum frameworks for extreme waterfront projects? Smile Lighting funnels 20+ years of contract manufacturing directly into your architectural layouts.
