The Chrysalis Multi-Axis Interlocking LED Flush Mount

Rated 0 out of 5

Factory OEM/ODM Hub • High-End Contract Manufacturing & Commercial Volume Orders Only

An Architectural Multi-Axis Interlocking Triple-Ring LED Masterpiece for Global Brands, Hospitality Specifiers, and Trade Wholesalers.

(Notice: This is a custom manufacturing reference blueprint case study, not a pre-stocked retail item.)

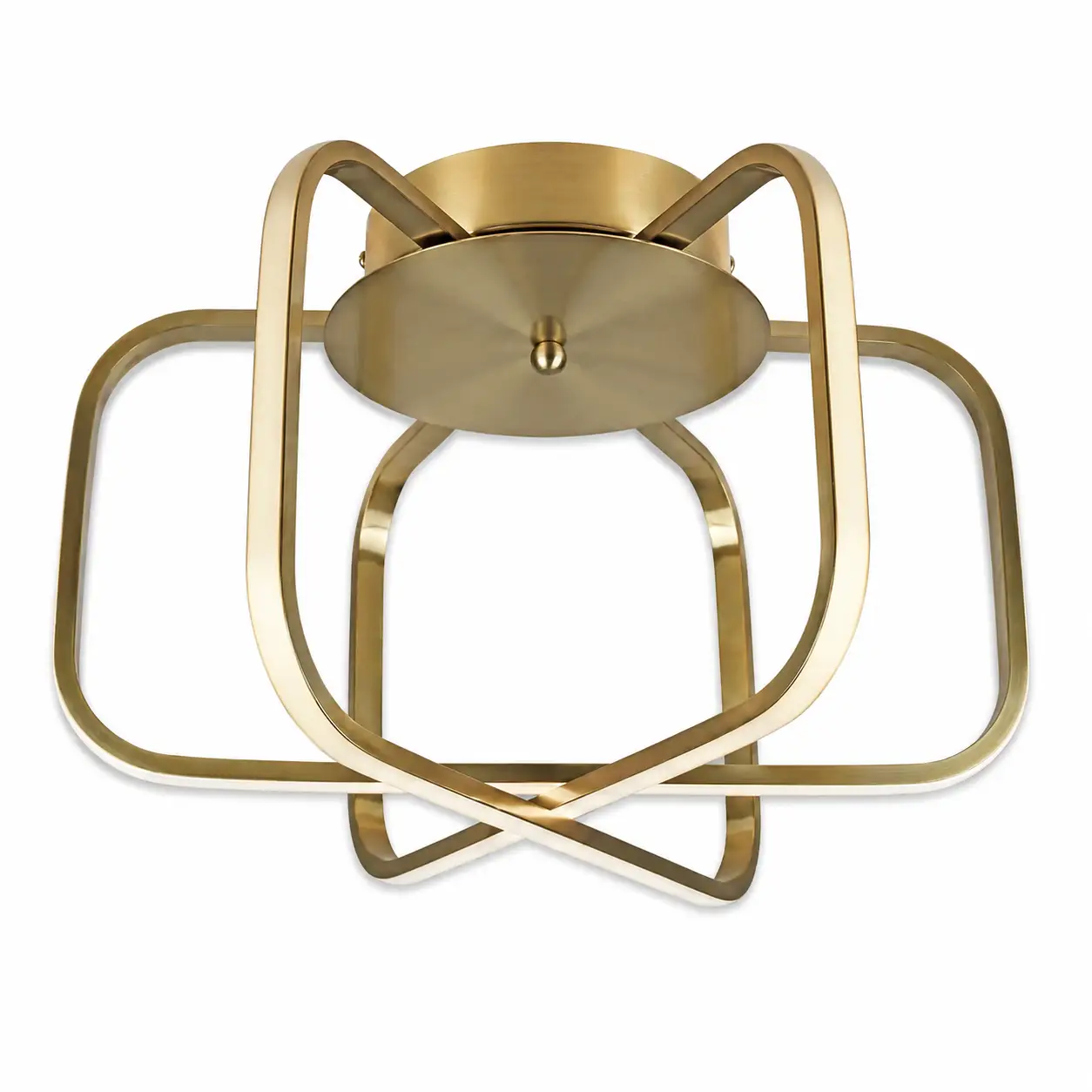

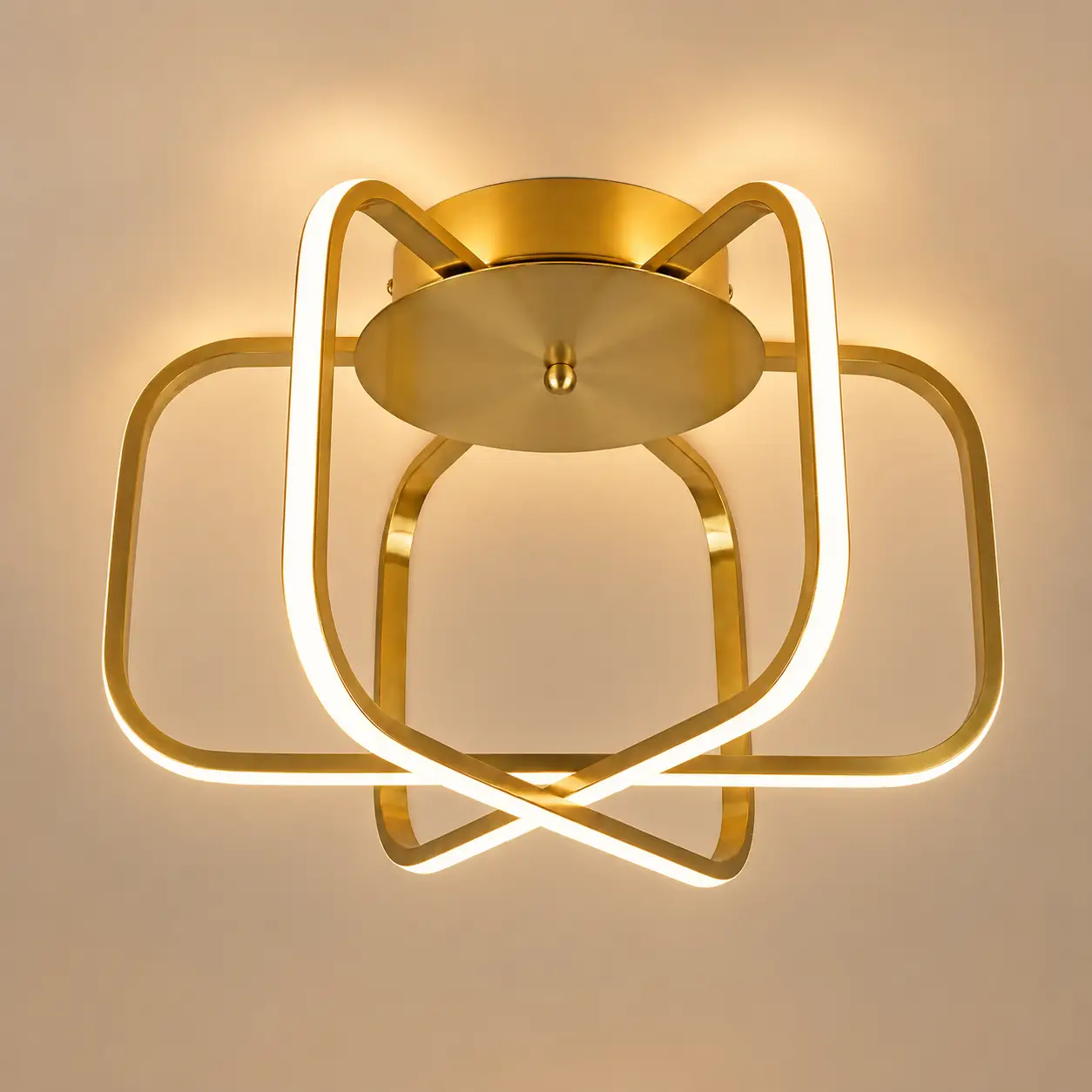

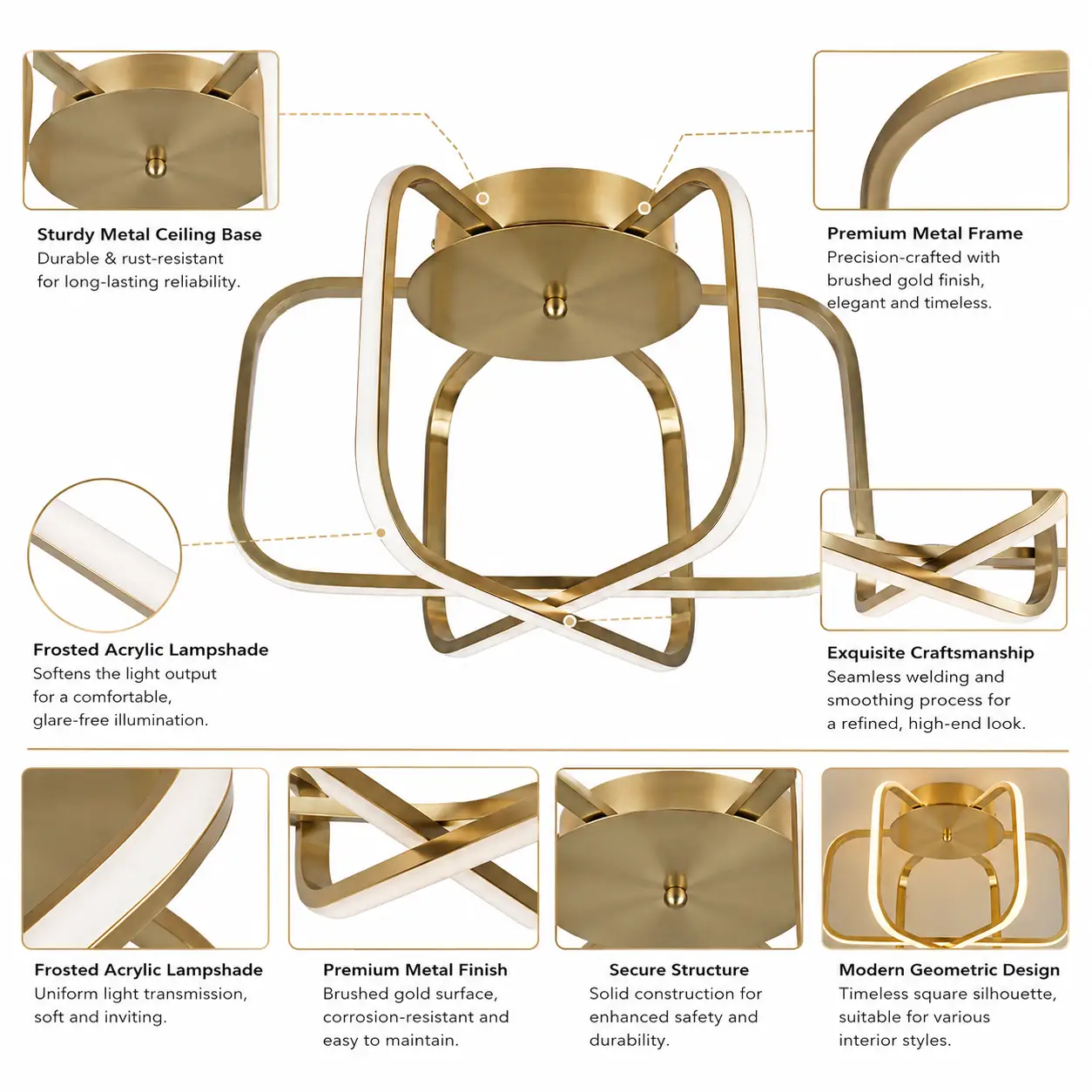

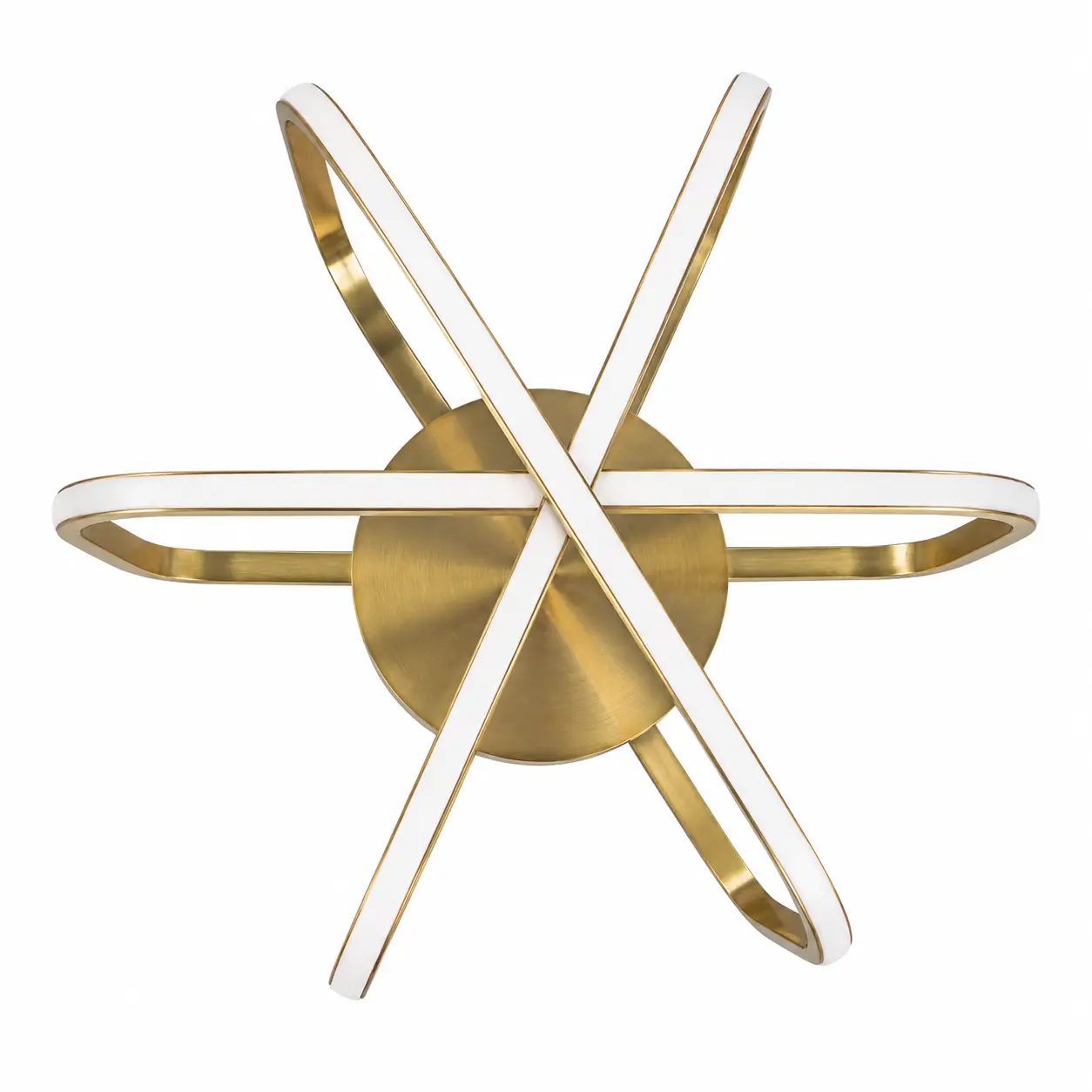

The Chrysalis Multi-Axis Interlocking LED Flush Mount intersects three sweeping metal loop rings through a low-profile central canopy to form a highly dimensional, sculptural matrix. Finished in an elegant, multi-layer electroplated Brushed Gold finish and paired with seamless acrylic white shades, this architectural fixture eliminates the visual flatness typical of low-clearance ceiling surfaces. Equipped with an integrated, highly scalable solid-state LED engine supporting flexible CCT options (2700K, 3000K, 3500K, 4000K, to 5000K), it delivers consistent glare-free ambient output, presenting an elite focal light solution optimized for upscale French cream suites, modern luxury salons, and high-end hospitality layouts.

Flexible Engineering & Dimensional Elasticity: Total envelope dimensions, profile projection depth, and multi-ring counts are 100% adjustable based on your architectural blueprints (All parameters shown are Reference Only).
Premium Metallurgy & Alternative Finishes: Natively constructed with a structural carbon steel chassis, the framework can be converted to H65 solid architectural brass or aluminum, finished in Brushed Gold, Matte Black, Matte White, or Brushed Nickel.
Customizable LED Light Engines: Built-in linear LED arrays support localized project requirements across 2700K–5000K ranges, fully compatible with global commercial Triac, 0-10V, or DALI dimming infrastructure.
Global Compliance Certification & IP Defense: Internal drivers and circuitry lines are optimized to pass UL, cUL, CE, SAA, or PSE testing. Proprietary drawings are locked in highly secured, unpublicized factory databases protected by strict NDA protocols.

20+ Years Bespoke Architectural Lighting Supply Chain Partner

Seeking modified dimensional counts, exact commercial lumen packets, or anti-rust metal adaptations for waterfront configurations? Submit your project schedules and layout files to our engineering team at info@smilelighting.com.

Compare

Description

01. Volumetric Balance & Multi-Style Spatial Adaptation

The Chrysalis Multi-Axis Interlocking LED Flush Mount serves as an exquisite, floating sculptural centerpiece engineered to elevate low-ceiling environments without introducing unnecessary visual bulk. The seamless intersection of three vertical loops breaks flat, rigid lines with exceptional three-dimensional fluidity. The warm, luxurious texture of our premium Brushed Gold finish pairs perfectly with light tones, offering interior specifiers an elegant asset that blends effortlessly into refined French cream master suites, warm minimalist Wabi-Sabi spaces, and soft contemporary residential lounges.

Interior Architect Proportion Note:

The triple-ring layout distributes depth symmetrically from any viewing angle below the canopy. By framing space through outer profile bounds rather than solid, heavy centers, it maintains an airy feel while adding a sophisticated design element to modern luxury interiors.

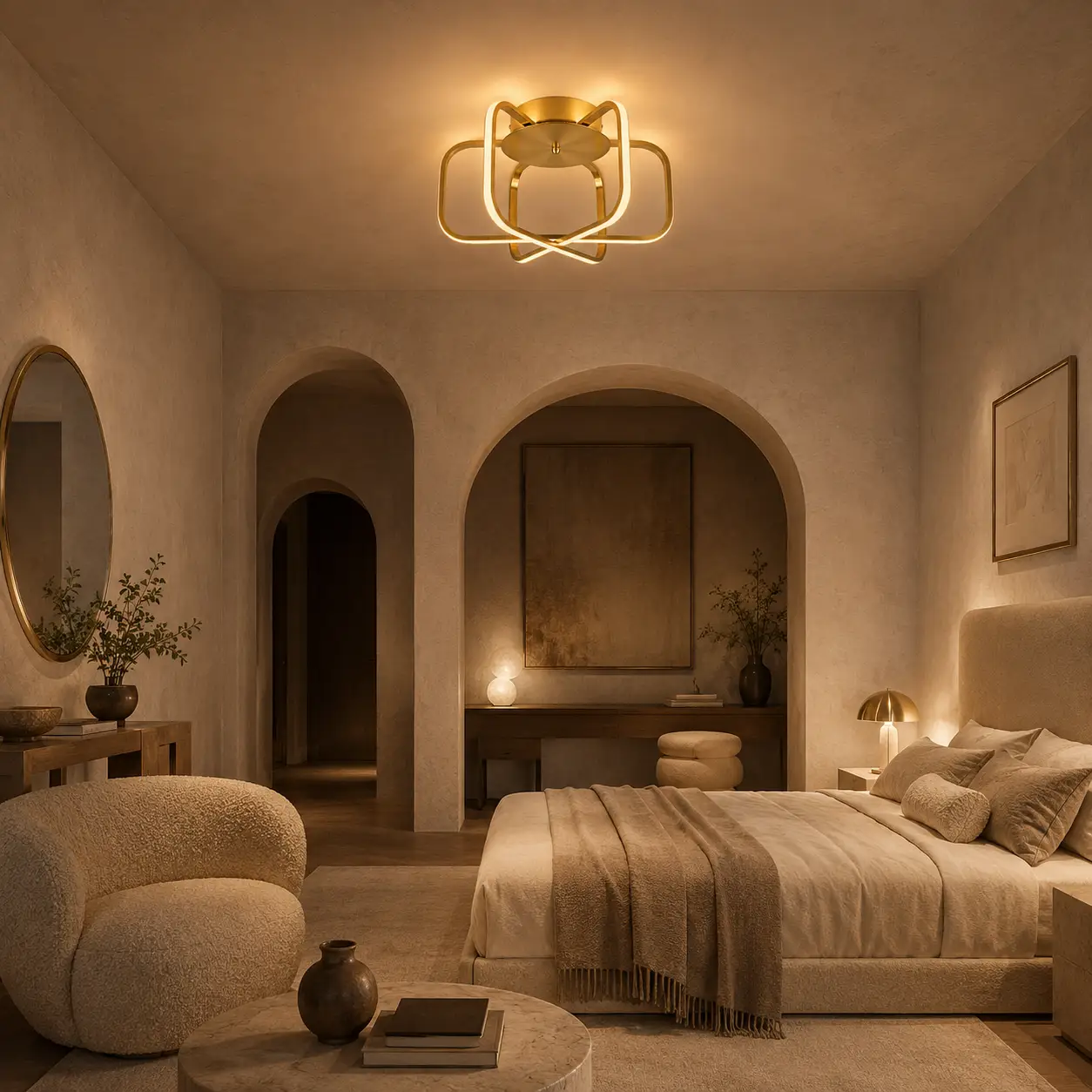

Romantic French Cream / Wabi-Sabi Suite: Showcasing texturized micro-cement walls, arched architecture, and neutral bouclé wool furniture under a low 2.6m flat ceiling. The Chrysalis Triple-Ring in Brushed Gold is surface-mounted, casting an ultra-warm 2700K ambient light that emphasizes the rich metallic textures of the room.

3D Rendering Placement 01

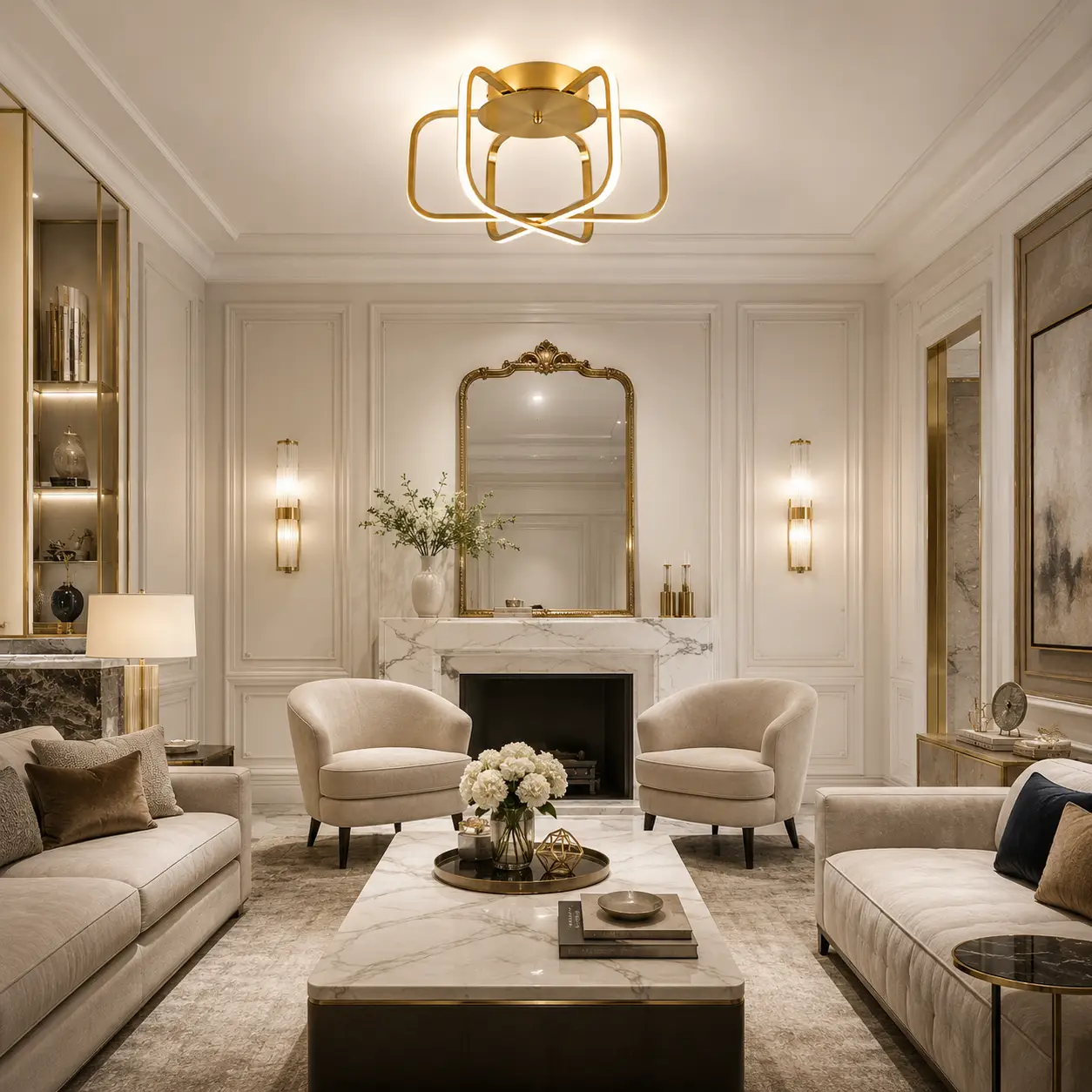

High-End Neoclassical / Modern Luxury Salon: Displaying detailed wall moldings, polished stone countertops, and sleek metal trim accents. The triple-ring gold profile delivers functional overhead light at a crisp 3500K soft white setting, illustrating its versatile aesthetic integration across classic and modern spaces.

[3D Rendering Placement 02]

02. Precision CNC Metallurgy & Multi-Climate Finish Resilience

Forming triple intersecting vertical loops requires high metallurgical precision to ensure clean, seamless curves without warping the metal profile. Smile Lighting shapes these structural components using advanced multi-axis CNC bending systems, applying a multi-pass electroplated brushed gold finish that maintains its clear tone under continuous thermal exposure. The solid-state LED linear lines are entirely enclosed within high-molecular-weight acrylic white shades. This sealed design protects the internal light engine from dust accumulation, airborne debris, and regional humidity changes.

Humid & Coastal Anti-Oxidization:
For projects located in coastal properties or tropical locations with high humidity, the core frame can be upgraded to an anti-corrosive architectural aluminum shell or high-grade stainless steel base, preventing surface oxidation, pitting, or base rust over years of continuous use.

Arid Climates & Low-Effort Maintenance:
The open-air vertical ring setup avoids horizontal glass basins, eliminating common dust or bug collection traps. Both the brushed gold hardware and acrylic shades are finished with an anti-static layer, allowing commercial maintenance crews to handle cleanings quickly using simple dry microfiber clothes.

Manufacturing Capability & Boundary Specifications

B2B PURCHASING POLICY: The parameters displayed below reflect our baseline historical manufacturing capabilities. To guarantee strict confidentiality for third-party proprietary designs and defend specialized manufacturing tooling, micro-engineering hardware details and internal screw positions are completely omitted. All values are Reference Only and remain 100% customizable.

Material & Parameter Field	Baseline Custom Reference Case Study	B2B Customization Elasticity
Max Outer Envelope Profile	Triple-Ring Reference Proportions: Max Envelope Width: 650 mm (25.6″) \| Total Low-Profile Ceiling Projection: 300 mm (11.8″) Central Ceiling Base: Ø 220 mm – 260 mm (Reference Profile Only)	Fully Scalable. The external envelope bounds, ring lengths, and cross-axis orientations can be customized to match any design schedule.
Structural Frame Metallurgy	Heavy-Gauge Cold-Rolled Carbon Steel Tubing & High-Density Mounting Tracks \| Profile Wall Thickness: 1.2 mm – 1.5 mm	Can be modified to solid H65 architectural brass sheets, structural weight-saving aluminum profiles, or anti-oxidation stainless steel tubes.
Surface Coating & Finish Solutions	Multi-Pass Chemical-Cleaned Electroplated Brushed Gold Finish (Chrysalis Series Standard Finish)	Completely open to alternative finishes: Satin Brushed Nickel, Polished Chrome, Matte Black, Matte White, PVD Mirror Coatings, or custom Pantone color matches.
Optics & Diffusion Lens	High-Transmittance Co-Extruded Matte White Acrylic Shade \| UV-Stabilized Anti-Yellowing Compound Optimized for Uniform Light Diffusion	Can be alternatively engineered with specialized frosted borosilicate glass elements or custom geometric crystal glass tracks.
Integrated Electronic Light Engine	Solid-State High-Output Linear LED Strip Segments \| System Power Consumption: 48W – 60W \| Color Rendering Index (CRI) ≥ 90	Customizable factory Kelvin paths: 2700K, 3000K, 3500K, 4000K, or 5000K. Full compatibility with global Triac, 0-10V, or DALI drivers.
Global Wiring & Safe Certification	Factory insulated and dielectric-tested to meet full global CE and RoHS regulatory directives	Internal electronics and isolation insulation can be upgraded during final layout assembly to pass official UL, cUL, SAA, or PSE localized testing.

Looking to alter the ring loops, adjust the brushed hardware tint, or adapt internal LED dimming topologies for a localized commercial hospitality rollout? Smile Lighting brings 20+ years of contract high-end manufacturing directly to your layout files.

Additional

Material	Acrylic, Brass, Bronze, Metal, Steel
Room	Bar, Bedroom, Cloak Room, Closet, Dining Room, Dressing Room, Entryway/Hallway, Home Office/Study
Style	Art Decon, Contemporary, Industrial, Modern, Transitional

0.0 Average Rating Rated (0)

Rated

Be the first to review “The Chrysalis Multi-Axis Interlocking LED Flush Mount” Cancel reply

Global Compliance & Support

Geographical & Climate Adaptation

To accommodate local natural environments and maintain effortless maintenance, we engineer hardware substrates accordingly. For humid or coastal geographical regions prone to high salinity and moisture, standard metals can be upgraded to marine-grade stainless steel or premium solid brass alloys treated with multi-layered anti-oxidation clear finishes. For arid or dust-prone environments, structural components are mechanically balanced to prevent excessive dust accumulation.

Global Electrical Regulatory Compliance

Operating as an international OEM/ODM provider, Smile Lighting adapts internal circuitry, lampholders, plugs, and switches to satisfy the regulatory frameworks of your specific market destination:

North American Region: Integrated with UL / cUL certified wire paths, localized plugs/switches, and lamp-sockets (110V-120V).
European & UK Region: Structured in alignment with CE, UKCA, and RoHS parameters (220V-240V).
Oceania Region: Wired to strictly match SAA and RCM standards with certified insulation components.

We routinely collaborate with global verification laboratories to assist our commercial buyers in securing official product batch certifications necessary for customs clearance.

Batch-Specific Bespoke Technical Documentation

Because our factory focuses strictly on production and does not supply field installation technicians, we safeguard your local execution. Since every bulk commercial order involves custom dimensions or specialized mounting bases, a generic pre-printed manual is never used. For each validated commercial run, our engineering division provides a Highly Tailored Installation Blueprint specific to your finalized configuration, mapping out mechanical layouts and internal wire architecture for seamless, safe deployment by certified local electrical contractors.

IP PROTECTION POLICY

Intellectual Property (IP) Protection & Security Standards

For over two decades, Smile Lighting Co., Ltd. has prioritized IP protection as the core foundation of our international B2B client relations. We recognize that custom design iterations and custom scale modifications represent your brand's proprietary market equity.

1. Purpose of Online Profiles

The products displayed on our corporate portal comprise solely of legacy configurations manufactured in the past, generic open-market models, or designs with expired exclusivity agreements. They serve strictly as physical manufacturing benchmarks to demonstrate our electroplating consistency, structural balancing, and crystal dressing alignment.

2. Absolute Seclusion of Custom OEM/ODM Files

When you submit proprietary architectural layouts or conceptual drawings to our R&D center for analysis, all assets are instantly sequestered within our isolated offline database server. Your designs are never published online, never shown to other buyers, and never cross-utilized. We support and mandate legally binding Non-Disclosure Agreements (NDA) prior to any engineering data transfer.

3. Active Anti-Cloning Measures

We strictly do not provide downloadable public DWG / CAD production drawings or individual raw component dimension lists on our web platform. This firewall protects the technical integrity and configuration exclusivity that our active B2B contract clients invest in, mitigating market copycat risks.
