Description
Sonata Ellipse Pendant 4-Light Customizable Brass Linear Chandelier
The Sonata Ellipse Pendant Chandelier redefines architectural linear lighting through fluid orbital geometry. Featuring interlocking elliptical brass bands that hover gracefully around a central 4-light linear spine, this fixture creates dynamic spatial depth and balanced ambient illumination. Designed specifically as a contract manufacturing reference blueprint for commercial specifiers, luxury residential interior designers, and global lighting OEMs, all spatial envelope parameters—including chassis length, ring orientation, socket counts, suspension cable drops, and metallic finishes—are 100% fully customizable.

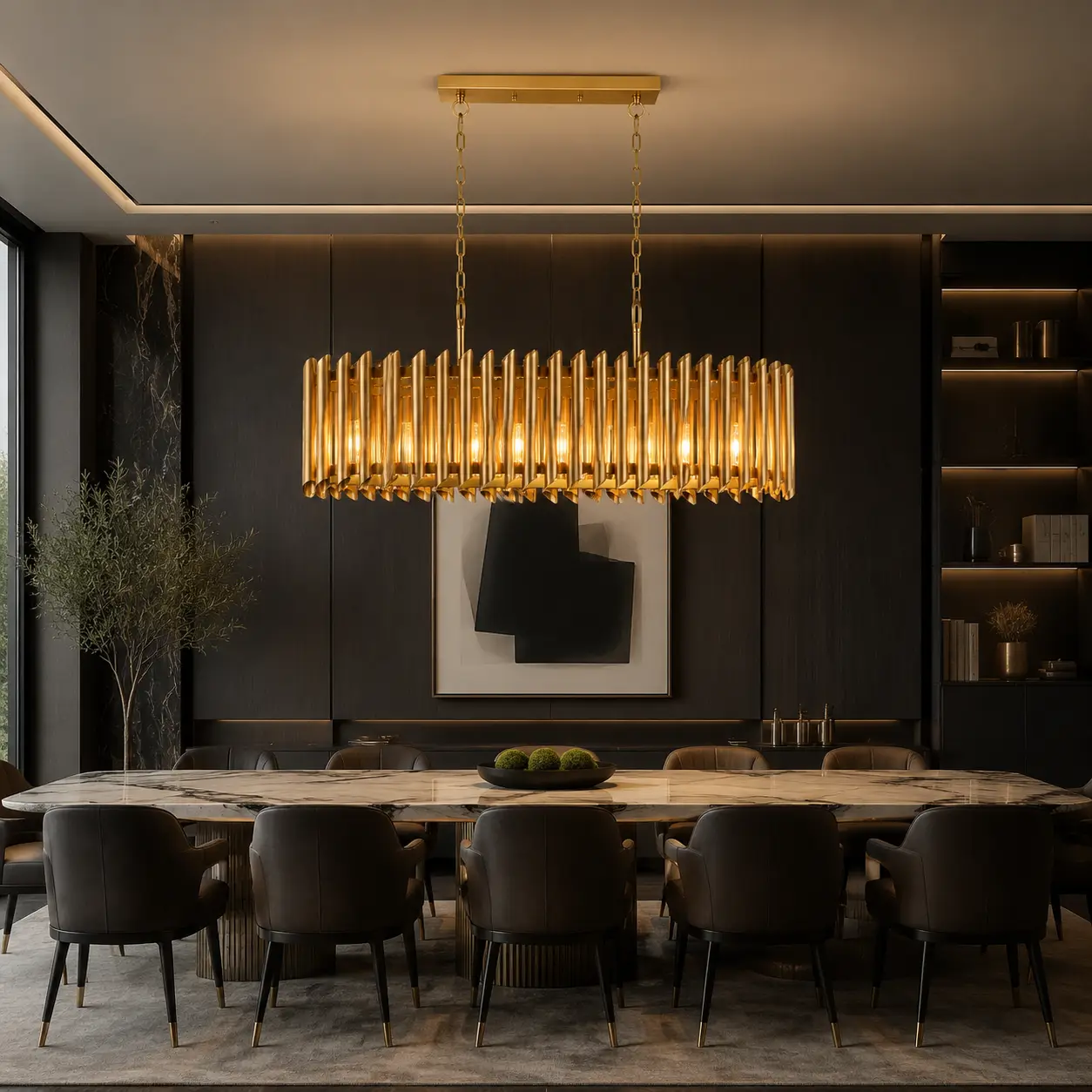

Context 01 Modern Luxury Executive Dining & BoardroomsSuspended over long marble dining tables or executive boardrooms. The hand-brushed brass warm tones soften monochromatic architectural lines, while the dual elliptical bands break rigid rectangular spaces into fluid, kinetic visual focal points. | Context 02 Transitional Kitchen Islands & Hospitality SpacesAnchoring multi-functional kitchen islands or boutique hotel receptions. The 360-degree open-frame design provides unobstructed line-of-sight across open-concept layouts while delivering glare-free task and ambient illumination. |
Envelope Dimensions & Technical Specifications
SPECIFICATION DISCLAIMER: The baseline figures below represent maximum overall spatial envelope boundaries for headroom clearance, table proportion planning, and ceiling load evaluation. Internal hinge fasteners, wiring harness conduits, and transformer canopy mounts are intentionally omitted. As an OEM/ODM manufacturing partner, chassis length, ring diameters, socket counts, suspension drops, and finishes are 100% fully customizable.
| Specification Axis | Standard Baseline (Reference Only) | OEM / ODM Customization Options |
|---|---|---|
| Envelope Outer Dimensions | Chassis Length: 1200 mm | Ellipse Outer Major Axis: 550 mm | Frame Body Height: 420 mm | Rectangular Canopy: 600 × 110 × 35 mm | Scalable linear lengths (900 mm to 2400 mm+); 4-light, 6-light, or 8-light linear configurations; adjustable ring pivot angles |
| Suspension & Drop Range | Min Drop Height: 550 mm | Max Drop Height: 2000 mm (Includes Adjustable Aircraft Suspension Wire & Power Cord Kit) | Custom extension rods, high-tensile stainless steel suspension cables, sloped/vaulted ceiling swivel adapters |
| Materials & Framework | Precision Cold-Drawn Solid Brass Elliptical Bands + CNC Machined Central Light Spine | 304/316 Stainless Steel (for high-humidity coastal zones); optional frosted acrylic or hand-blown glass diffuser cylinders |
| Illumination & Socket System | 4× E26 / E27 Medium Base Sockets (Max 60W per socket / Filament LED T-Style Bulbs Recommended) | G9 / GU10 pin sockets; integrated high-CRI linear LED strips (2700K-5000K); 0-10V, Triac, Phase, or DALI dimming system support |
| Finishes & Surface Treatment | Hand-Brushed Aged Brass with Anti-Fingerprint & Anti-Oxidative Clear Seal Lacquer | Polished Brass, Matte Black, Satin Nickel, Electroplated Gold, Weathered Bronze, or dual-tone frame finish contrasts |
| Safety & Compliance | Universal AC 110V-240V | Class I Grounded Electrical Wiring | Flame-Retardant Insulated Conductors | Pre-wired and structurally tested to meet UL/cUL (North America), CE/CB (Europe), SAA (Australia), and SASO (Middle East) |

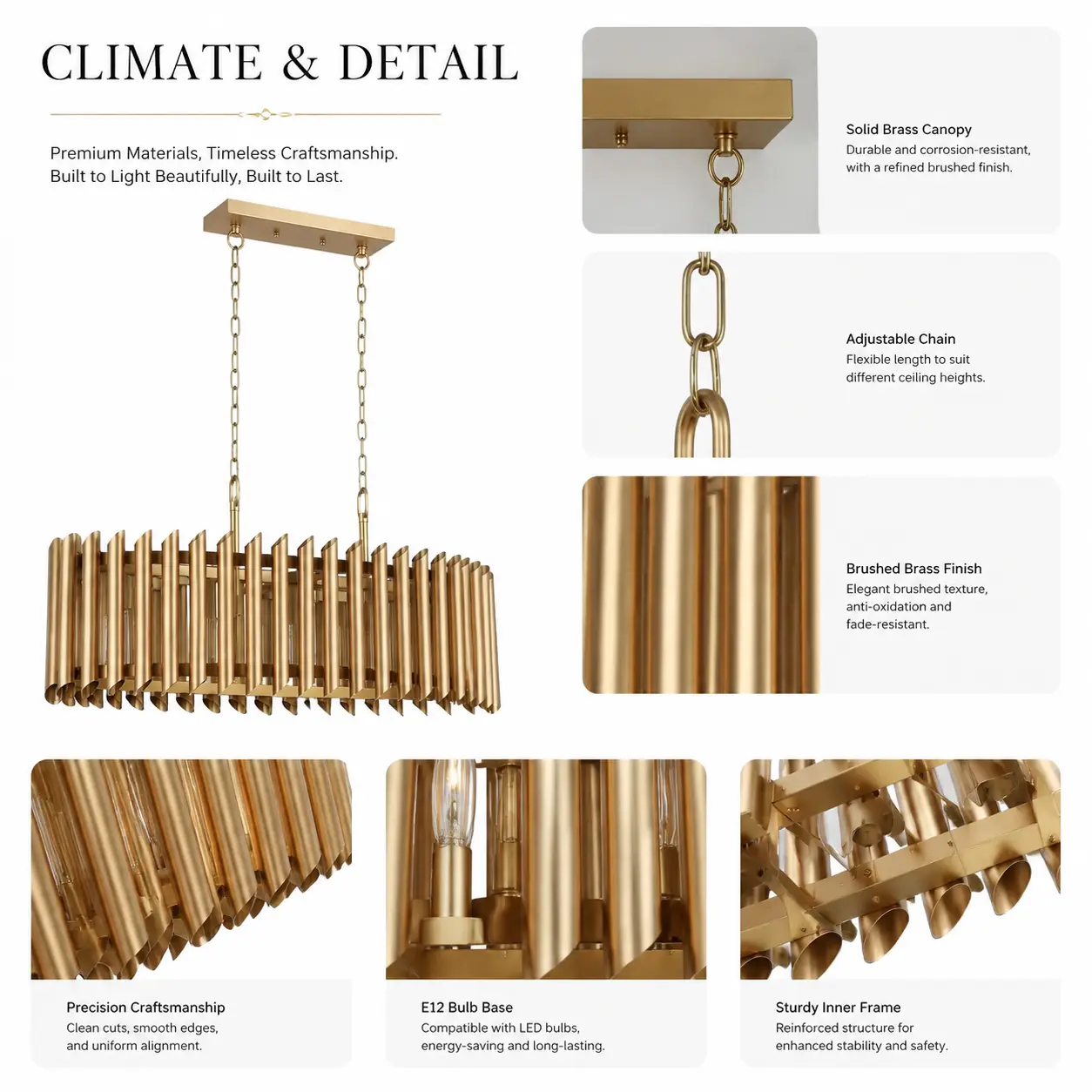

Climate Resilience & Maintenance Ergonomics
Coating Protection Multi-Layer Brushed Brass Protection & Anti-Tarnish SealRaw brass structures in humid coastal properties or high-moisture dining environments can develop patchy oxidation and tarnishing. The Sonata Ellipse bands undergo multi-stage ultrasonic degreasing, hand-brushing, and a high-temp baked clear lacquer coat. For oceanfront resorts, optional 304 or 316 stainless steel with PVD brass plating ensures 100% corrosion isolation. | Commercial Ergonomics Open Orbital Geometry for Fast Facility MaintenanceEnclosed glass globes in high-traffic commercial spaces accumulate airborne dust grease, requiring tedious disassembly. The open elliptical framework of the Sonata Linear Chandelier avoids dust collection traps, allowing facility maintenance crews to carry out swift microfiber cleaning and direct bulb access without disturbing any structural mountings. |
Smile Lighting Co., Ltd.
The Sonata Ellipse Pendant 4-Light in Satin Brass is a refined exercise in “Geometric Fluidity,” utilizing a rhythmic, pipe-inspired perimeter to transform a traditional linear form into a piece of contemporary architectural art. While it shares the “Pan Flute” aesthetic of the Opus and Cantata models, the Sonata introduces an elliptical curve that softens its profile, making it a more approachable choice for residential luxury.
From an aesthetics and interior design perspective, here is a professional commentary:
1. Aesthetic Composition: The Elliptical Rhythm
The defining visual characteristic of the Sonata is the serrated, rhythmic texture of its frame.
Angled Pipe Motif: The perimeter is composed of vertical brass tubes with precise, angled cuts at the top and bottom. This creates a “toothed” or serrated edge that adds significant visual energy and a handcrafted feel to the fixture.
The Ellipse Silhouette: Unlike the sharp corners of the Cantata Linear, the Sonata utilizes an “obround” or elliptical shape. This curvature allows the fixture to feel less rigid, making it easier to integrate into rooms with softer architectural lines.
2. Materiality: The Elegance of Satin Brass
Sophisticated Luster: The Satin Brass finish provides a smooth, matte-metallic glow. It avoids the harshness of high-polish finishes, offering a “quiet luxury” that complements modern interior palettes including charcoals, creams, and natural wood tones.
Internal Reflectivity: The interior of the brass tubes acts as a series of individual reflectors. When the 4 lights are active, the metallic surfaces catch the glow, creating a shimmering effect that highlights the depth and dimensionality of the pipe-fringe design.
3. Lighting Dynamics: Diffused Volumetric Glow
Internalized Illumination: The 4 light sources are nestled within the brass pipe shell, ensuring that the light is primarily directed downward and upward. This creates a high-contrast lighting effect that defines the space beneath it without causing direct eye glare.
Linear Dispersion: Despite its elliptical shape, the fixture maintains a linear orientation. This ensures an even “wash” of light across long surfaces, making it a functional choice for task-oriented areas like dining or food preparation.
4. Ideal Interior Applications
Kitchen Islands & Breakfast Bars: Its elongated 4-light design is perfectly proportioned for standard-sized kitchen islands, providing a sophisticated focal point that feels more substantial than individual small pendants.
Residential Dining Rooms: The “Serrat” pipe design offers a musical, artistic quality that is ideal for intimate dining settings where the fixture serves as a conversation piece.
Luxury Office Suites: The disciplined, geometric nature of the brass tubes provides a professional yet upscale atmosphere, making it a fitting choice for high-end B2B commercial office designs.
5. Stylistic Versatility
Modern Art Deco: The repetitive verticality and brass finish are signature elements of the Art Deco revival, making the Sonata a perfect fit for “Glam Modern” or “Old Hollywood” interior schemes.
Contemporary Architectural: Its clean lines and engineered look appeal to designers who favor “Form-as-Function,” where the beauty of the object comes from its mathematical repetition.
Transitional Luxe: Because it uses a classic material (brass) in a modern form (serrated ellipse), it can bridge the gap between traditional and contemporary decor styles with ease.
Summary
The Sonata Ellipse Pendant is a “sculpture of light and metal.” It is an ideal selection for clients who want the architectural weight of a large linear fixture but with the softened edges and complex textures of a modern designer piece.
