Description
Architectural Harmony
Pure Ring Geometry & Architectural Ambient Luminescence

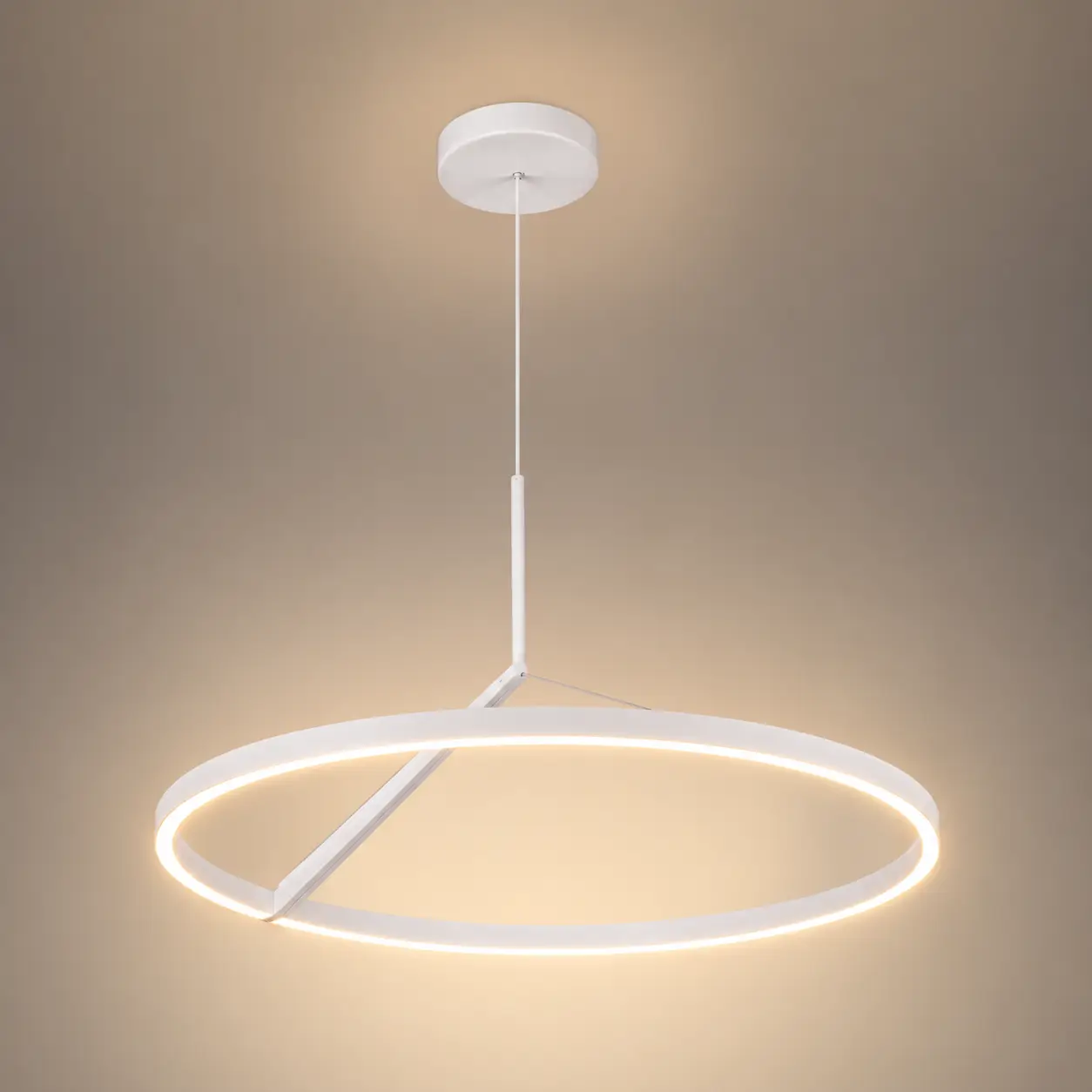

The Lunexa LED Pendant embodies minimalist precision with its seamless circular extruded aluminum profile finished in a durable matte powder-coated white. Designed as an OEM/ODM baseline for high-end residential and commercial projects, its continuous 360-degree diffusion layer delivers uniform, glare-free illumination while maintaining a light, floating aesthetic. Through our specialized contract manufacturing capabilities, ring diameters, color temperatures, dimming protocols, and powder-coat finishes can be custom-engineered to seamlessly fulfill bespoke architectural schematics.

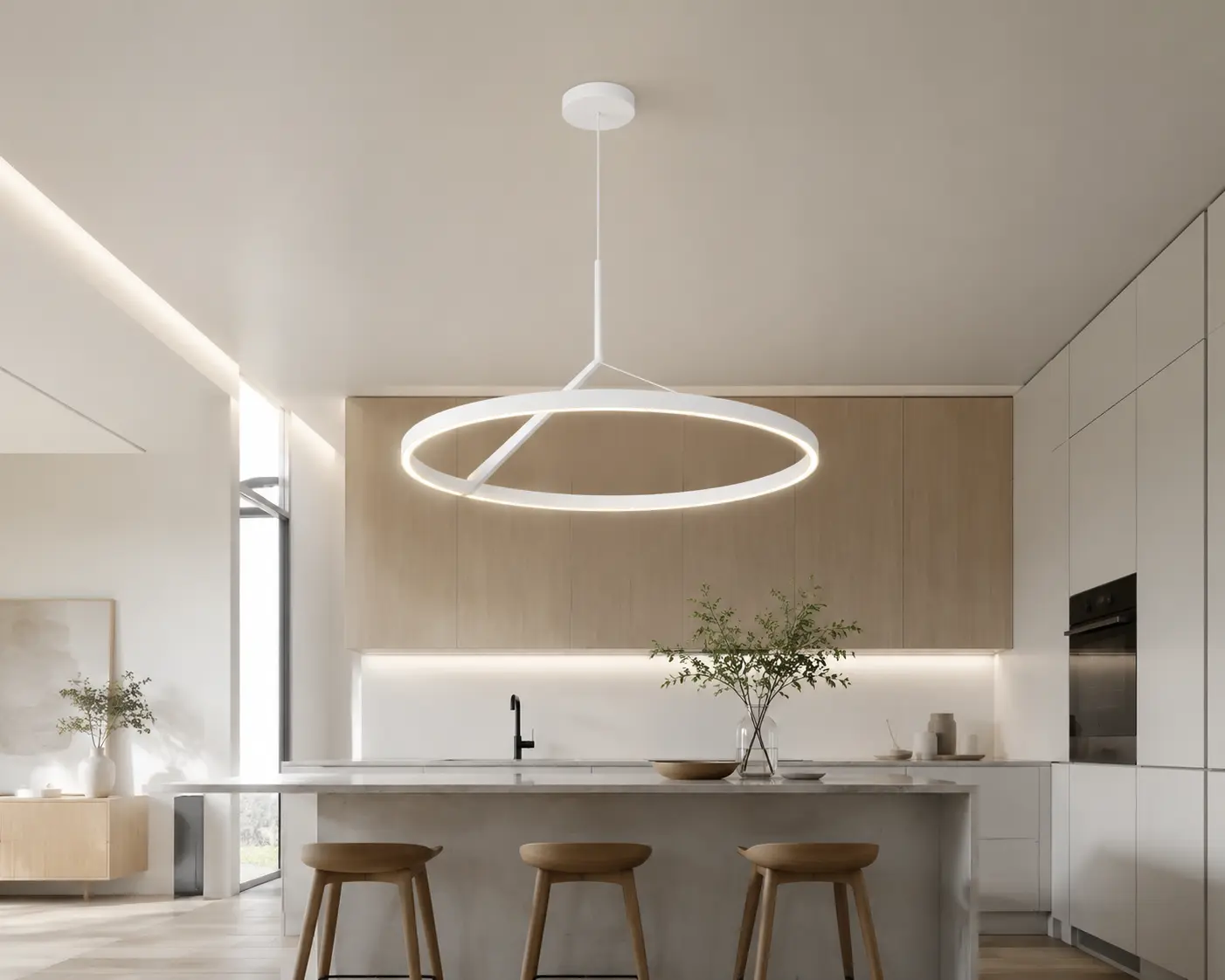

Context 01
Modern Minimalist & Nordic Residential Spaces
Suspended above a monolithic kitchen island or circular dining table. The pristine matte white profile blends effortlessly into clean architectural surfaces, light oak accents, and soft neutral palettes, serving as an ethereal halo without disrupting open sightlines.

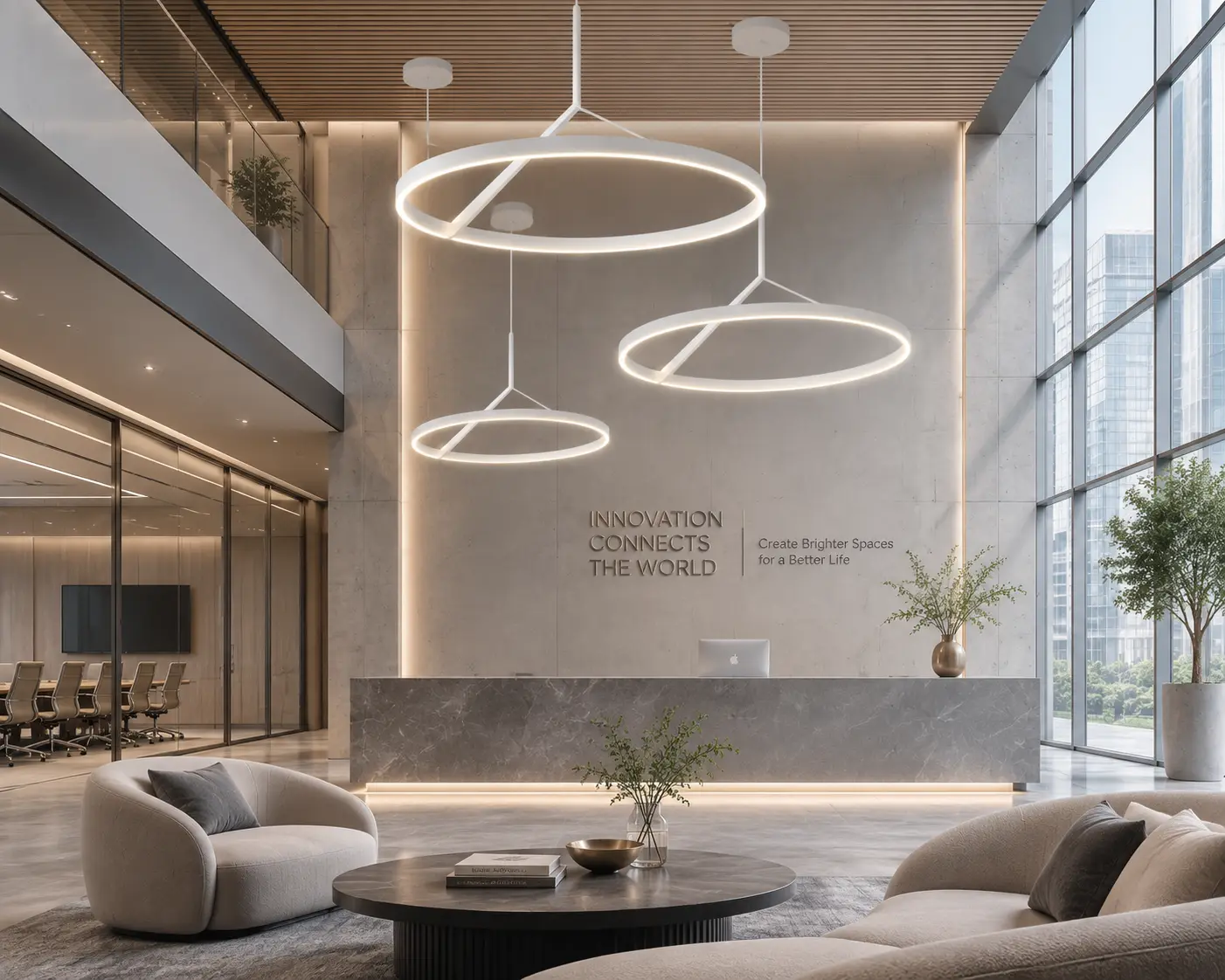

Context 02

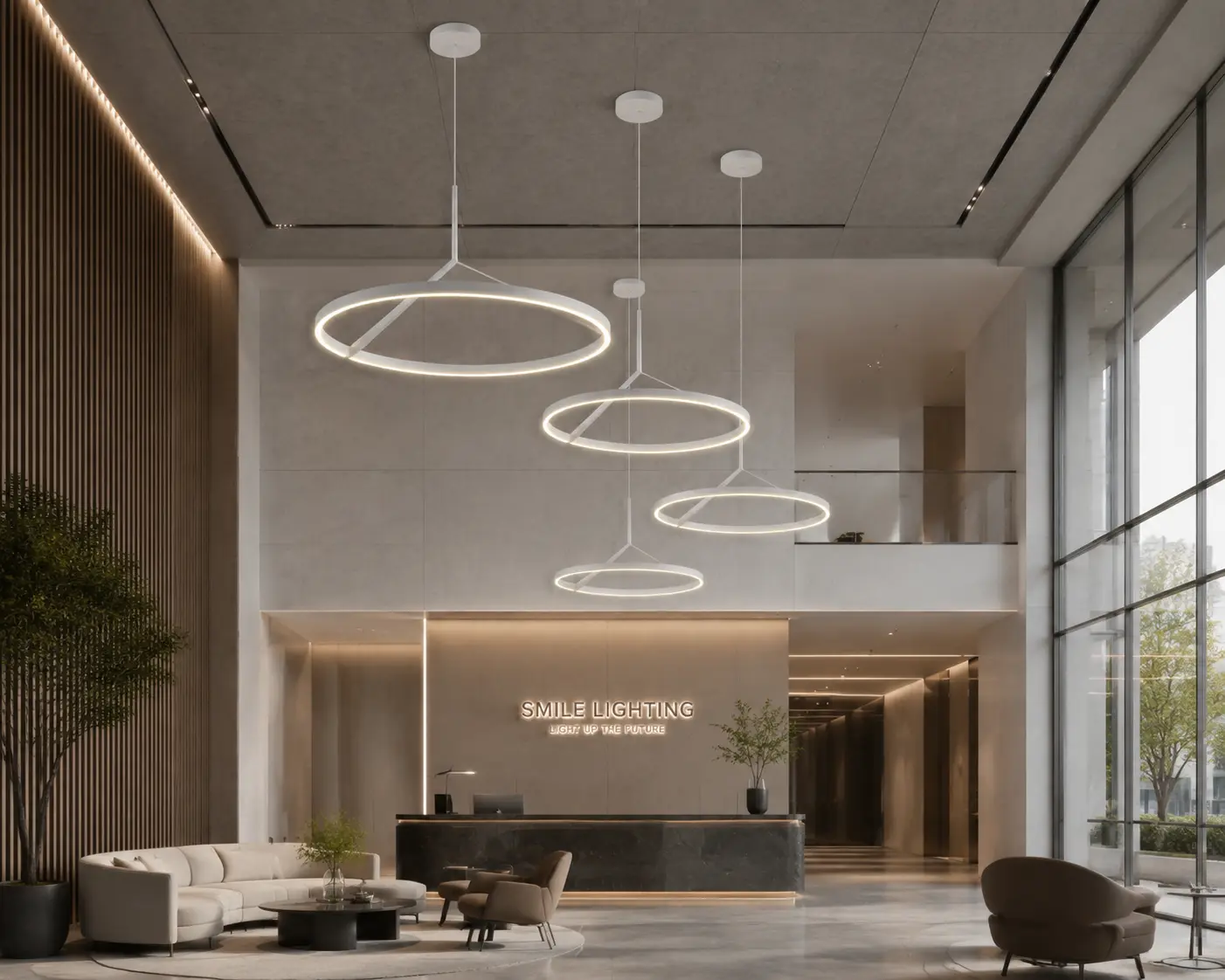

Executive Boardrooms & Hospitality Lobbies
Arranged individually or in multi-ring staggered clusters in double-height atrium lobbies, reception zones, or modern boardrooms. The clean ring silhouette adds dynamic sculptural rhythm to exposed concrete, acoustic felt ceiling systems, and glass curtain walls.
Engineering Reference Blueprint
Envelope Dimensions & Technical Specifications
SPECIFICATION DISCLAIMER: Data below reflects our standard baseline model and does not disclose internal micro-component specifications, LED driver circuit topologies, or proprietary die-extrusion tolerances. As an OEM/ODM contract manufacturer, all spatial envelope diameters, profile cross-section depths, suspension cable drop ranges, powder-coat finishes, and control system integrations are 100% customizable according to project blueprints or regional market standard requirements.
| Specification Axis | Standard Baseline (Reference Only) | OEM / ODM Customization Options |
|---|---|---|
| Overall Fixture Envelope | Outer Ring Diameter: Ø 800 mm | Ring Profile: 40 mm (W) × 50 mm (H) | Scalable outer diameters from Ø 600 mm to Ø 3000 mm+; custom oval/nested multi-ring configurations |
| Suspension Height Boundary | Min Drop: 400 mm | Max Drop: 2500 mm (Aircraft Steel Cable Suspension) | Custom suspension cable lengths up to 5000 mm; powered cable suspension (no canopy power cord option) |
| Core Structural Material | Precision Curved Extruded Aircraft Aluminum Housing with Heat Dissipation Fin Channel | High-density aluminum alloy or stainless steel core for ultra-large diameter stability |
| Diffuser & Light Engine | Seamless PMMA Opal Diffuser | High-CRI LED PCB (CRI > 90, 3000K Warm White) | CCT Switchable (2700K–6000K), Micro-Prismatic low-glare diffuser (UGR < 19), or RGBW smart engines |
| Surface Finish & Coating | Architectural Electrostatic Powder-Coated Fine Matte White (RAL 9016) | Matte Black, Brushed Anodized Brass, Anodized Bronze, Custom RAL Color Matching, Metallic Electroplating |
| Driver & Dimming Protocol | Integrated Constant Current Driver | Triac / Phase Dimmable (Universal Input 100-277V) | DALI-2, 0-10V, Bluetooth Mesh / Zigbee Smart Dimming, Emergency Battery Backup driver integration |

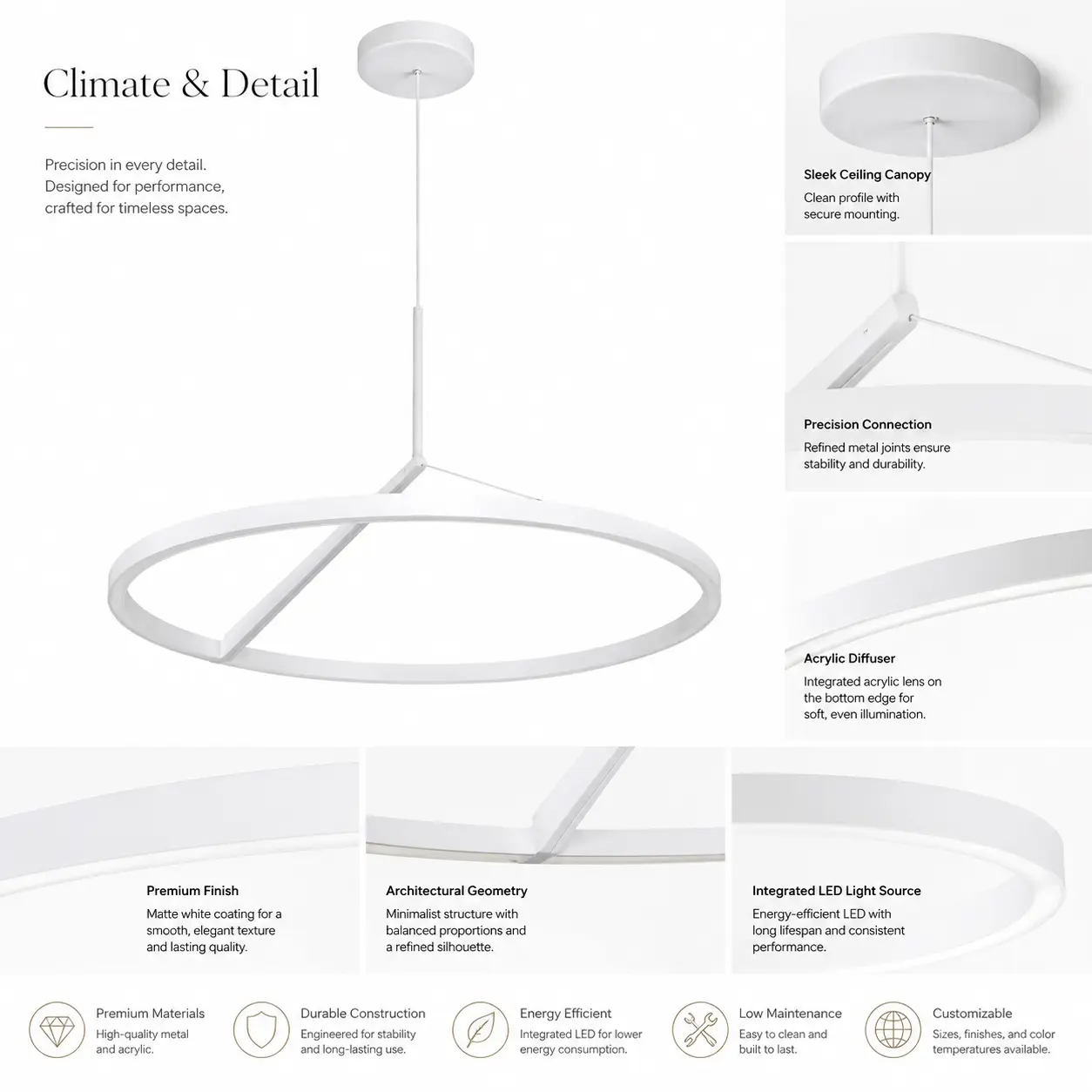

Product Longevity
Climate Resilience & Maintenance Solutions
Humid & Coastal Surface Protection
To ensure long-term color fidelity and corrosion resistance in humid or tropical regions, the aluminum housing undergoes a multi-stage pre-treatment wash followed by high-bake thermosetting electrostatic powder coating. This creates a non-yellowing, anti-fingerprint barrier that shields the fixture against humidity-induced oxidation.
Dust-Sealed Profile & Modular Driver Maintenance
Engineered with an IP40 dust-resistant continuous acrylic diffuser lens that prevents insect and dust entry into the optical chamber. The LED power supply is housed in a quick-access ceiling canopy driver kit, allowing facility staff to service electrical components without taking down the main ring structure.
Smile Lighting Co., Ltd.
The Lunexa LED Pendant is a quintessential example of Reductionist Modernism and Weightless Geometry. By utilizing integrated LED technology, it eliminates the need for bulky bulb sockets, resulting in a perfectly balanced, ultra-slim circular profile that appears to float in mid-air.
From an aesthetics and interior design perspective, here is a professional commentary:
1. Aesthetic Composition: The “Ethereal Halo”
The design identity is defined by mathematical precision and visual silence.
Continuous Circular Form: The single, unbroken matte white ring provides a sense of infinity and harmony. Its slim profile ensures that the fixture does not obstruct sightlines, making it a “transparent” lighting solution that defines a space without physically crowding it.
Asymmetric Y-Suspension: The three-point cable system converges into a single stem off-center. This intentional asymmetry adds a subtle architectural tension to the piece, preventing it from feeling like a standard utility light and elevating it to a piece of functional sculpture.
Monochromatic Purity: The uniform matte white finish from the ceiling canopy to the ring itself allows the fixture to blend seamlessly into white ceilings during the day, while appearing as a pure ring of light at night.
2. Materiality: High-Tech Minimalism
Integrated LED Diffuser: The inner perimeter of the ring features a high-quality diffuser that ensures a smooth, continuous glow without “hot spots” or visible individual LEDs. This reflects a commitment to premium B2B manufacturing standards where light quality is as important as the frame.
Lightweight Aluminum Construction: The use of specialized lightweight materials allows for this large-scale diameter to be supported by incredibly thin tension cables, enhancing the “floating” illusion that is highly sought after in contemporary design.
3. Lighting Dynamics: Ambient Architectural Glow
Inner-Directed Illumination: By placing the light source on the inside of the ring, the Lunexa provides soft, indirect ambient light that fills the center of the circle before radiating outward. This reduces glare and creates a comfortable, high-end atmosphere.
360-Degree Uniformity: The light is cast evenly in all directions within the horizontal plane, making it an excellent tool for designers to eliminate dark corners in large rooms.
4. Ideal Interior Applications
Minimalist Dining Zones: The circular shape is the ideal companion for round or square dining tables, echoing the furniture’s geometry and creating a focused “zone of light” for social interaction.
Modern Boardrooms & Creative Studios: For OEM/B2B projects, the Lunexa offers a professional, tech-forward aesthetic that communicates innovation and clarity in a workspace.
Open-Concept Lofts: In large, airy spaces with high ceilings, several Lunexa pendants hung at varying heights can create a “celestial” installation that fills the vertical volume without the visual weight of a traditional chandelier.
5. Stylistic Versatility
Futuristic/High-Tech: Its sleek, button-free appearance aligns perfectly with smart homes and modern office environments.
Scandinavian/Japandi: The matte white finish and simple circular form complement the “warm minimalism” of Nordic and Japanese-inspired interiors.
Summary
The Lunexa LED Pendant is a “sculptural ring of light.” For your wholesale and project-based clients, this model is a top-tier recommendation because it provides high-impact architectural scale with a zero-bulk footprint, making it the perfect “final touch” for any contemporary interior that prioritizes light over hardware.
