Description
Spatial Contexts & Aesthetic Adaptability
The LumoFrame 5-Ring LED Pendant constructs a fluid geometric statement through five independently suspended, precision-extruded aluminum rings. Floating in a staggered, dynamic profile, this fixture acts as a striking modern sculpture by day and an ethereal luminaire by night. Designed exclusively as a high-end OEM/ODM engineering blueprint for commercial hospitality specifiers, interior architecture firms, and international lighting importers, all ring diameters, suspension drop angles, color temperatures, and metallic surface finishes are 100% customizable to suit project-specific requirements.

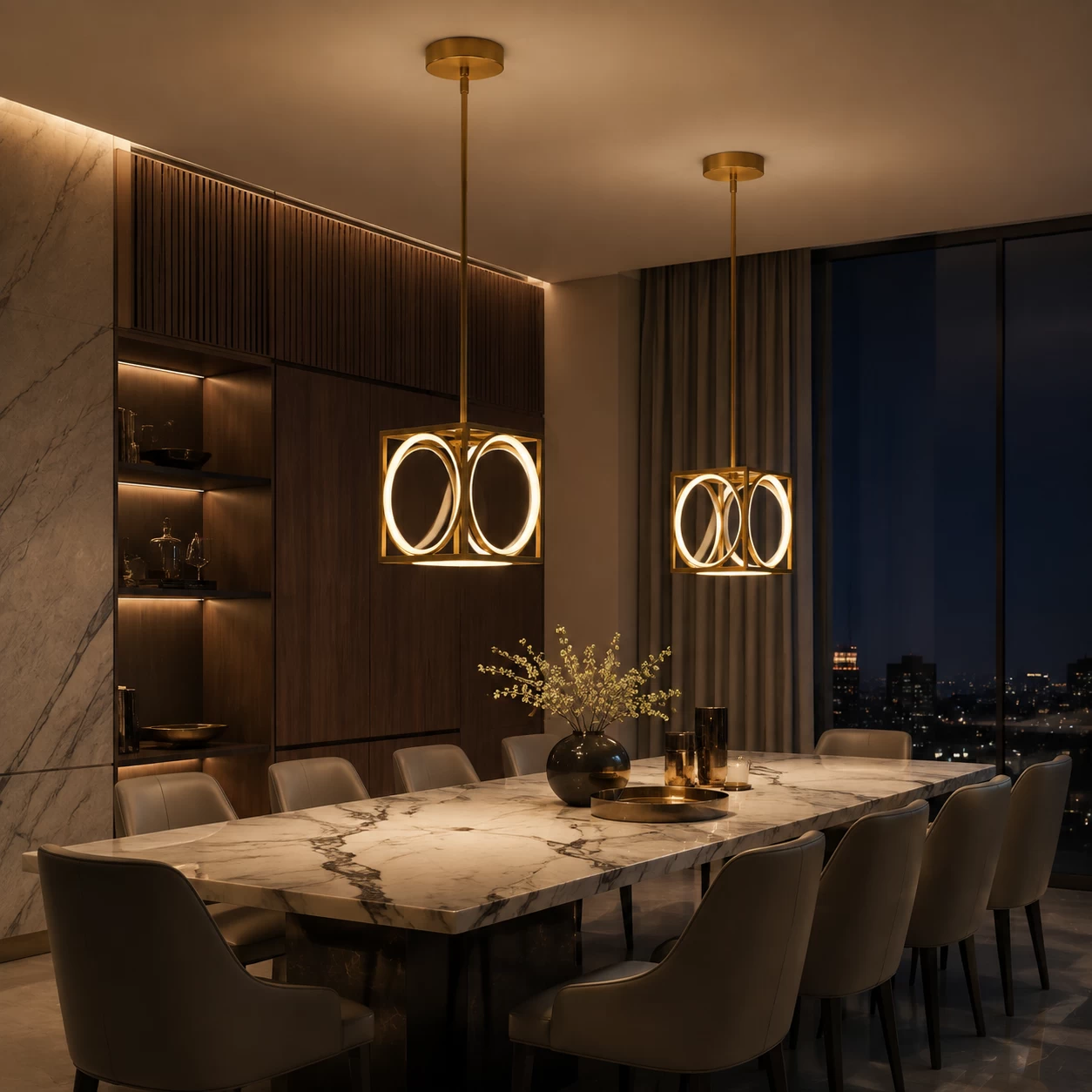

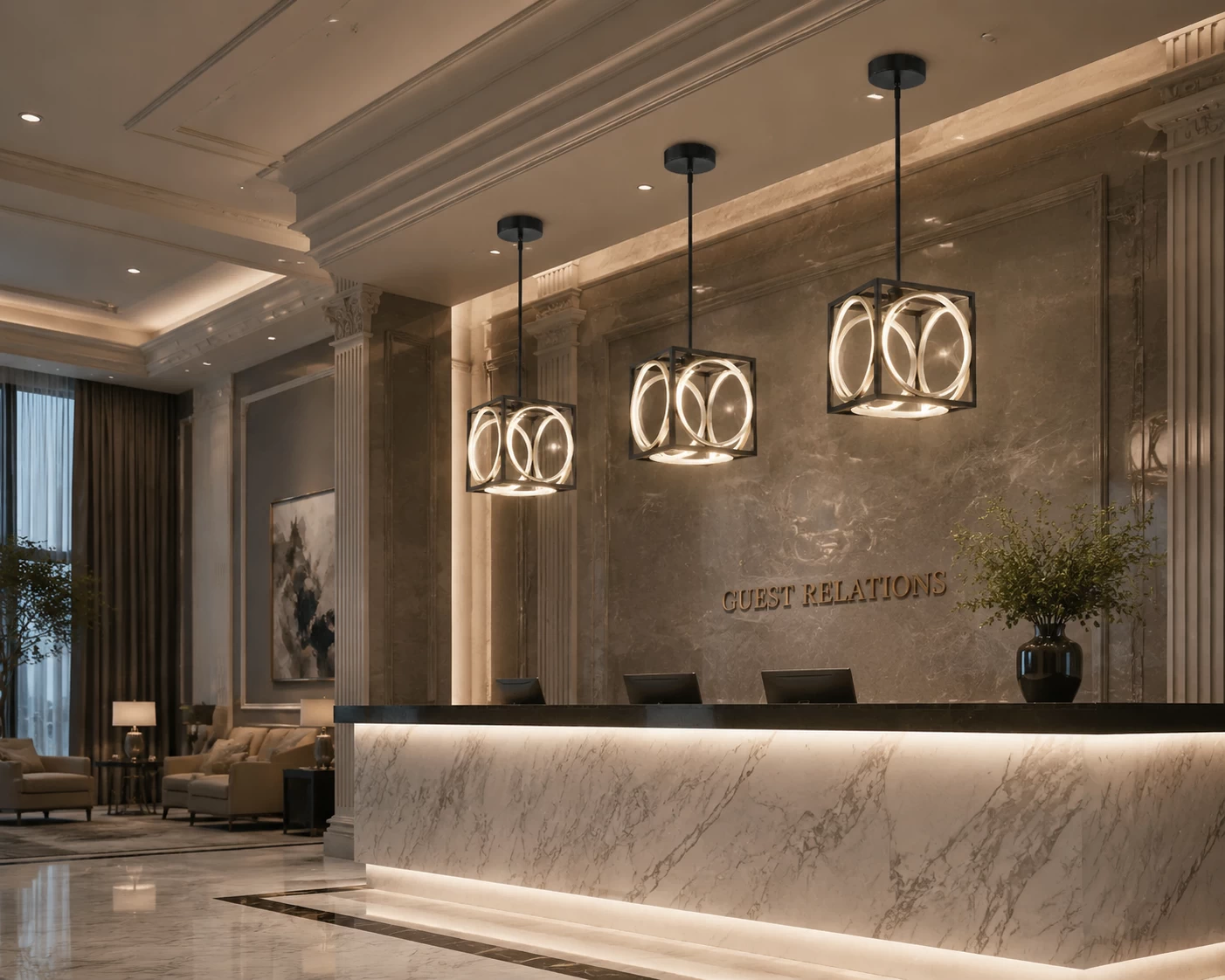

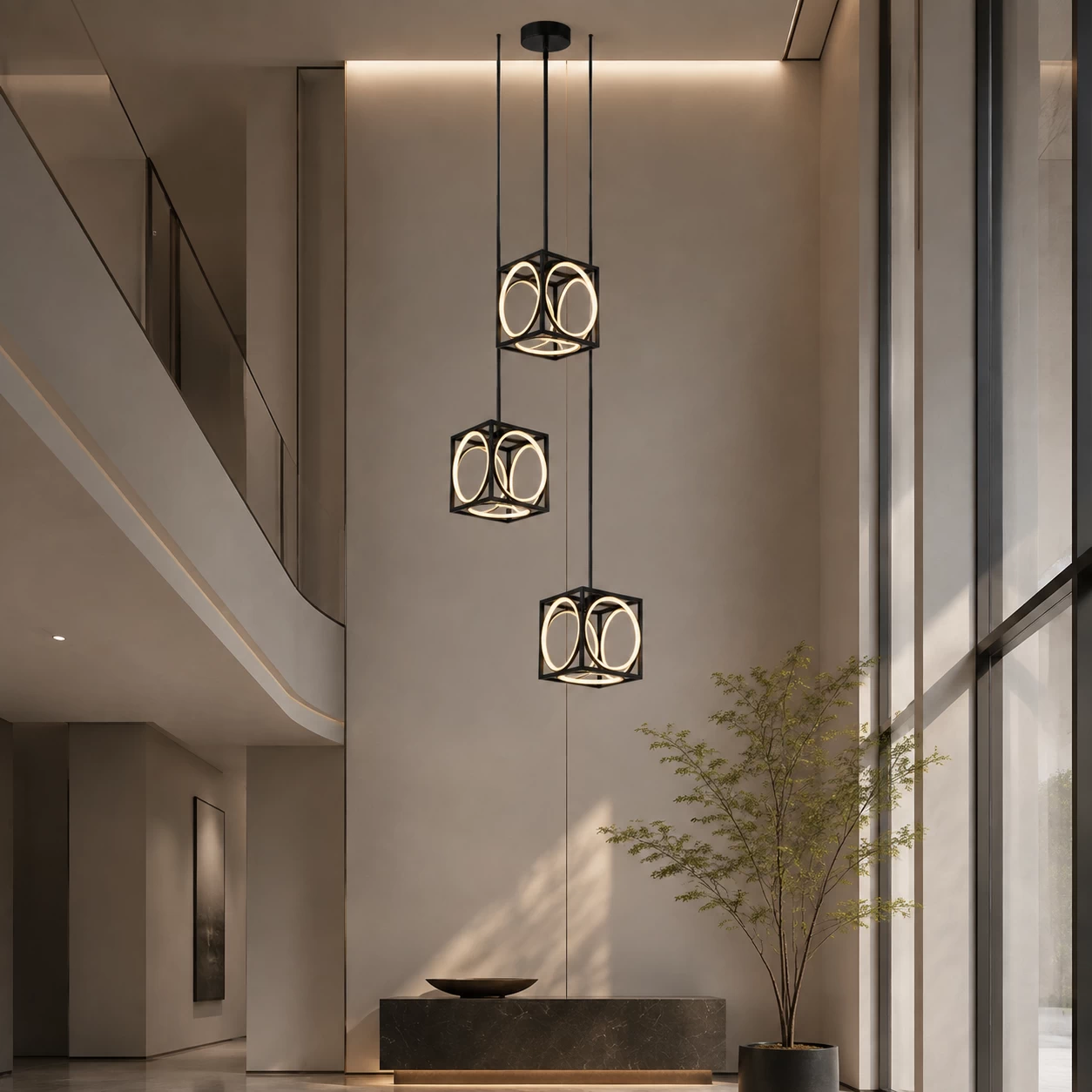

Context 01 Ultra-Minimalist & High-Ceiling AtriumsSuspended within multi-level residential lobbies or open-plan double-height stairwells. Configured with a Matte Anodized Black frame and warm 3000K LED diffusion, the concentric rings emphasize vertical volume while providing glare-free architectural illumination. | Context 02 Modern Luxury & Executive DiningCustomized in an Electroplated Brushed Champagne Gold finish suspended low over long marble dining tables. The metallic sheen complements rich wood veneers, polished stone, and brass accents, delivering sophisticated luxury with soft, inviting light. | Context 03 Boutique Hotels & Corporate ReceptionsEngineered with custom multi-ring tilt angles to echo neoclassical architectural mouldings. The continuous 360-degree acrylic optical band provides uniform illumination across reception counters and VIP lounge areas without visual shadows. |
Envelope Dimensions & Technical Specifications
SPECIFICATION DISCLAIMER: Data below reflects standard baseline outer boundary envelope dimensions for spatial proportion planning and ceiling load assessment. Internal LED PCB layouts, driver thermal management channels, and cable tension locking tolerances are withheld. All overall diameters, ring counts, suspension cables, and finishes are 100% fully customizable.
| Specification Axis | Standard Baseline (Reference Only) | OEM / ODM Customization Options |
|---|---|---|
| Envelope Outer Dimensions | 5-Ring Tiered Diameters: Ø 1000mm / Ø 800mm / Ø 600mm / Ø 400mm / Ø 200mm | Max Outer Envelope Span: Ø 1000 mm | Suspension Cable Height: 1200 mm – 3500 mm (Tool-less Aircraft Cable Adjusters) | Canopy: Ø 300 × H 45 mm | Scalable diameters (Ø 400 mm up to Ø 3000 mm+); custom 3-ring, 7-ring, or nested multi-ring clusters; extended suspension cables for vaulted/sloped ceilings |
| Materials & Optics | Seamless High-Purity Extruded Aluminum Alloy Frame + Optical-Grade Anti-Yellowing Silicone / PMMA Frosted Diffuser Shield | Stainless steel 304/316 structural frame for coastal/high-humidity environments; micro-prismatic anti-glare optical diffusers; crystal trim options |
| Illumination & Electronics | Integrated High-CRI LED Arrays (CRI > 90, R9 > 50) | Total Power: 120W | System Lumen Output: ~9600 lm | CCT: 3000K / 4000K / CCT-Tunable | 2700K to 6500K CCT tuning; RGBW dynamic light engines; commercial dimming driver integration (0-10V, TRIAC, DALI-2, Casambi smart controls) |
| Finishes & Coatings | Matte Anodized Black / Electroplated Brushed Antique Brass / Satin Champagne Gold with Sealed Anti-Fingerprint Clear Topcoat | Polished Chrome; Brushed Nickel; Rose Gold; custom RAL powder coatings; dual-tone finishes (e.g., Black exterior with Gold inner illumination channel) |
| Safety & Compliance | Universal Input Voltage: AC 100V-277V | Built-in Class 2 Constant Current LED Driver | Heavy-Duty Ceiling Structural Anchor Plate | Full factory pre-wiring and certification support for target destination standards: UL/cUL (North America), CE/CB (Europe), SAA (Australia), SASO (Middle East) |

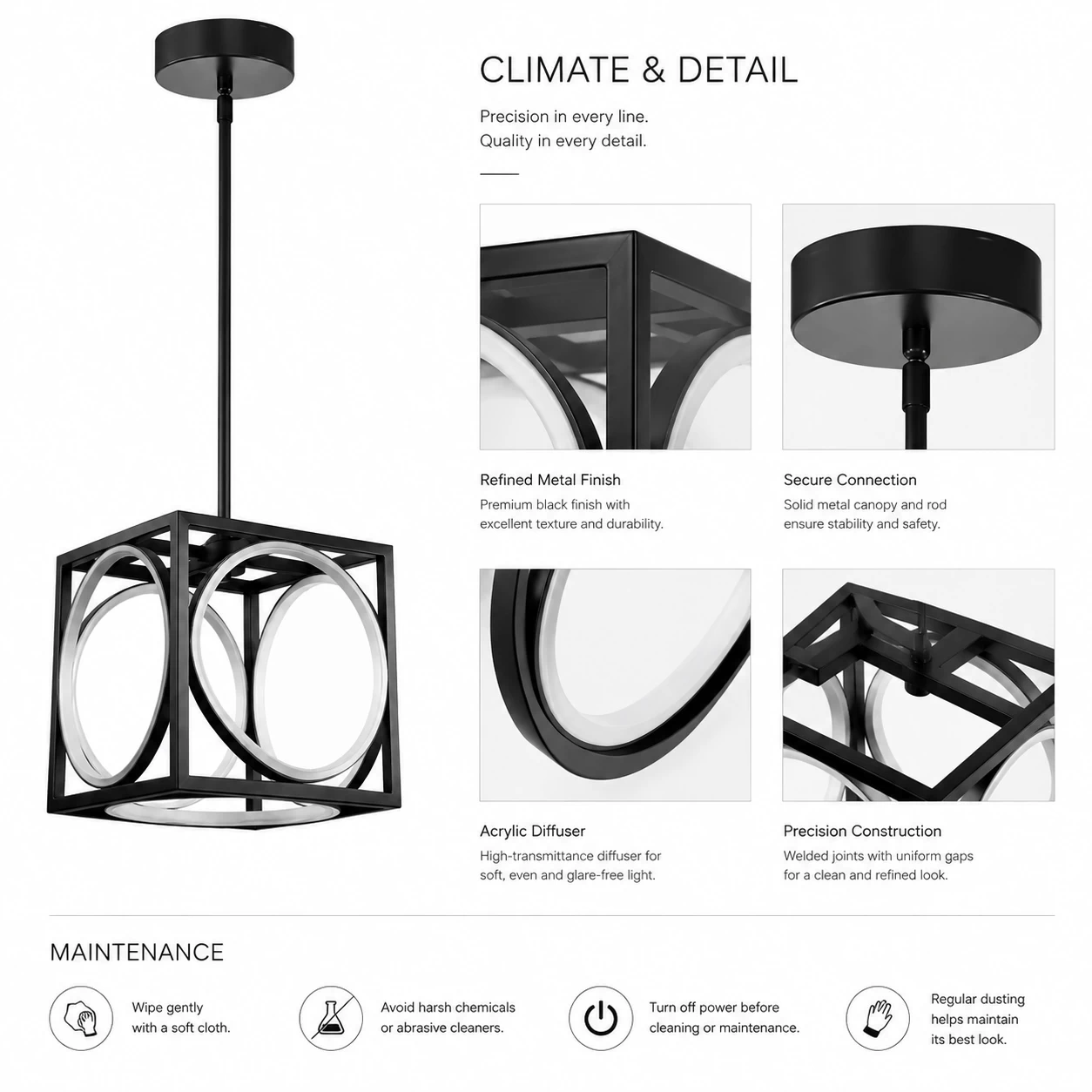

Climate Resilience & Maintenance Ergonomics
Surface Durability Anodized Anti-Corrosion Armor & Coastal CustomizationExtruded aluminum ring profiles are treated with an advanced anodization and organic electrophoretic coating matrix, making them resilient against humidity, salt spray corrosion, and ambient thermal expansion. For high-humidity coastal resorts or tropical environments, we offer optional 304/316 Stainless Steel frame construction and IP44 sealed LED driver enclosures to guarantee long-term operational stability without tarnish or degradation. | Maintenance Ergonomics Anti-Static Silicone Diffusers & Modular Driver AccessEngineered for low maintenance downtime in commercial spaces and high-ceiling lobbies. The seamless optical diffusers feature an anti-static coating that repels dust accumulation, allowing easy cleaning with a dry microfiber cloth. Furthermore, the LED driver module is housed inside an accessible ceiling canopy compartment, enabling quick electrical servicing or driver replacement without requiring fixture demounting. |
Smile Lighting Co., Ltd.

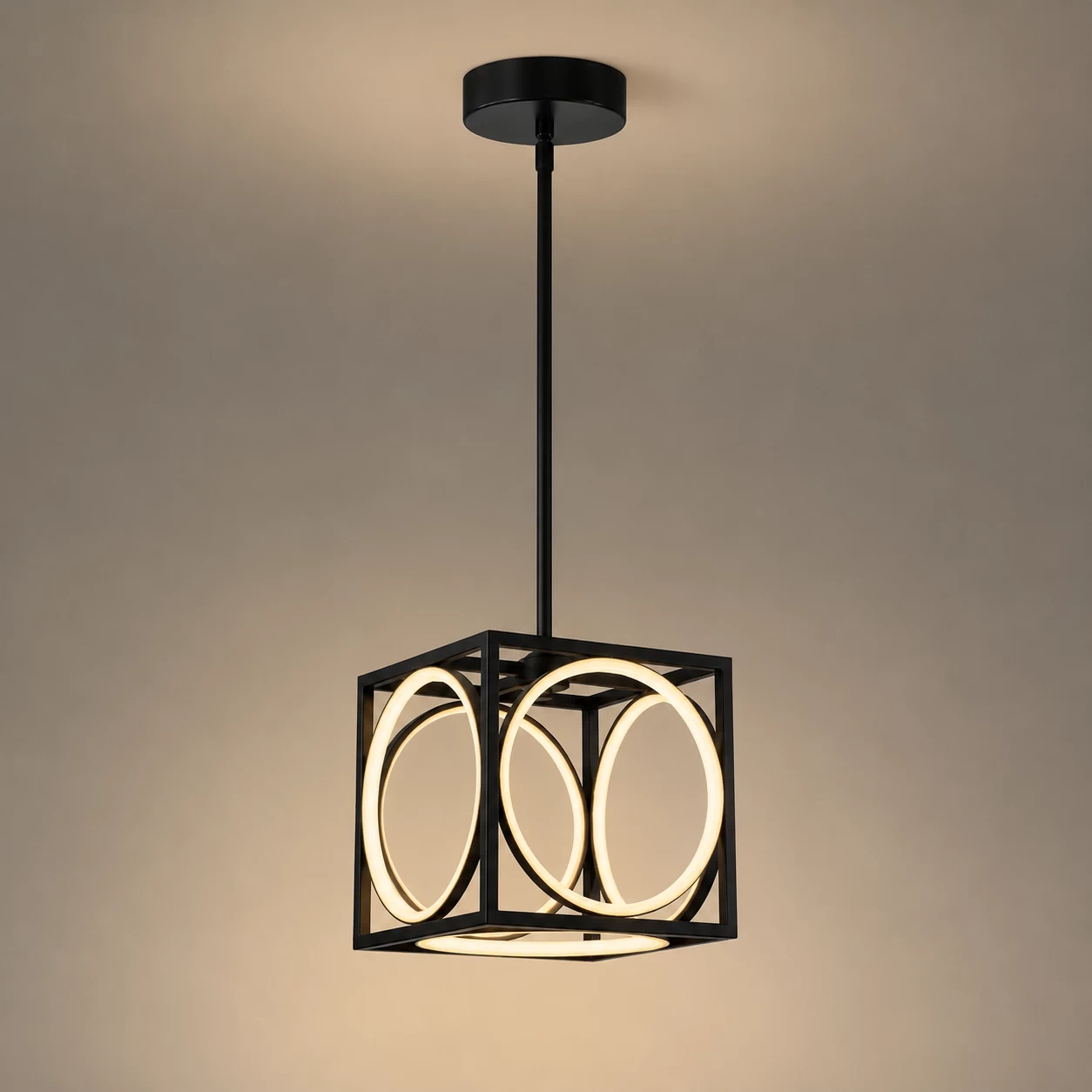

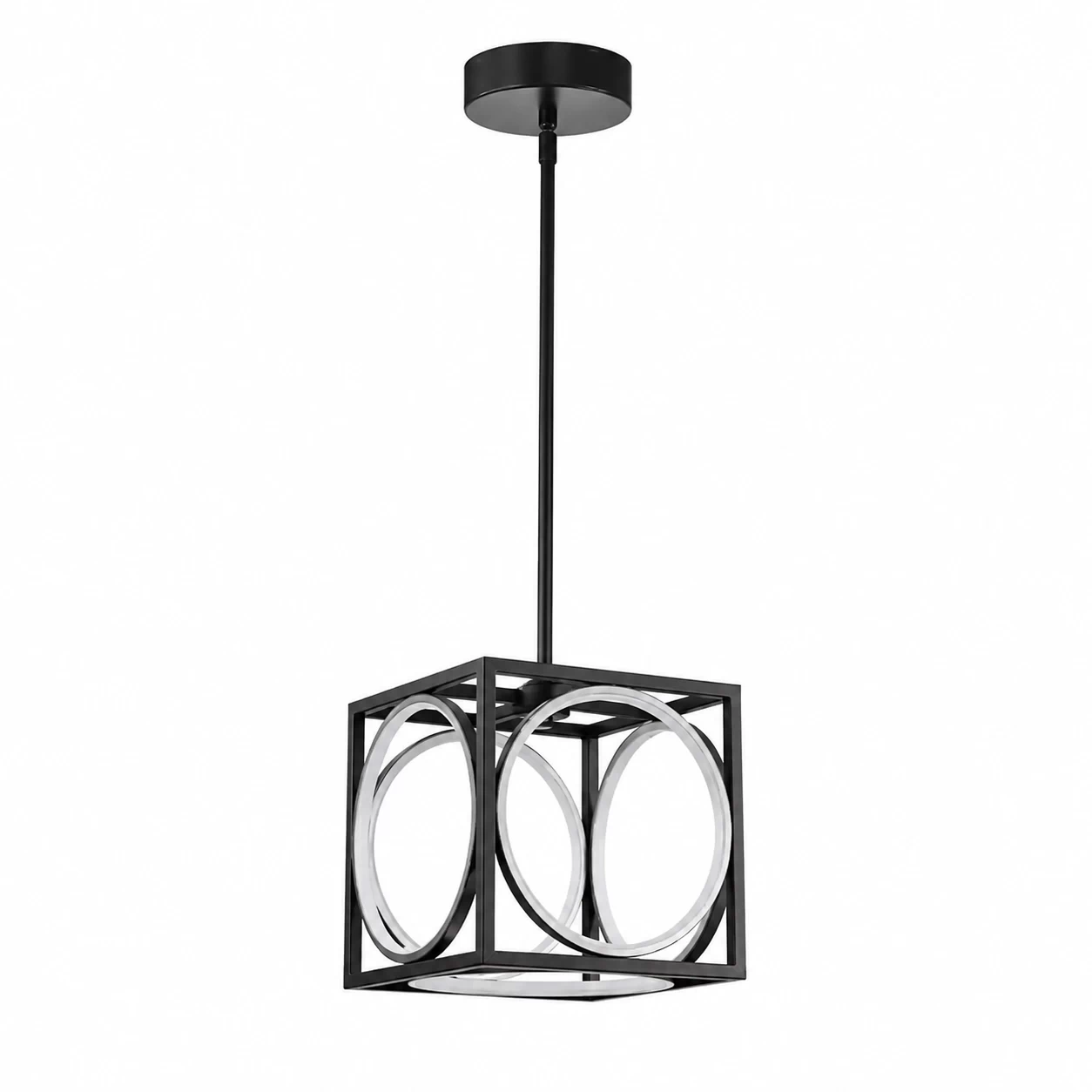

The LumoFrame 5-Ring LED Pendant is a sophisticated architectural lighting piece that masterfully explores the intersection of geometric stability and dynamic light. From an aesthetics and interior design perspective, this fixture serves as a highly effective focal point for spaces that value mathematical precision and contemporary flair.
Here is a detailed commentary on this fixture:
1. Aesthetic Composition: The “Square-to-Circle” Dialogue
The core design strength of the LumoFrame lies in its nested geometric layers.
Outer Stability: The rigid, matte black cube frame provides a sense of architectural order and stability.
Inner Fluidity: Within the cube, multiple interlocking LED rings are suspended, creating a visual tension between the sharp corners of the outer frame and the fluid, infinite curves of the inner rings.
Symmetry and Complexity: Depending on the viewing angle, the fixture shifts from a flat 2D geometric outline to a complex 3D sculpture, providing constant visual interest.
2. Materiality: Graphic Minimalism
The use of a Matte Black finish on the outer frame creates a strong graphic presence.
Space Definition: The thin black lines of the cube act like a 3D sketch in the air, framing the light without adding visual bulk or “heaviness” to the ceiling.
High Contrast: The dark frame provides a perfect backdrop for the integrated LEDs, ensuring that the glowing rings remain the primary focus of the composition.
3. Lighting Dynamics: Luminous Core
Unlike traditional lanterns that use external bulbs, the LumoFrame utilizes Integrated LED strips within its central rings.
Glow from Within: By placing the light source at the center of the geometric frame, the fixture creates a “pulsing” heart of light that radiates outward.
Glare-Free Diffusion: The LEDs are typically diffused to create a smooth, continuous ribbon of light, offering a softer and more contemporary ambiance than exposed filaments.
4. Ideal Interior Applications
Modern Foyer or Entryway: Its compact yet sculptural form makes it a perfect “conversation piece” for entryways, signaling a home that values modern art and precision engineering.
Rhythmic Kitchen Clusters: Hanging a series of these pendants over a kitchen island or a long bar creates a powerful geometric rhythm that complements modern cabinetry.
High-Tech Home Offices: The precision-driven design is well-suited for professional environments, providing a clean, futuristic aesthetic that promotes a focused atmosphere.
5. Stylistic Versatility
The LumoFrame is a premier choice for several niche design languages:
Contemporary Geometric: It fits perfectly in homes that use shapes as the primary decorative element.
Urban Industrial: The black cage-like structure touches on industrial themes, but the integrated LED technology elevates it into a more polished, “luxury” category.
Minimalist Art Deco: The interlocking circles suggest a subtle nod to Art Deco motifs, reimagined through a 21st-century minimalist lens.
Summary
The LumoFrame 5-Ring LED Pendant is an exercise in geometric harmony. Its strength lies in its “open” design, allowing it to occupy a significant volume of space while remaining visually transparent. It is an ideal choice for designers looking to introduce a sense of “dynamic order” and high-efficiency lighting into a modern residential or commercial project.
