Description
Spatial Contexts & Aesthetic Adaptability
The LumoCube LED Pendant reimagines architectural geometry through hollowed cubic metalwork and precision optical diffusers. Engineered with clean right angles, seamless joinery, and shadowless glare-free LED illumination, this minimalist suspension fixture acts as an anchor of structural light without visually overcrowding high-end spaces. Designed as a versatile OEM/ODM manufacturing blueprint for commercial offices, luxury residential dining, and global lighting brands, all cubic frame profiles, cluster configurations, suspension drop lengths, and anodic/powder-coated finishes are 100% customizable to architectural CAD specifications.

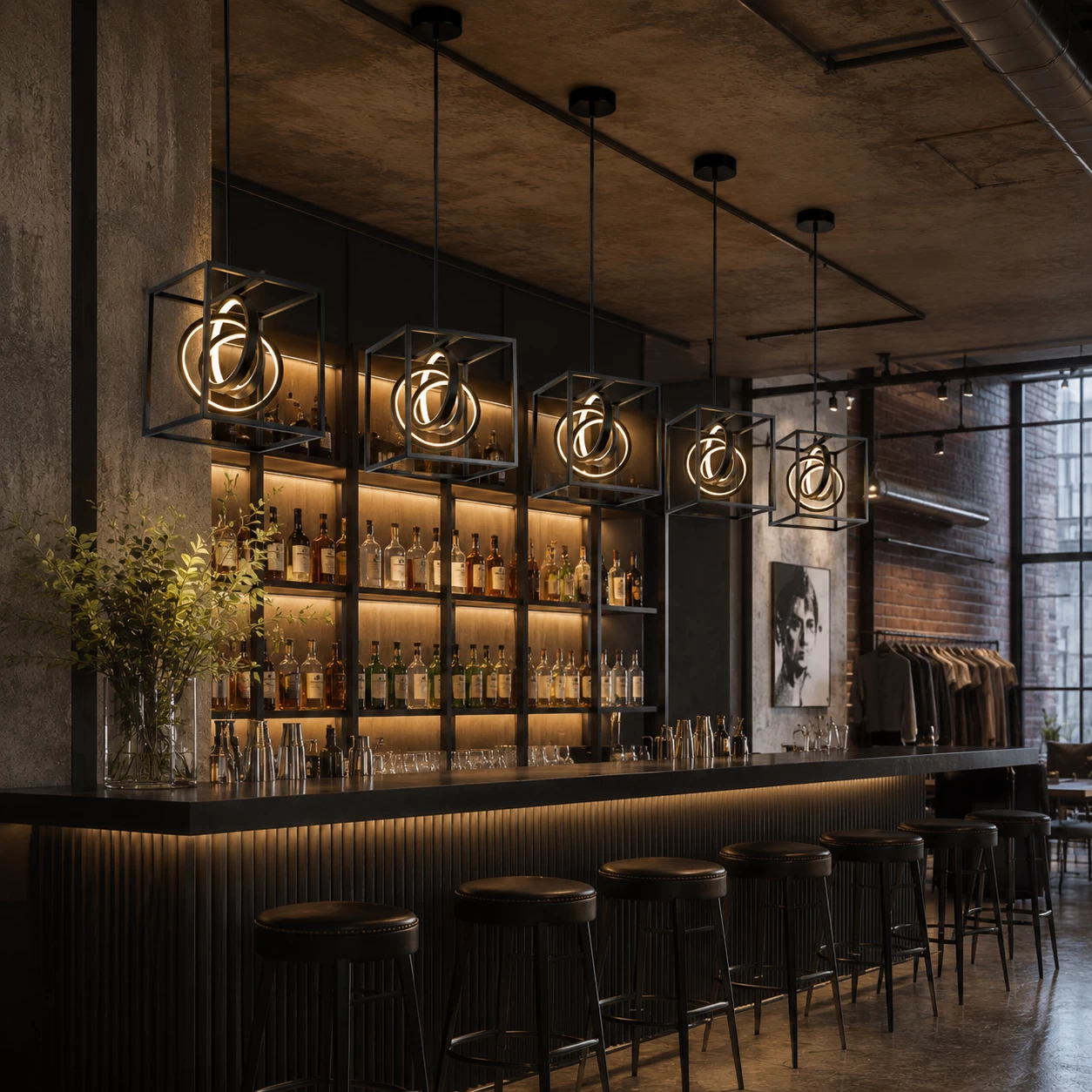

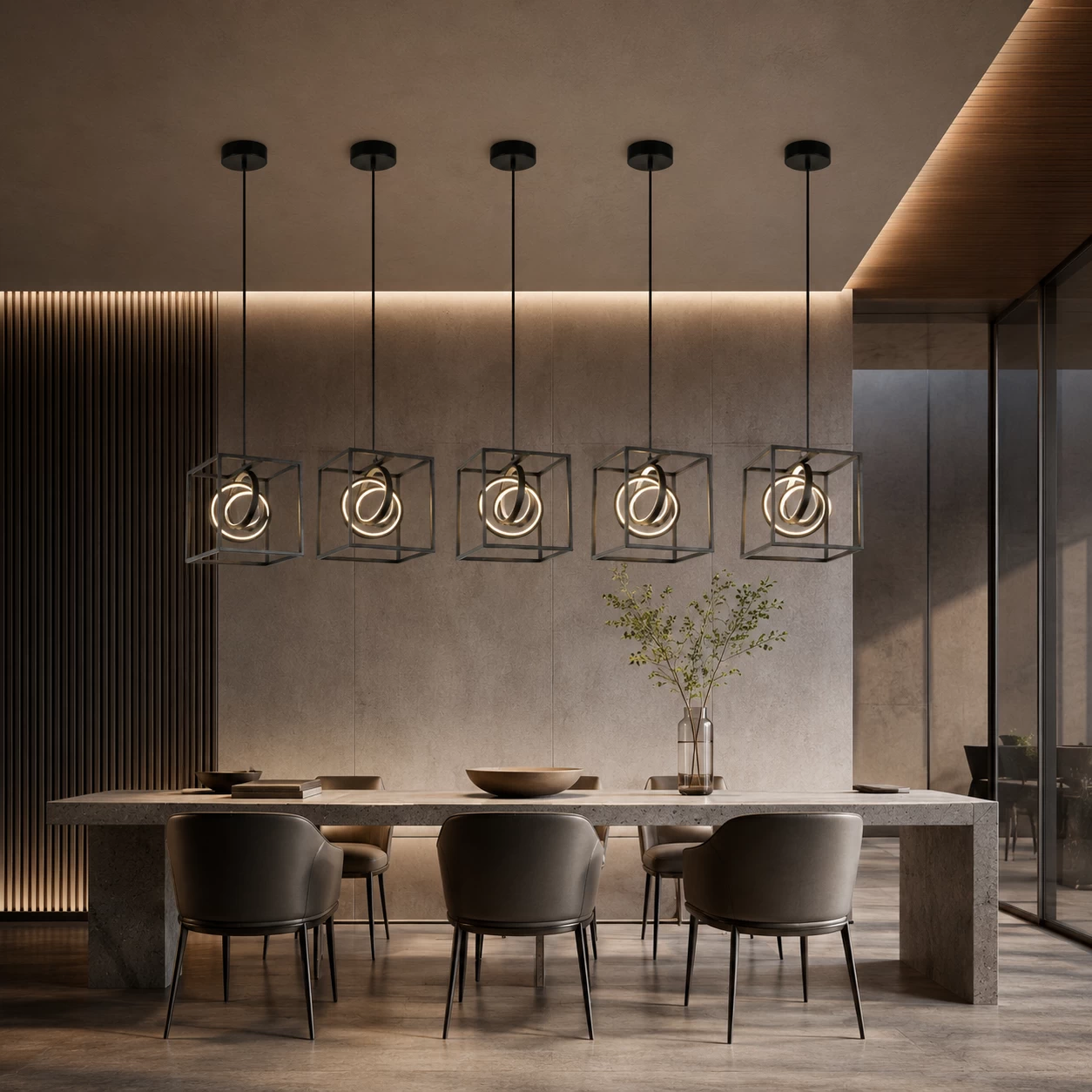

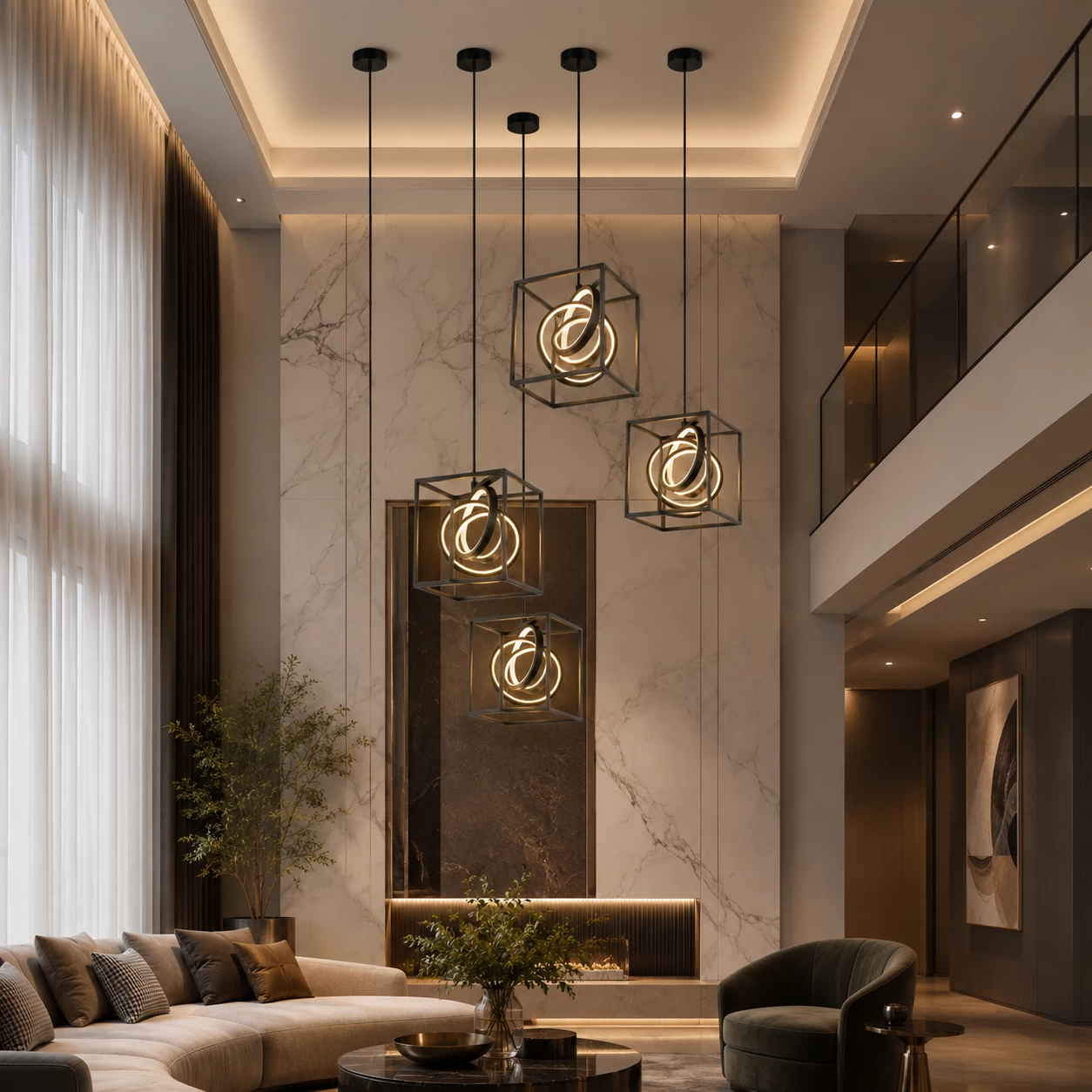

Context 01 Architectural Minimalism & Executive DiningSuspended in linear multi-cube groupings over stone island counters or executive conference tables. Customized in anodized titanium grey or deep champagne gold, the hollow geometric outline complements minimalist concrete, architectural glass, and raw timber textures. | Context 02 Modern Luxury & Living SalonsPositioned as a staggered multi-pendant sculpture in double-height foyers or residential grand rooms. Styled with brush-electroplated brass accents and warm 2700K indirect LED illumination, the cubic form brings soft ambient luxury to velvet and marble interiors. | Context 03 Industrial Chic & Commercial HospitalityArrayed along hotel bar counters, creative studios, or retail showrooms. Finished in fine-grain matte black electrostatic powder coating, the industrial-grade aluminum cube establishes an iconic, high-contrast focal point in urban loft settings. |
Envelope Dimensions & Technical Specifications
SPECIFICATION DISCLAIMER: Data below reflects baseline outer boundary envelope dimensions for spatial proportion planning and ceiling mounting weight calculations. Internal LED PCB layouts, driver housing tolerances, and micro-fastener specifications are withheld. All overall cubic frame dimensions, wattages, suspension drop ranges, and aluminum finishes are 100% fully customizable.
| Specification Axis | Standard Baseline (Reference Only) | OEM / ODM Customization Options |
|---|---|---|
| Envelope Outer Dimensions | Single Cube Body: 350 mm W × 350 mm D × 350 mm H | Adjustable Aircraft Wire Drop Range: 500 mm – 3000 mm | Slim Flush Canopy: 180 mm W × 180 mm D × H 35 mm | Scalable cube dimensions (200 mm to 1000 mm+); rectangular/cuboid morphs; multi-cube linear arrays; multi-tier geometric cluster configurations; sloped ceiling adapter mounts |
| Materials & Optics | Precision Extruded 6063 Aluminum Alloy Frame + Optical Grade Frosted Acrylic PMMA Light Guide Plate + High-Tensile Stainless Steel Cables | 304 Stainless Steel frame options; micro-prismatic anti-glare diffusers (UGR < 19); direct/indirect dual-emitting optics; tinted smoked acrylic panels |
| Illumination & Electronics | High-CRI SMD 2835 LEDs (Ra > 90, R9 > 50) | System Wattage: 32W | Output: 2880 Lumens | CCT: Switchable 2700K / 3000K / 4000K | Custom CCT (2200K – 6500K); Tunable White LED; RGBW decorative lighting; MeanWell / Lifud flicker-free drivers; DALI-2, 0-10V, TRIAC, or Zigbee/Matter smart dimming drivers |
| Finishes & Coatings | Anodized Sandblasted Titanium Grey or Fine-Grain Electrostatic Powder-Coated Matte Black with Anti-Fingerprint Seal Coat | Brushed Electroplated French Gold, Brushed Nickel, Polished Chrome, Rose Gold, or custom RAL powder-coating colors with outdoor-grade anti-UV seal coat |
| Safety & Compliance | Universal Input Voltage: AC 100V-240V (50/60Hz) | Class II Safety Insulation | High-Efficacy Heat Sink Design (< 55°C Operating Temp) | Full factory pre-wiring and certification compliance testing for target export markets: UL/cUL (North America), CE/CB (Europe), SAA (Australia), SASO (Middle East) |
Climate Resilience & Maintenance Ergonomics
Surface Protection Anodized Aluminum & Anti-Humidity CoatingLinear LED fixtures in humid coastal or tropical environments can suffer aluminum oxidation and driver thermal failure. The LumoCube frame uses 6063 architectural aluminum treated with a 15-micron anodic oxide layer or outdoor-grade powder coating. Internal LED drivers feature conformal silicone coating to resist humidity, salty air, and atmospheric moisture. | Maintenance Ergonomics Dust-Sealed Optics & Modular Driver AccessEngineered for low maintenance in dusty commercial or residential settings. The integrated PMMA diffuser is flush-sealed against the aluminum channel to prevent dust, insects, and air debris from penetrating the LED cavity. The externalized LED driver in the canopy features quick-connect terminals, allowing effortless driver replacement without dismantling the main suspension structure. |
Smile Lighting Co., Ltd.
The LumoCube LED Pendant (c41-36) is a compelling study in architectural contrast, blending the rigid precision of linear geometry with the fluid elegance of circular light. From an aesthetics and interior design perspective, this fixture serves as a high-impact “sculptural anchor” for modern environments.
Here is a detailed commentary on this piece:

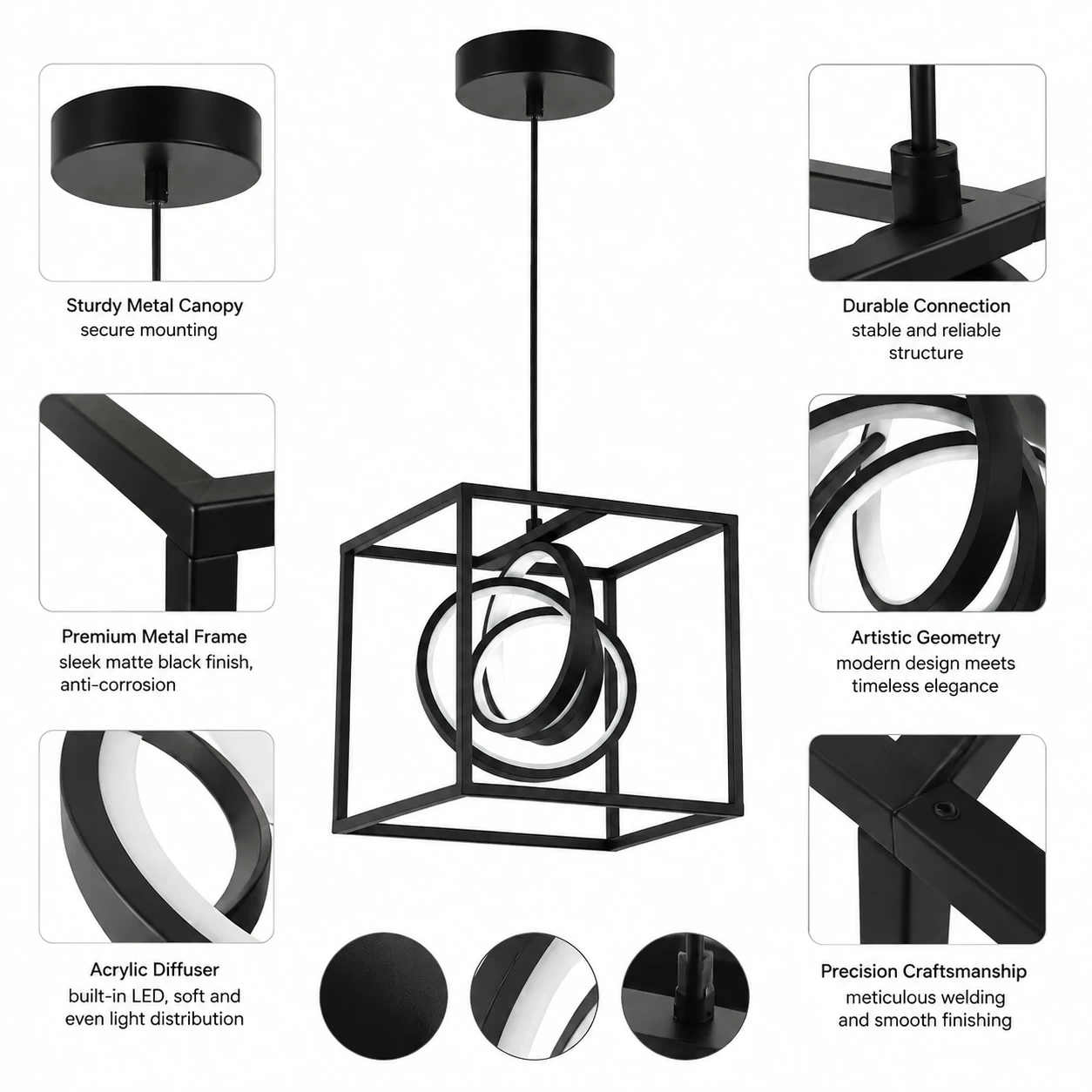

1. Aesthetic Composition: The “Frame within a Frame”
The primary visual draw of the LumoCube is its sophisticated layering of shapes.
Architectural Rigidity: The outer matte black cube provides a stable, grounding frame that feels solid and intentional. It acts as a 3D boundary that defines a specific volume of air without physically blocking it.
Kinetic Fluidity: Inside the cube, multiple interlocking LED rings are suspended at dynamic angles. This “orbital” core creates a sense of movement and energy that beautifully offsets the static nature of the outer square.
Proportionate Balance: The thinness of both the cube’s edges and the light rings ensures that the fixture remains visually light, making it a sophisticated choice for spaces that prioritize an uncluttered, open aesthetic.
2. Materiality and Finish: Graphic Minimalism
The Matte Black finish is a deliberate choice that enhances the fixture’s modern identity.
Bold Contrast: Against a neutral or white ceiling, the black frame provides a sharp, graphic silhouette that draws the eye upward.
Versatile Neutrality: Matte black is a “forgiving” and timeless finish that coordinates effortlessly with various textures, such as polished concrete, light oak wood, or marble.
3. Lighting Dynamics: Luminous Core Diffusion
The LumoCube utilizes Integrated LED strips to transform the fixture from a mere frame into a source of light.
Halo Effect: By placing the light source on the inner rings, the fixture creates a soft, diffused “halo” that radiates from the center outward. This provides a uniform glow that is more atmospheric and comfortable than traditional point-source bulbs.
Shadow Play: The interaction between the glowing inner rings and the dark outer frame creates subtle, rhythmic shadows, adding a layer of “visual texture” to the surrounding walls and ceiling.
4. Ideal Interior Applications
Modern Foyers: Its compact yet intricate design makes it an excellent “statement piece” for an entryway, immediately signaling a home’s commitment to contemporary design.
Kitchen Island Clusters: Hanging two or three LumoCubes in a row over a kitchen island creates a powerful geometric rhythm that perfectly complements sleek, modern cabinetry.
Creative Office Spaces: The fusion of mathematical order (the cube) and creative energy (the rings) makes it a fitting centerpiece for professional suites or home offices where a focused yet inspired atmosphere is desired.
5. Stylistic Versatility
The LumoCube is a premier choice for several specific design languages:
Industrial Chic: The cage-like structure touches on industrial roots but is elevated by the clean LED technology.
Futuristic/Tech-Forward: The nested rings and “floating” suspension feel like they belong in a cutting-edge metropolitan residence.
Soft Minimalism: It provides a necessary focal point for sparse interiors without introducing unnecessary decorative “noise”.
Summary
The LumoCube LED Pendant is a masterclass in geometric harmony. Its strength lies in its “open” design, allowing it to occupy significant visual space while remaining transparent and airy. It is an ideal choice for designers looking to introduce architectural interest and high-efficiency lighting into a project that values precision and modern flair.
