Description
Compact Caged Silhouette & Satin Brass Core

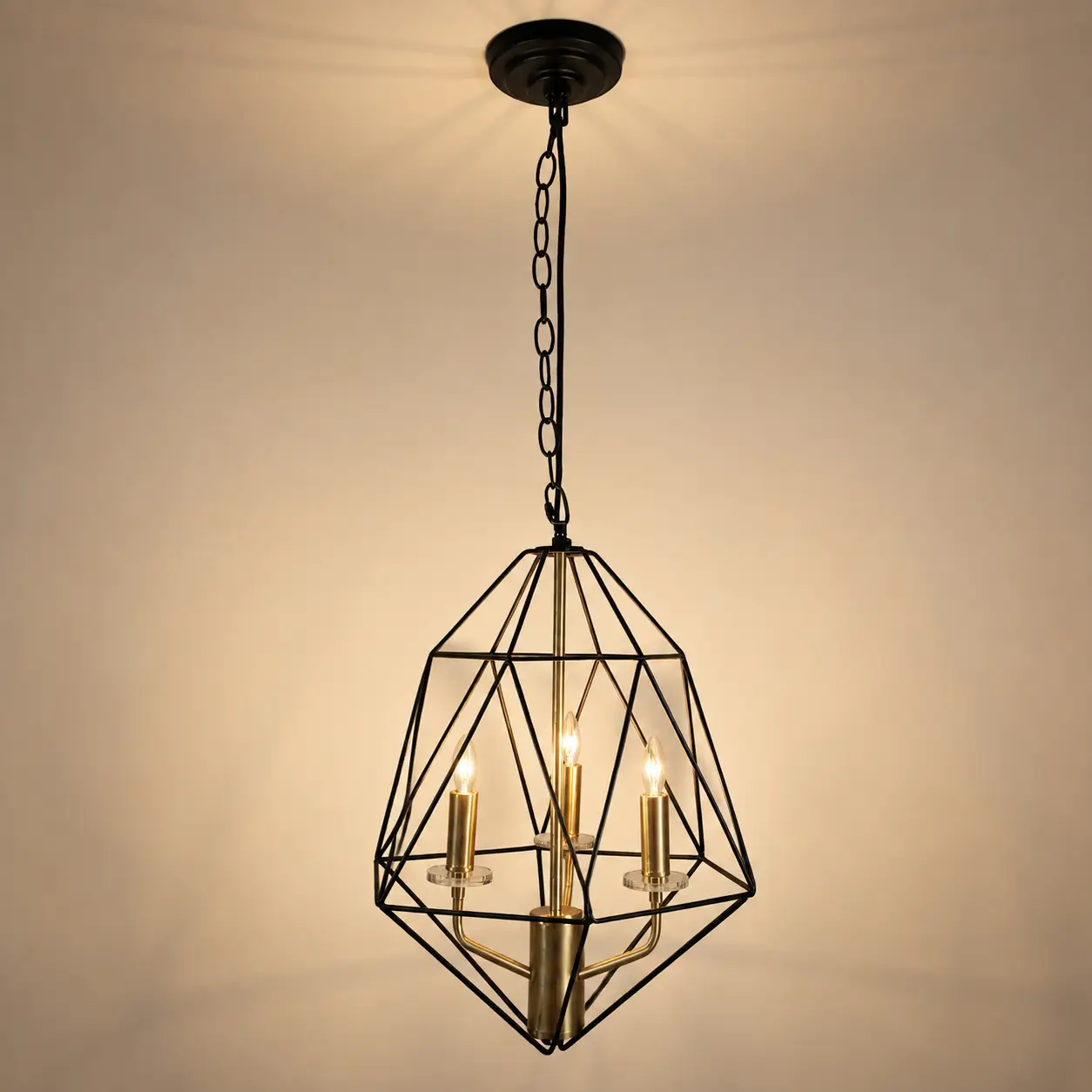

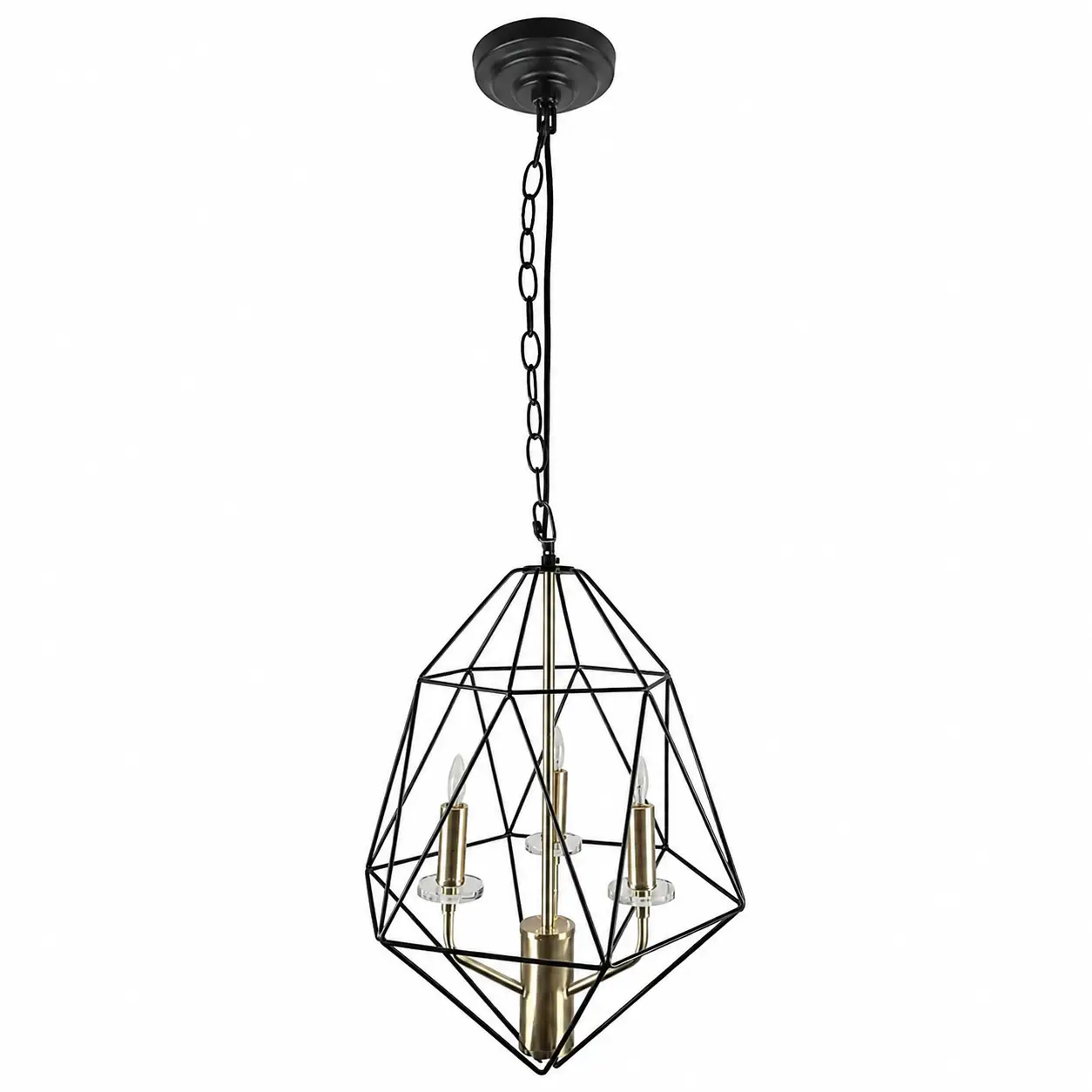

Lumicage 3-Light Chandelier in Matte Black & Satin Brass
The Lumicage 3-Light Chandelier fuses architectural minimalism with warm metallic refinement. Designed with a laser-cut, precision-welded matte black iron frame, the fixture encapsulates a 3-light cluster stem finished in rich, hand-brushed satin brass. This compact geometric silhouette provides clear 360-degree illumination while establishing a striking visual anchor in intimate and expansive spaces alike. Developed purely as a contract manufacturing reference blueprint for interior specifiers, commercial contractors, and global lighting OEM/ODM brands, all overall envelope dimensions, socket configurations, drop lengths, and finish combinations are 100% fully customizable.

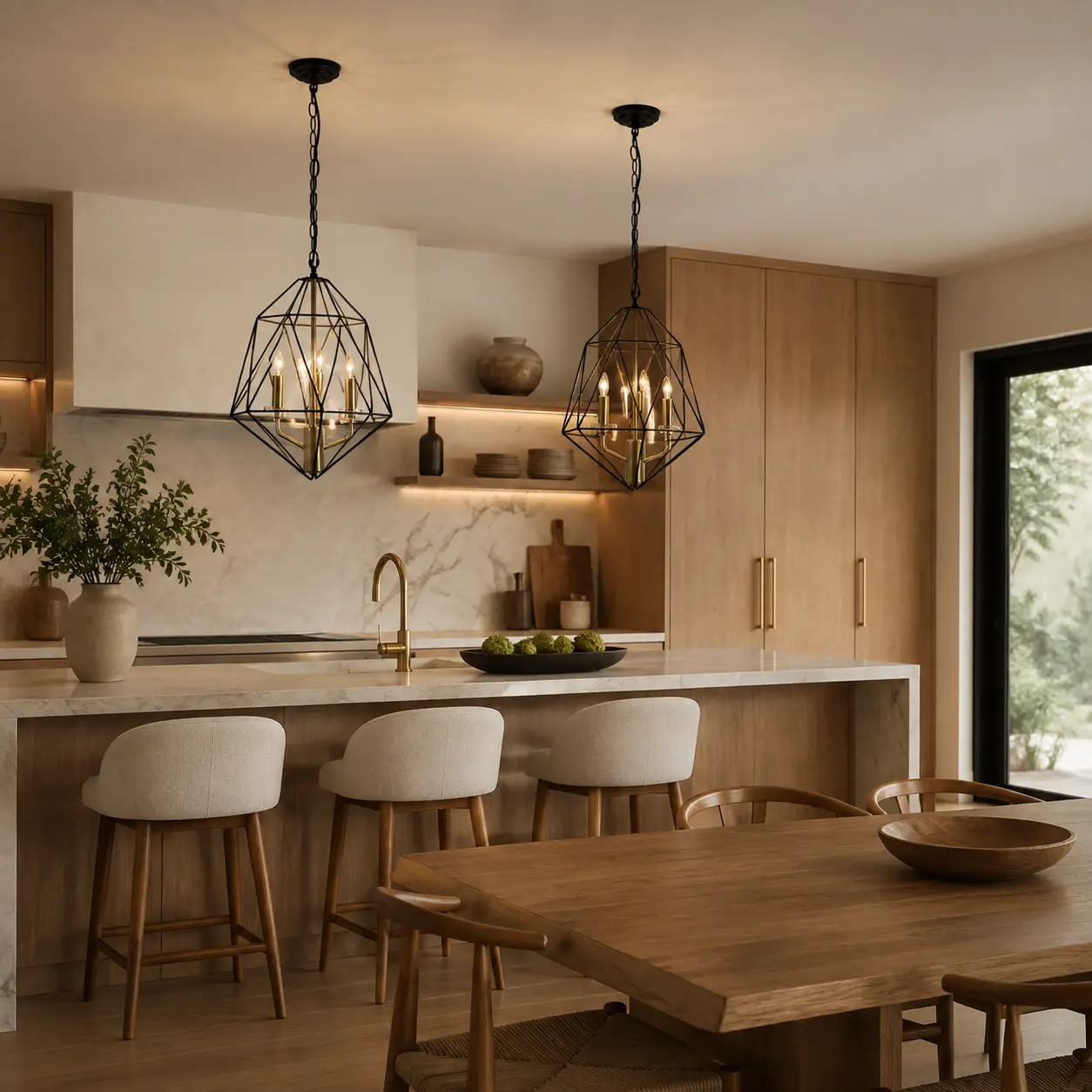

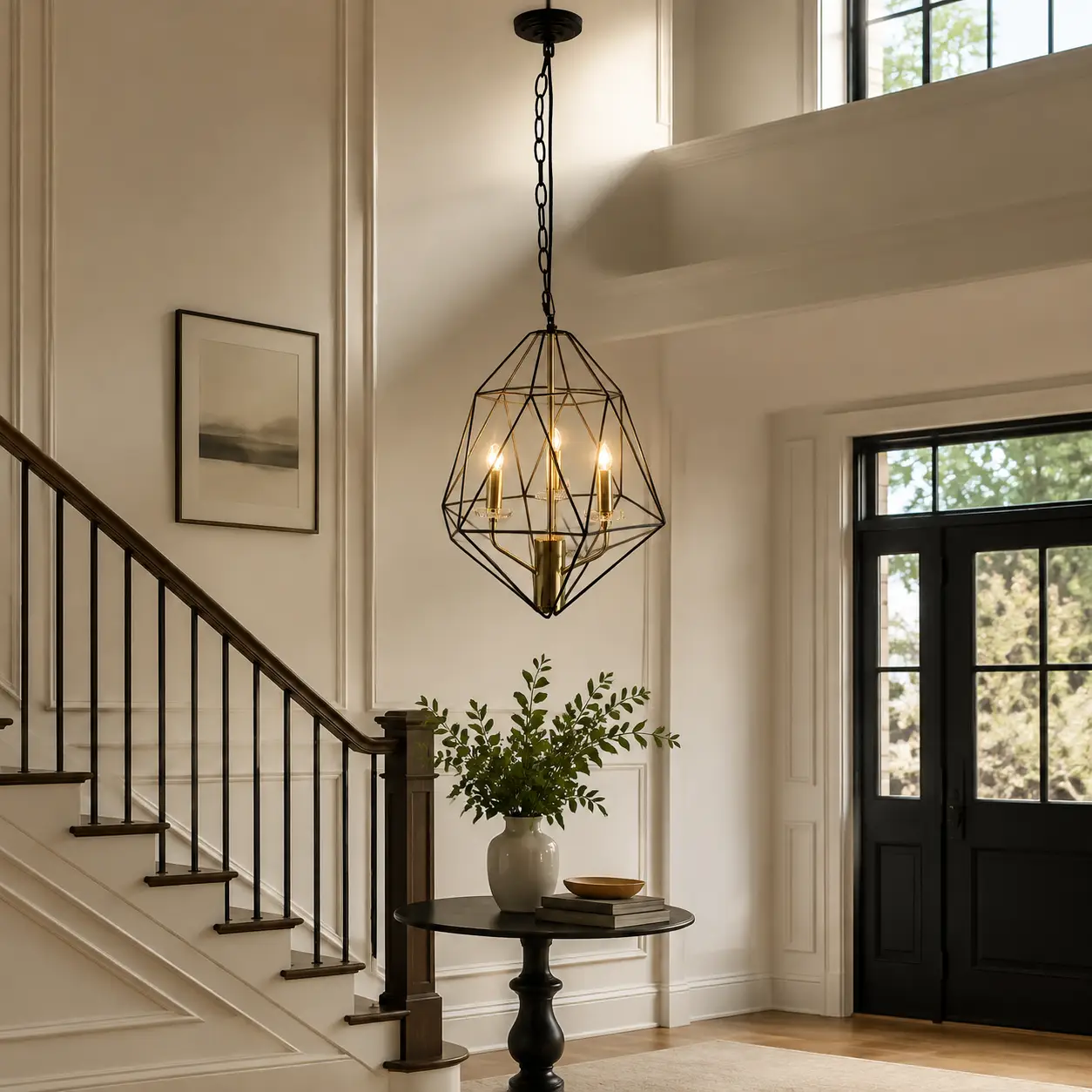

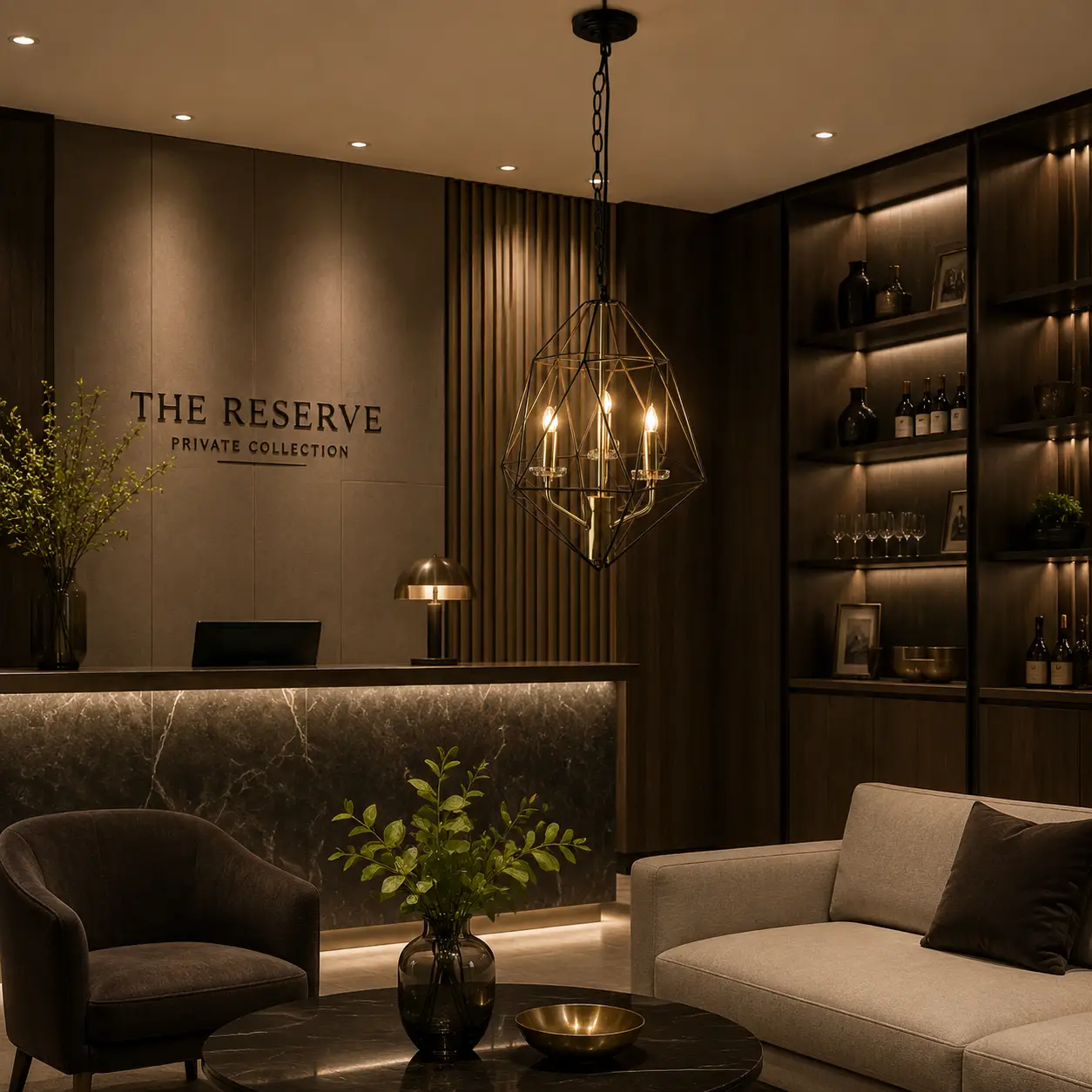

Context 01 Modern Organic & Island DiningHung in pairs or trios over marble kitchen counters or natural oak dining sets. The dark linear frame defines spatial sightlines while the satin brass accents echo warm interior woodwork and cabinetry hardware. | Context 02 Transitional Foyers & StairwellsFloating seamlessly in residential entry halls and staircases. The transparent cage construction keeps sightlines open while delivering glare-free ambient warmth across elevated ceilings. | Context 03 Boutique Hospitality & Executive SuitesIdeal for luxury hotel reception lounges, private tasting rooms, or commercial offices. The refined dual-finish metalwork conveys architectural sophistication without crowding spatial proportions. |
Engineering Reference Blueprint
Envelope Dimensions & Technical Specifications
SPECIFICATION DISCLAIMER: The baseline values below outline overall spatial envelope boundaries for headroom calculation, island scale matching, and ceiling mounting evaluation. Internal wire channels, weld joint micro-specs, and mounting plate details are intentionally omitted. As a custom contract manufacturer, cage width, socket count, suspension rod/chain length, and surface finish options are 100% fully customizable.
| Specification Axis | Standard Baseline (Reference Only) | OEM / ODM Customization Options |
|---|---|---|
| Envelope Outer Dimensions | Outer Frame Width: 400 × 400 mm | Main Body Height: 500 mm | Round Ceiling Canopy: Ø 120 × 25 mm | Scalable frame dimensions (350 mm to 1200 mm+); 3-light, 4-light, 5-light, or multi-tiered arrangements; custom geometric profiles |
| Suspension & Drop Range | Min Drop Height: 600 mm | Max Drop Height: 1800 mm (Includes Heavy-Duty Chain & Reinforced Cord Kit) | Custom extension chain lengths, rigid downrod kits, high-tensile aircraft wire suspensions, sloped ceiling swivel joints |
| Materials & Construction | Laser-Cut Structural Wrought Iron Outer Frame + Solid Brass Light Stem & Socket Sleeves | 304/316 Stainless Steel (for high-humidity coastal zones); optional clear, frosted, or seeded glass shade inserts |
| Illumination & Sockets | 3× E12 / E14 Candelabra Sockets (Max 60W per socket / Filament LED Candle Bulbs Recommended) | E26/E27 sockets; GU10 spotlight bases; integrated dimmable LED ring bases; 0-10V, Triac, Phase, or DALI dimming driver integration |
| Finishes & Coatings | High-Temp Baked Powder-Coated Matte Black Frame with Hand-Brushed Satin Brass Core Accents | Shiny Chrome, Antique Brass, Brushed Nickel, Rose Gold, Weathered Bronze, or custom RAL powder coatings |
| Safety & Certification | Universal AC 110V-240V | Class I Grounded Electrical Wiring | High-Temp Insulated Conductor Cabling | Pre-wired and structurally built to meet UL/cUL (North America), CE/CB (Europe), SAA (Australia), and SASO (Middle East) |

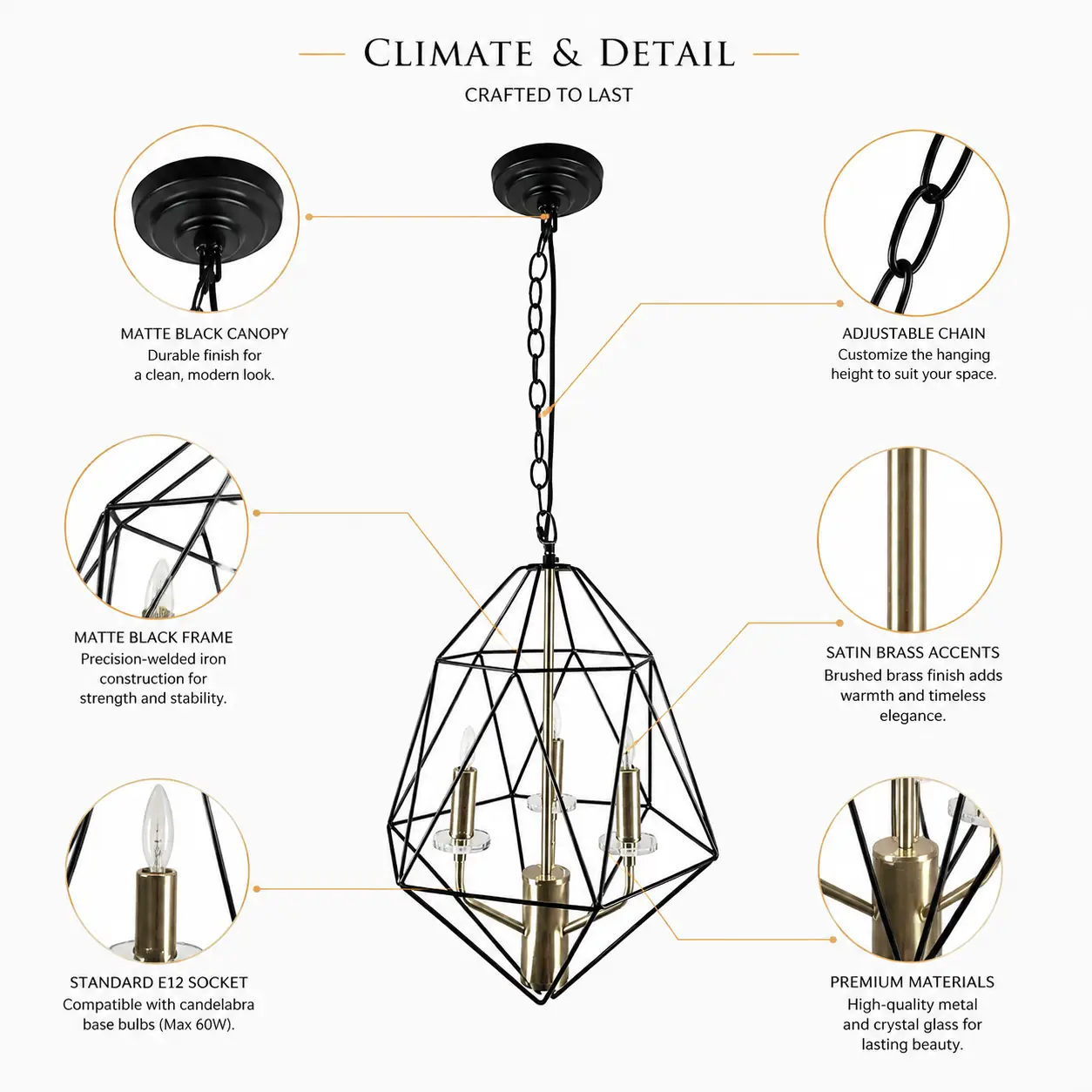

Product Longevity
Climate Resilience & Maintenance Ergonomics
Coating Protection Multi-Layer Corrosion Resistance & Brass Clear-Lacquer SealSteel framed fixtures in high-humidity or coastal regions can suffer oxidation along weld points. The Lumicage outer frame undergoes multi-stage electrophoretic primer treatment and high-temp powder baking, while the satin brass core is protected with a clear anti-tarnish lacquer. For seaside commercial installs, optional 304/316 stainless steel substrate construction guarantees total rust resistance. | Commercial Ergonomics Shadeless Open Architecture for Rapid MaintenanceMaintenance in commercial and hospitality projects can lead to unwanted downtime. The open cage design prevents dust accumulation and glass cleaning complications, enabling facility staff to perform quick microfiber dust passes and direct bulb replacements without dismantling any structural components. |
Smile Lighting Co., Ltd.
The LumiCage 3-Light Chandelier is a sophisticated exploration of “Geometric Glamour,” utilizing an intricate, multi-faceted wireframe to create a fixture that feels like a piece of architectural jewelry. This model refines the industrial cage concept by adding luxurious satin brass accents and crystal-clear bulb bases, elevating it for high-end residential interiors.
From an aesthetics and interior design perspective, here is a professional commentary:
1. Aesthetic Composition: The Sculptural Polyhedron
The visual identity of the LumiCage is defined by its complex, non-linear geometry.
Asymmetrical Faceting: Unlike standard diamond cages, the LumiCage features an elongated, irregular polyhedral form. This asymmetry provides a different visual profile from every angle, making it a dynamic 3D sculpture that captures the eye without overwhelming the room.
Vertical Emphasis: The tapered top and bottom sections draw the eye upward, making this fixture an excellent tool for designers looking to highlight high ceilings or add vertical interest to a narrow space.
2. Materiality: A Study in Refinement
Matte Black Framework: The thin, matte black wireframe provides a sharp, graphic “skeleton”. This finish ensures the fixture remains grounded and compatible with modern, industrial, or minimalist hardware elsewhere in the home.
Satin Brass Core: The central pillar and candle-style lamp holders are finished in a soft, brushed Satin Brass. This warm metallic core provides a luxurious counterpoint to the “cold” black frame, creating a balanced, high-contrast look.
Crystal Accents: Unique to this model are the clear, glass-like discs at the base of each candle. These small details catch the light and add a subtle “sparkle” that moves the fixture away from pure industrialism toward a more “Neo-Luxury” aesthetic.
3. Lighting Dynamics: Linear Shadow Play
360-Degree Ambient Glow: The three-light configuration provides unobstructed ambient illumination, ensuring the room is bathed in a crisp, clear light.
Graphic Shadows: Because the frame is entirely open, the thin black wires act as a stencil. When illuminated, the chandelier projects intricate, linear geometric patterns onto the walls and ceiling, turning the entire room into a canvas for the fixture’s art.
4. Ideal Interior Applications
Modern Stairwell Voids: The elongated, faceted silhouette is perfectly scaled for hanging in the center of a spiral staircase or a tall entryway where its sculptural form can be admired from multiple heights.
Contemporary Kitchen Islands: Staged in a pair or a trio, these chandeliers provide a bold, geometric statement over a kitchen island, especially those featuring black or brass faucets.
Luxury Primary Suites: The combination of soft brass and crystal-clear accents makes this an elegant choice for a bedroom focal point or placed over a freestanding bathtub.
5. Stylistic Versatility
Modern Glamour: It fits seamlessly into “Mod-Glam” or “Hollywood Regency” styles that prioritize high-contrast palettes and jewel-like shapes.
Industrial Chic: For lofts or urban apartments, it offers a “softened” version of the industrial trend, trading heavy iron for delicate, precision-engineered wire.
Transitional Edge: The candle-style bulbs honor traditional lighting, while the polyhedral cage brings the concept firmly into the 21st century.
Summary
The LumiCage 3-Light Chandelier is a “symphony of lines and luxury.” It is the premier selection for designers seeking a high-impact vertical focal point that offers both structural drama and refined metallic warmth, combining a matte black polyhedral frame, a satin brass core, and delicate crystal-clear accents.
