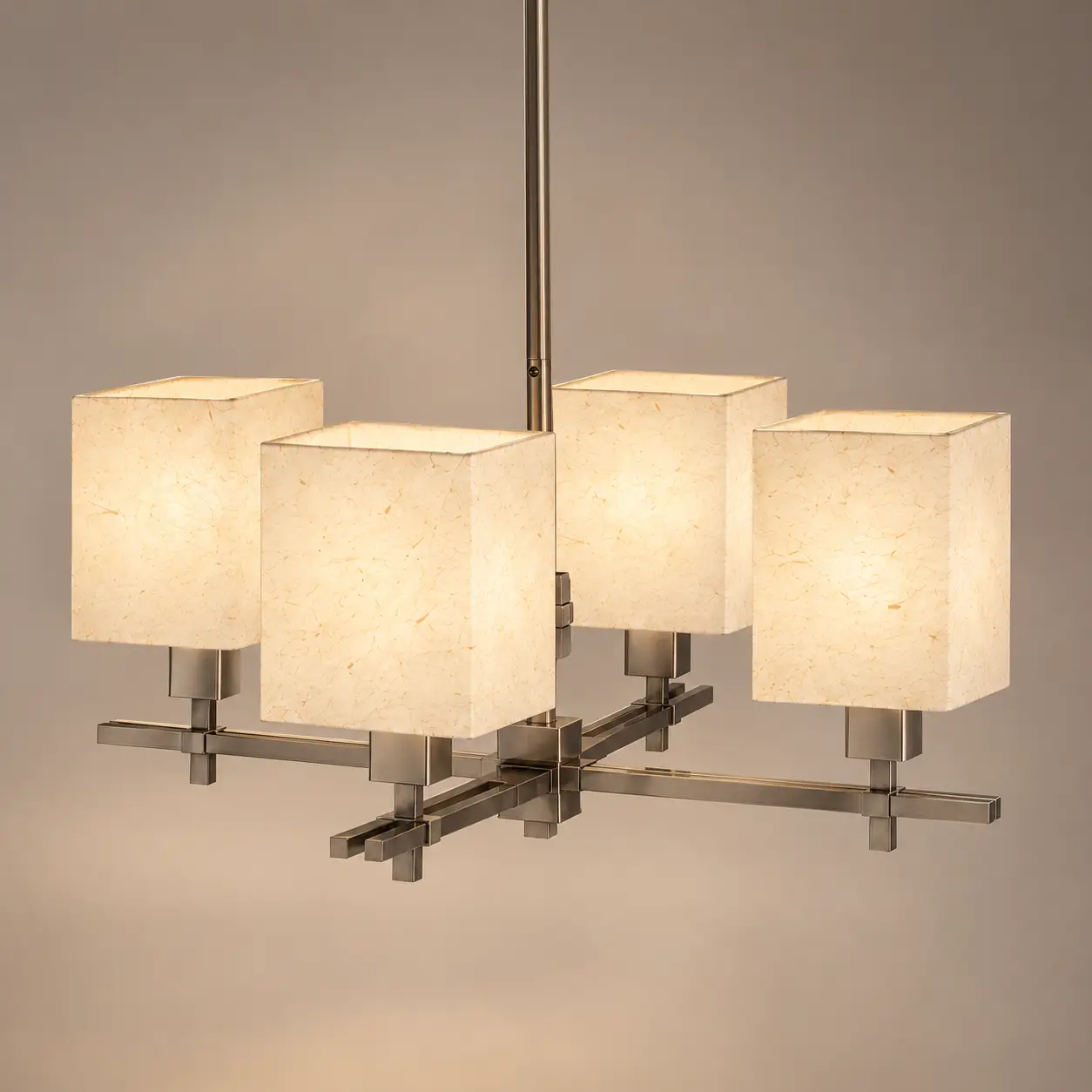

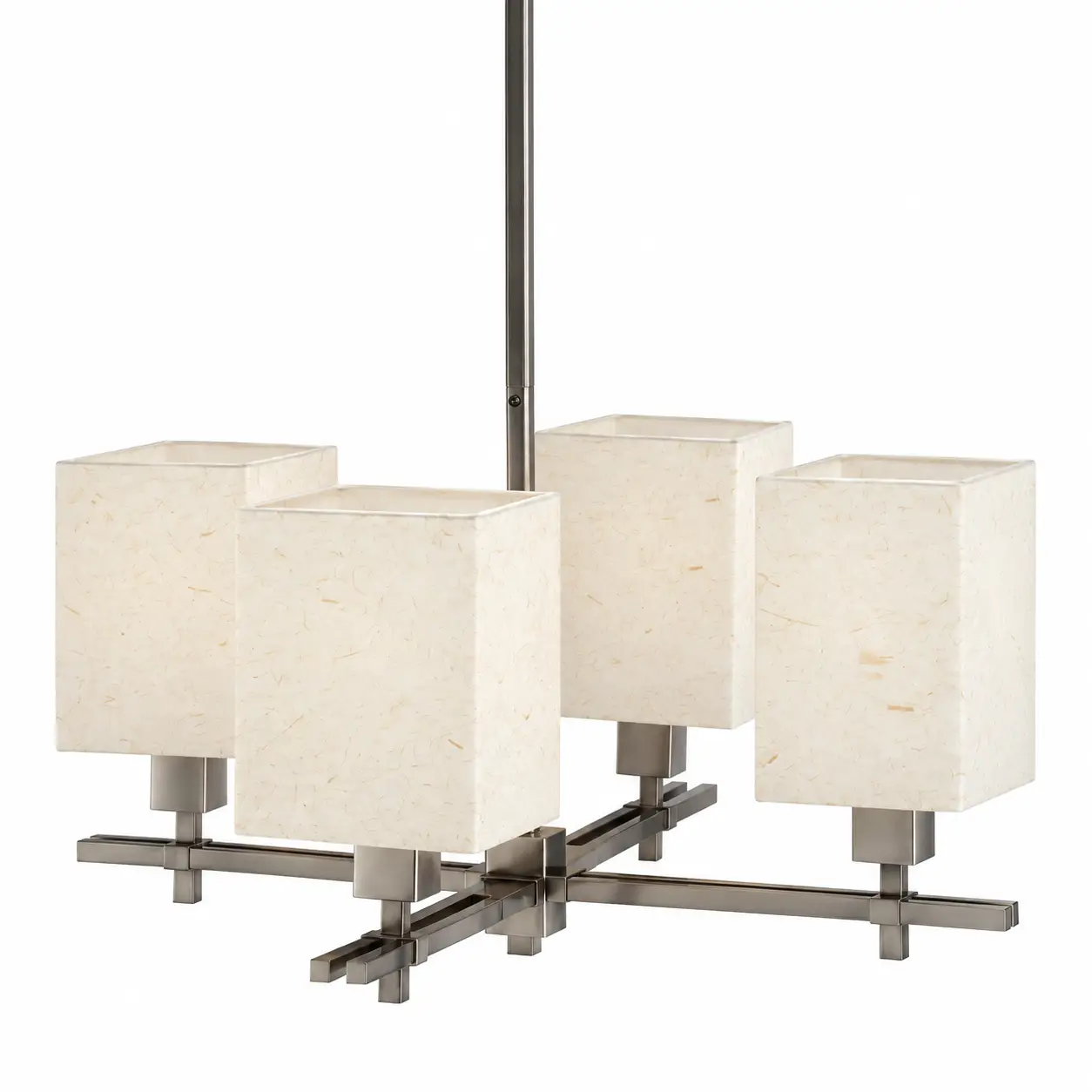

1. Spatial Boundary Envelope & Baseline Engineering Specifications
Technical Notice for Project Specifiers & Commercial Buyers: All parameters detailed below represent standard baseline envelope dimensions intended strictly for spatial ratio evaluation, ceiling clearance planning, and structural load calculations. Micro-measurements, square shade dimensions, cross-arm lengths, suspension drop stems, and metal patinas are 100% customizable to align with your bespoke architectural blueprints.
| Engineering Dimension / Metric | Reference Blueprint Parameter | OEM / ODM Customization Elasticity |
|---|---|---|
| Overall Outer Footprint (Square Cross-Span) | 26.0 in x 26.0 in / 660 mm x 660 mm | Scalable (20 in to 48 in+ for large dining & lobby spans) |
| Fixture Body Height (Cross-Arm to Hub) | 16.5 in / 419 mm | Proportional vertical adjustment & custom cubic socket heights |
| Overall Suspension Range (Min – Max Drop) | 24.0 in – 96.0 in / 610 mm – 2438 mm | Custom segmented square downrods or heavy suspension chains |
| Light Source & Socket Configuration | 4 x E26 / E27 Medium Base Sockets (Max 60W per socket) | Configurable to G9, GU10, or integrated dimmable LED driver core |
| Structural Framework Substrate | Precision Intersecting Dual Steel Square Tubing & Cubic Cast Hubs | 304 Marine-Grade Stainless Steel available for coastal/high-humidity installs |
| Primary Metal Finish & Application | Hand-Applied Textured Oil-Rubbed Bronze with Dark Steel Patina | PVD Antique Brass, Satin Nickel, Matte Black, Electroplated French Gold |

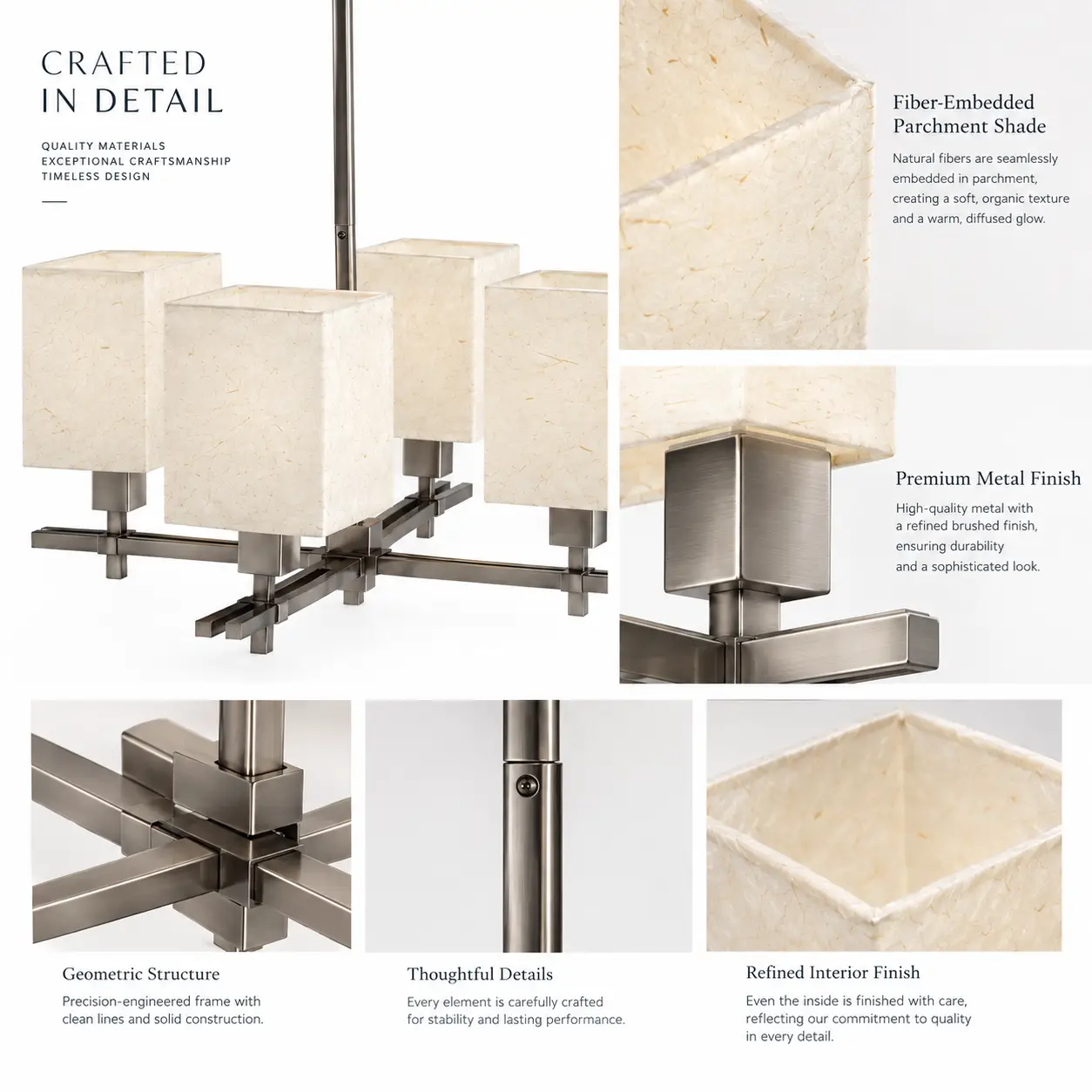

| Shade Materiality & Diffuser Texture | 4 x Vertical Square Hardback Shades with Botanical Fiber-Embedded Parchment | Opal frosted glass cubes, natural linen, alabaster resin, or silk weaves |
Environmental Adaptability & Maintenance Engineering
Smile Lighting tailors structural metallurgy, lacquers, and shade materials to match regional climate requirements:
• Coastal & High-Humidity Environments: The dual square-bar framework can be engineered with 304 Stainless Steel substrate treated with electrophoretic anti-corrosion primer and protective lacquer sealing to prevent rust or finish pitting.
• Arid & High-Dust Regions: Hardback fiber shades feature anti-static dust-repellent coatings. Modular quick-release shade clips allow easy removal for maintenance without taking down internal wiring.
2. Spatial Context & Interior Design Contextualization

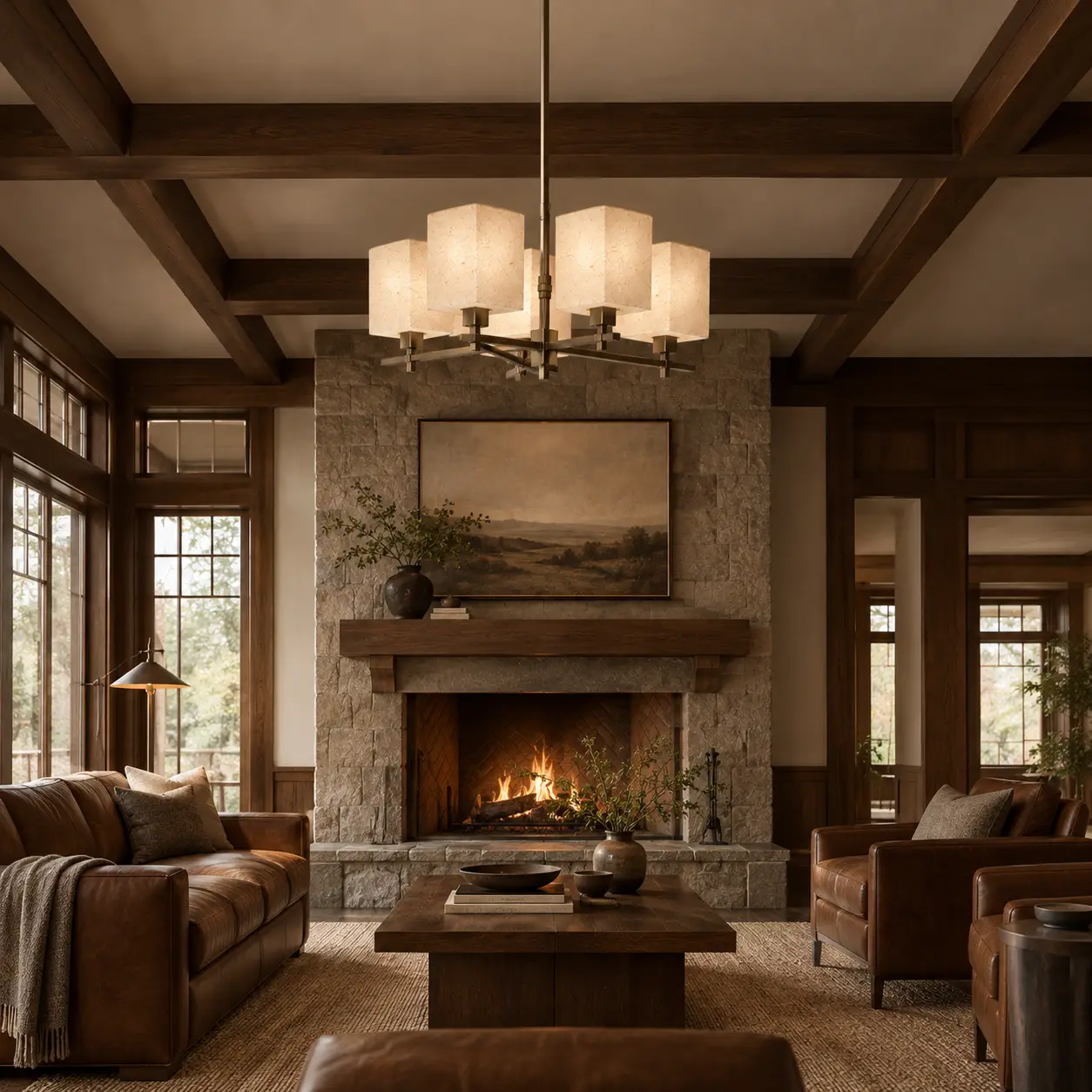

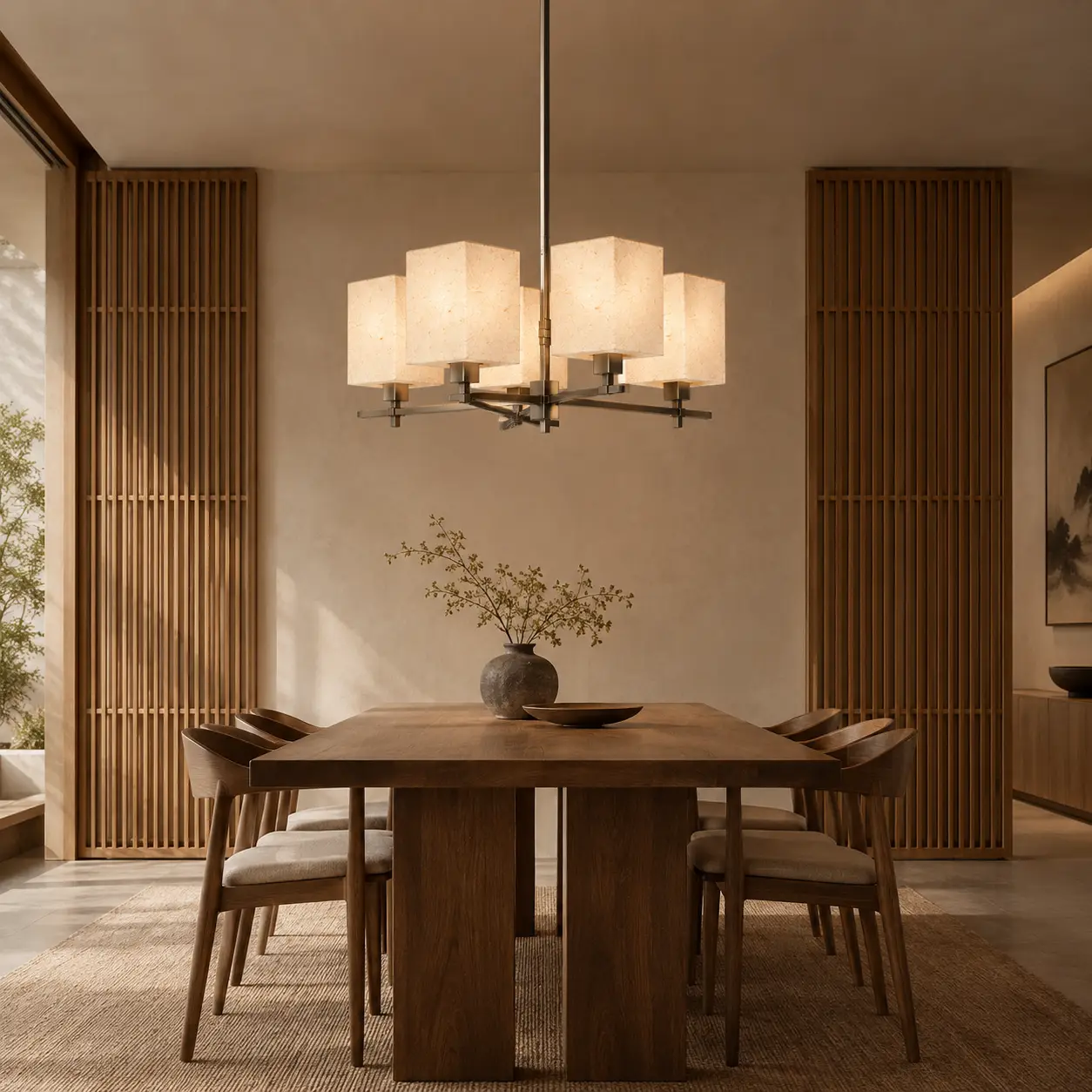

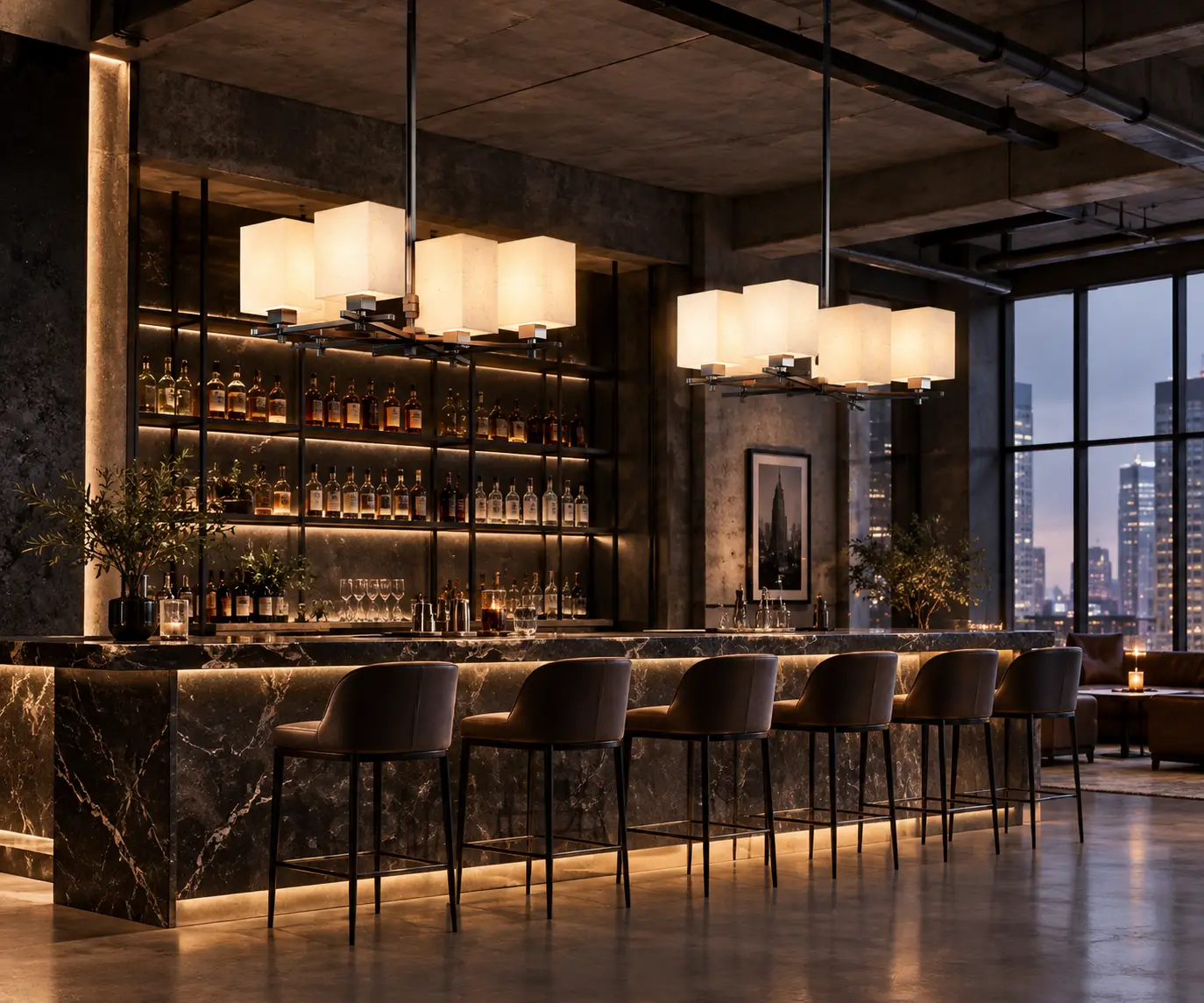

How does The Kyoto Lattice 4-Light Geometric Chandelier adapt to global interior design themes? The 3D architectural renders below demonstrate how our custom engineering bridges modern Asian/Japandi, Craftsman, and Modern Industrial environments:
3. Quality Control Standards & B2B Global Logistics
Manufactured in our 20,000+ m² ISO-certified production facility in China, every production batch of The Kyoto Lattice 4-Light Geometric Chandelier undergoes comprehensive commercial quality control testing:
- Structural Weld & Cross-Arm Load Testing: Intersecting double-bar joints and suspension hubs are weight-tested to 5x total fixture mass to satisfy commercial building installation codes.
- Electrical Safety Compliance: Sockets and internal wiring harnesses undergo 100% high-voltage dielectric insulation testing, fully certifiable to target regional standards (UL, CE, SAA, CB, RoHS).
- Surface Finish & Anti-Corrosion Testing: Hand-applied patinas and powder coatings undergo neutral salt-spray chamber testing to ensure zero peeling, oxidation, or tarnish in transit or installation.
- Drop-Tested Export Packaging: Standardized with precision-molded EPE foam cradles protecting each square shade and cross-arm, encased in heavy-duty 5-ply corrugated export cartons to guarantee damage-free global transit.
* For custom CAD engineering schematics, Photometric IES light distribution files, volume pricing schedules, or confidential physical sample requests, please contact your account manager or submit an inquiry through our trade portal.
Smile Lighting Co., Ltd.
From an interior design and aesthetics perspective, The Classic Foundry 6-Light Chandelier is a sophisticated blend of industrial strength and traditional grace. It takes the familiar “candelabra” silhouette and reimagines it through a lens of modern architectural discipline.
Here is a design breakdown of this fixture:
1. Aesthetic Narrative: “Refined Industrialism”
Architectural Ribbing: The most striking feature is the central “cage” formed by vertical metal ribs. This creates a sense of volume and structure without the heaviness of solid surfaces, allowing for a 360-degree view through the piece.
The Deep Bronze/Foundry Finish: The dark, matte finish provides a bold graphic contrast against neutral-colored walls. It mimics the look of hand-forged iron, grounding the room with a sense of history and “foundry” heritage.
Curvilinear Symmetry: While the vertical ribs feel structured, the outward-reaching arms and tiered candle cups add a necessary layer of fluidity. This balance prevents the light from looking too “rigid.”
2. Interior Design Style Compatibility
This chandelier is highly versatile because it bridges several popular design movements:
Modern Farmhouse: The dark metal and candle-style bulbs are quintessential farmhouse elements, providing a rustic yet clean look.
Industrial Chic: The exposed structure and raw “foundry” feel make it a perfect fit for urban lofts or homes with exposed brick and wood beams.
Transitional: Because it lacks fussy ornamentation, it can sit comfortably in a traditional home that is being updated with more modern, streamlined furnishings.
3. Spatial Application & Placement
The Dining Room Anchor: Positioned over a rectangular or oval wood table, this 6-light configuration provides ample ambient light while serving as a strong visual anchor for the dining area.
Entryway/Foyer Statement: In homes with standard or slightly vaulted ceilings, the open-frame design creates a “see-through” focal point that feels welcoming but not overwhelming to the spatial flow.
The “Great Room” Tier: If you have an open-concept living area, this chandelier is excellent for defining the “zone” between a kitchen and a lounge area due to its distinct, recognizable silhouette.
4. Professional Styling Tips
Bulb Selection: To lean into the “Foundry” aesthetic, use Clear LED Candelabra bulbs (B10 shape) with visible filaments. For a warmer, more traditional feel, choose a “Warm White” (2700K) color temperature.
Color Palette Pairing: This fixture pops beautifully against crisp white, light greige, or sage green walls. It also pairs exceptionally well with natural textures like linen, reclaimed wood, and jute.
Hardware Coordination: While you don’t need to match every metal in the room, this chandelier works best when coordinated with dark cabinet hardware, black window frames, or iron stair railings.
Final Verdict
The Classic Foundry Chandelier is a “Timeless Workhorse.” It offers enough character to be a focal point while remaining simple enough to not clash with evolving decor. It is an ideal choice for a designer or homeowner looking for a piece that feels substantial, grounded, and structurally honest.
