Description
Engineering Specifications & Spatial Envelope Boundaries
Engineering Notice for B2B Procurement & Interior Designers: The specifications detailed below represent a baseline reference case study for custom OEM/ODM contract manufacturing. As a direct-factory manufacturer, all spatial outer envelope boundaries, linear light counts (2-light, 3-light, or extended modular arrays), metallic frame gauges, shade glass types (Clear, Seeded, Opal, or Frosted), metal finishes, and suspension rod/chain drops are 100% fully customizable to meet your project CAD drawings and ceiling clearance limits. Micro-component internal hardware specs are intentionally omitted to safeguard factory manufacturing trade standards.
Spatial Outer Boundaries
- Overall Array Length / Width: 36.0 in. (914 mm) [Customizable 800mm – 2000mm]
- Single Shade Width / Depth: 9.5 in. x 9.5 in. (241 mm x 241 mm)
- Individual Fixture Body Height: 16.5 in. (419 mm)
- Min/Max Hanging Suspension Drop: 22.0 in. – 78.0 in. (558 mm – 1981 mm via adjustable stems/chains)
- Canopy Plate Dimensions: L 28.0 in. x W 4.5 in. x H 1.0 in. (Sloped/vaulted ceiling adaptable)
Materials & Finish Options
- Primary Frame Structure: Heavy-Gauge Steel / Machined Brass Housing
- Shade Specifier: High-Clarity Hand-Blown Glass (Clear / Seeded / Ribbed)
- Baseline Metal Finish: Industrial Matte Black / Oil-Rubbed Bronze
- Custom Finish Options: Antique Brass, Brushed Nickel, Polished Copper, Weathered Zinc
Electrical & Compliance
- Socket Specification: 2 x E26 / E27 Medium Base (Max 60W per socket / LED Filament Compatible)
- Operating Voltage: 110V–120V (North America) / 220V–240V (EU/UK/AU)
- Global Compliance Standards: UL/cUL, CE, SAA, SASO, and CB Certified options
- Dimming Compatibility: Dimmable via Standard TRIAC, ELV, or Smart Wall Dimmers
Architectural Integration & Visual Compatibility
The Harrow 2-Light Industrial Linear Pendant combines robust metalwork with crystal-clear glass geometric shades. Below are 3D spatial renderings demonstrating how this 36-inch linear statement fixture integrates into modern farmhouse kitchen islands, urban loft dining spaces, and commercial hospitality bars.
Modern Farmhouse & Industrial Kitchen Islands
Suspended over a butcher block or concrete kitchen island, the linear two-shade configuration casts direct downward task illumination while vintage filament bulbs radiate a warm ambient glow through clear glass. The matte black metal framework anchors white subway tile splashbacks and natural timber textures with crisp architectural contrast.
Design Elements: Reclaimed wood island, concrete worktops, white subway tiles, 2200K vintage amber Edison LED bulbs.
Urban Loft & Transitional Dining Spaces
Positioned above a 6-seater dining table in an urban loft or modern apartment, the Harrow pendant provides structural balance without obstructing sightlines across open-plan living areas. The bold industrial profile pairs effortlessly with exposed brick, steel-framed windows, and distressed leather seating.
Design Elements: Exposed red brick walls, solid oak dining table, cognac leather chairs, stem-suspended linear metal canopy.
Craft Hospitality Bars & Commercial Coffee Venues
For commercial hospitality projects, installing multiple Harrow linear fixtures in a continuous row along a long bar counter creates an inviting vintage atmosphere. B2B contract specifiers can request heavy-duty reinforced mounting hardware, custom long-run track suspensions, or IP-rated glass enclosure modifications.
Design Elements: Zinc bar top, industrial steel stools, matte black accent hardware, commercial dimmable circuit integration.
Environmental Engineering & Maintenance Protocols
Coastal & High-Humidity Rust Defense
For installation in humid or coastal environments, the steel frame structure can be upgraded to stainless steel or electro-galvanized iron coated with a high-durability thermosetting powder finish. This electrostatically cured layer prevents moisture penetration, rust formation, and paint flaking.
Easy-Clean Glass & Dust Management
Designed with open-bottom geometric glass shades, daily dust removal requires minimal effort. In high-dust regions or commercial dining environments, glass shades feature quick-turn thumb-screws that allow facility staff to detach glass enclosures safely for washing without removing electrical wiring.
Smile Lighting Co., Ltd.

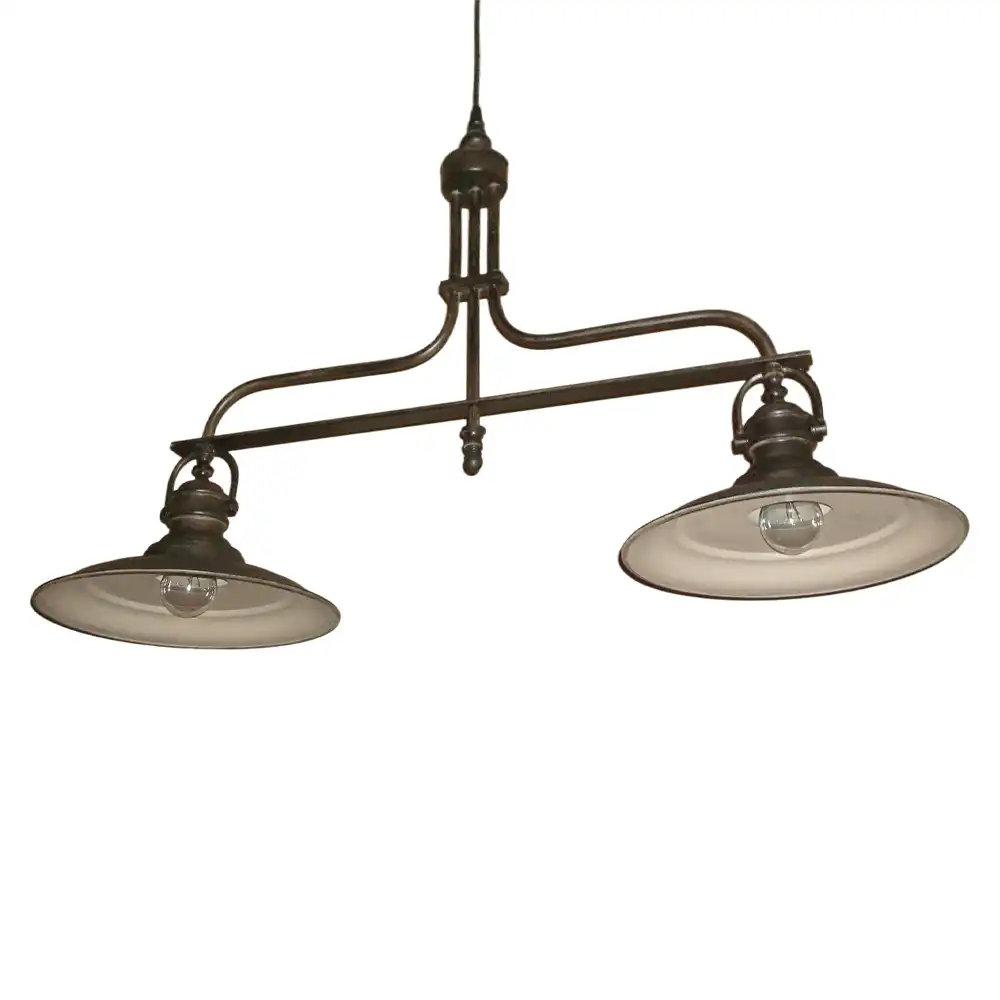

The Harrow 2-Light Industrial Linear Metal Pendant is a quintessential example of Vintage Industrial design, emphasizing raw utility and structural honesty over ornate decoration.
From an aesthetics and interior design perspective, here is a comment on this fixture:
1. Aesthetic Analysis: “Raw Structural Focus”
Minimalist Industrialism: The design is characterized by its “exposed” feel, featuring a central support column that splits into two graceful, gooseneck-style arms. The use of a simple horizontal bar to stabilize the arms adds a geometric, “work-bench” quality to the piece.
Open-Bulb Downlighting: Unlike many modern fixtures that hide the light source, this pendant features wide, shallow metal shades that leave the bulbs partially visible from the side and fully visible from below. This makes the choice of light bulb a key part of the aesthetic.
High-Contrast Finishes: The fixture typically features a dark, weathered exterior (like Oil Rubbed Bronze or Matte Black) paired with a lighter, reflective interior—often white or a metallic tone. This contrast ensures the light is projected efficiently downward while providing a sharp visual outline against the ceiling.
2. Best Fit: Interior Design Styles
Rustic / Modern Farmhouse: This fixture is a staple for the “Modern Farmhouse” look. It provides the necessary “edge” to balance out softer elements like white cabinetry or linen curtains.
Urban Loft / Industrial: Because it looks like it could have been salvaged from an early 20th-century factory, it fits perfectly in spaces with exposed pipes, brick walls, and concrete floors.
Craftsman / Mission Style: Its sturdy, straightforward construction complements the “honesty of materials” found in Craftsman homes, where wood and metal are celebrated in their simplest forms.
3. Strategic Placement & Scaling
Small-to-Medium Kitchen Islands: With a width of roughly 33 inches, this 2-light linear pendant is perfectly scaled for shorter islands (4 to 5 feet). It provides focused task lighting without the visual “clutter” of hanging multiple individual pendants.
Dining Benches or Breakfast Nooks: If you have a long rectangular table pushed against a wall or a built-in banquette, this linear shape follows the line of the furniture, creating a balanced and cohesive look.
Workshop or Home Office: Its utilitarian roots make it an excellent choice for a craft room or a desk, where clear, downward-facing light is essential for productivity.
4. Designer Recommendations
The “Edison” Essential: To truly capture the vintage spirit of the Harrow, use Edison-style filament bulbs. The warm, visible filaments add a “glow” that metal shades alone cannot provide.
Managing Glare: Because the shades are shallow, be mindful of the hanging height. If hung too high, the bulbs may cause glare for people standing nearby; if hung too low, it may obstruct views. Aim for 32–36 inches above the surface for the best balance.
Layering Light: Since metal shades are opaque, this fixture will leave the ceiling in shadow. To prevent the room from feeling “top-heavy” or dark, pair this with recessed ceiling lights or wall sconces to brighten the upper corners of the space.
Summary: The Harrow Linear Pendant is a “character piece” that adds immediate history and ruggedness to a room. It is a practical, durable choice for those who appreciate the timeless appeal of early-century utility.
