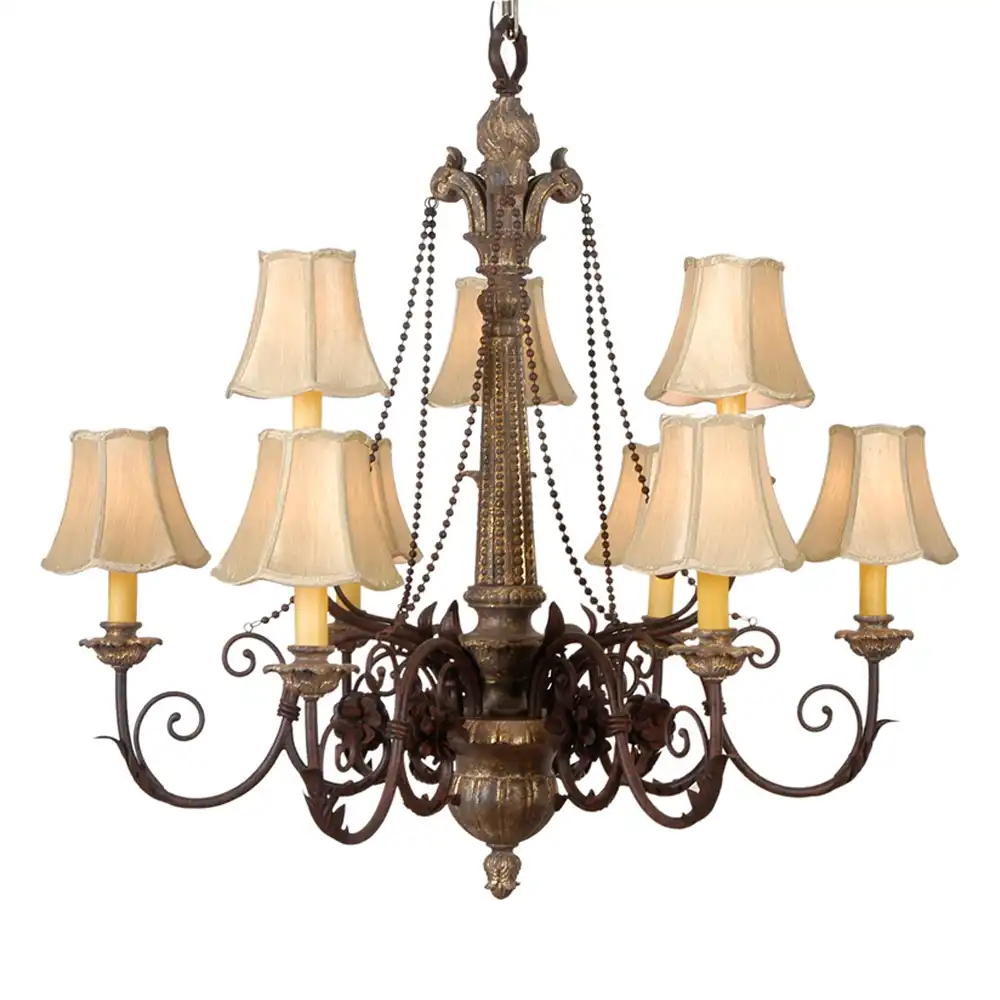

Château Fleur 2-Tier 9-Light Ornate Chandelier with Shades

(1)

B2B OEM / ODM Customization Blueprint & Case Study

The Chateau Fleur 2-Tier 9-Light Ornate Chandelier with Shades

Designed exclusively for commercial lighting brand owners, hotel project specifiers, and global lighting wholesalers. Backed by over 20 years of OEM/ODM contract manufacturing expertise, Smile Lighting presents The Chateau Fleur 2-Tier 9-Light Chandelier blueprint as a fully customizable baseline for contract production. Featuring a hand-forged 2-tier floral acanthus frame paired with 9 tailored silk linen shades and precision K9 crystal accents, this fixture demonstrates our metal fabrication, hand-gilding techniques, and flexible manufacturing capabilities for global residential and hospitality projects.

  • Core Artisanal Feature: 2-tier (6+3 light) ornate floral frame with hand-applied French gold leafing, tailored silk linen shades, and precision K9 crystal drops.
  • 100% Flexible Engineering: Fully customizable outer diameter, overall drop height, socket count (9/12/15/18 lights), shade materials (silk, linen, glass, parchment), and LED integrations.
  • Bespoke Finishes & Substrates: French Gold Leaf, Antique Brass, Champagne Gold, or Matte Black on solid brass, wrought iron, or marine-grade 304 stainless steel.
  • Global Compliance & IP Protection: Built to destination safety standards (UL, CE, SAA, CB). All client-specific engineering modifications and CAD schematics remain protected under strict non-disclosure protocols.

Commercial Procurement Notice: Smile Lighting operates strictly as a B2B contract manufacturer. Specifications shown represent reference baseline blueprints. Proprietary client engineering modifications, CAD files, and private-label production runs remain locked in our high-security IP vault and will never be shared or commercialized.

Description

1. Spatial Boundary Envelope & Baseline Engineering Specifications

Technical Notice for Project Specifiers & Commercial Buyers: All parameters detailed below represent standard baseline envelope dimensions intended strictly for spatial ratio evaluation, ceiling clearance planning, and structural load calculations. Micro-measurements, tier spacing, branch curvature, chain drop lengths, fabric/glass shade opacities, and hand-gilded finishes are 100% customizable to align with your bespoke architectural blueprints.

Engineering Dimension / MetricReference Blueprint ParameterOEM / ODM Customization Elasticity
Overall Outer Diameter / Width (Max Footprint)Ø 38.0 in / 965 mmScalable (Ø 30 in to Ø 72 in+ for two-story grand entryways)
Chandelier Body Height (2-Tier Framework)36.5 in / 927 mmProportional vertical expansion & tier gap adjustment
Overall Suspension Range (Min – Max Drop)44.0 in – 132.0 in / 1118 mm – 3353 mmCustom heavy-duty brass chain or rigid extension downrods
Light Source & Socket Configuration9 x E12 / E14 Candelabra Base Sockets (6 Lower + 3 Upper Tier)Configurable to 12/15/18-light multi-tier setups or LED modules
Structural Substrate MaterialHand-Forged Solid Brass & Heavy Wrought Iron Chassis304 Marine-Grade Stainless Steel available for coastal/high-humidity installs
Primary Metal Finish & ApplicationHand-Applied French Antique Gold Leafing with Vintage Antiquing PatinaPVD Champagne Gold, Antique Brass, Weathered Bronze, Matte Black
Shade & Crystal Elements9 x Hand-Tailored Pleated Silk Linen Shades & Precision K9 Crystal AccentsFrosted glass cups, faux resin candles, Asfour 30% PbO lead crystal drops

Environmental Adaptability & Maintenance Engineering

Smile Lighting tailors structural metallurgy, surface lacquers, and shade compositions to survive demanding commercial or regional environments:

• Coastal & High-Humidity Environments: The forged metal framework can be manufactured using a 304 Stainless Steel substrate treated with electrophoretic anti-corrosion primer and protective sealing lacquer, preventing rust, pitting, or finish degradation.

• High-Dust Regions & Easy Maintenance: Features quick-clip shade fitters and modular crystal hooks. Housekeeping personnel can easily detach fabric shades and crystal elements for periodic cleaning or dust removal without disassembling internal wiring.

2. Spatial Context & Interior Design Contextualization

How does The Chateau Fleur 2-Tier 9-Light Ornate Chandelier perform across varied luxury interior environments? The 3D interior renderings below illustrate how our custom manufacturing flexibility allows this 2-tier ornate fixture to seamlessly harmonize with French Provincial, Neoclassical, and Modern Luxury design schemes:


[ 3D ARCHITECTURAL RENDER: FRENCH PROVINCIAL GRAND DINING SALON ]
[ 3D ARCHITECTURAL RENDER: FRENCH PROVINCIAL GRAND DINING SALON ]

Visual Spec: Single Chateau Fleur 2-Tier Chandelier in French Antique Gold Leafing suspended over a 10-seat carved oak dining table, surrounded by wall molding, chevron oak floors, and cream velvet drapery.

Context A: French Country, Neoclassical Dining Rooms & Heritage Estates

In double-height formal dining halls and European-style estates, the 2-tier 9-light layout creates vertical presence and structural proportion. The hand-tailored silk linen shades soften direct bulb glare, providing a warm ambient glow across decorative plasterwork, carved woodwork, and stone fireplaces.


[ 3D ARCHITECTURAL RENDER: MODERN LUXURY PENTHOUSE LIVING ROOM ]
[ 3D ARCHITECTURAL RENDER: MODERN LUXURY PENTHOUSE LIVING ROOM ]

Visual Spec: Customized Chateau Fleur Chandelier in Champagne Gold finish with custom hardback parchment shades, centered over a low-profile sofa in a modern glass-walled penthouse.

Context B: Modern Luxury Penthouses & Contemporary Minimalist Contrast

When specified in champagne gold or satin nickel with crisp parchment shades, the ornate floral silhouette introduces an artistic contrast inside clean minimalist architecture. Set against polished marble floors, bronze glass, and neutral upholstery, it softens hard geometric lines while adding high-end residential character.

[ 3D ARCHITECTURAL RENDER: BOUTIQUE HOTEL GRAND FOYER ][ 3D ARCHITECTURAL RENDER: BOUTIQUE HOTEL GRAND FOYER ]

Visual Spec: A grand double-tier Chateau Fleur Chandelier illuminating a boutique hotel reception foyer above a central floral display pedestal.

Context C: Commercial Hospitality Foyers, VIP Suites & Hotel Lounges

For commercial specifiers seeking durable statement lighting, the heavy-gauge forged brass chassis ensures long-term structural reliability in high-traffic commercial venues. Suspended centrally over hotel reception desks, ballrooms, or private club lounges, it delivers a welcoming, upscale atmosphere.

3. Quality Control Standards & B2B Global Logistics

Manufactured in our 20,000+ m² ISO-certified production facility in China, every production batch of The Chateau Fleur 2-Tier 9-Light Ornate Chandelier with Shades undergoes comprehensive commercial quality control testing:

  • Structural Weld & Tier Suspension Load Testing: All multi-tier arm joints and hanging loops are weight-tested to 5x total fixture mass to satisfy commercial building installation codes.
  • Electrical Safety Compliance: Sockets and internal wiring harnesses undergo 100% high-voltage dielectric insulation testing, fully certifiable to target regional standards (UL, CE, SAA, CB, RoHS).
  • Surface Finish & Anti-Corrosion Testing: Hand-applied gold leafing and protective lacquers undergo neutral salt-spray chamber testing to ensure zero peeling, oxidation, or tarnish in transit or installation.
  • Drop-Tested Export Packaging: Standardized with precision-molded EPE foam cradles protecting each arm, shade, and crystal drop, encased in heavy-duty 5-ply corrugated export cartons to guarantee damage-free global transit.

* For custom CAD engineering schematics, Photometric IES light distribution files, volume pricing schedules, or confidential physical sample requests, please contact your account manager or submit an inquiry through our trade portal.

Additional

Dimensions86 × 86 × 91 cm
Material

, , ,

Room

, , , , ,

Style

, , , , , ,

0.0 Average Rating Rated (1)

Rated
0%
Rated
0%
Rated
0%
Rated
0%
Rated
0%

Submit Your Review

Your email address will not be published. Required fields are marked *

You have to login to add images.


Sort By:
  1. Smile Lighting Co., Ltd.

    The Chateau Fleur 2-Tier 9-Light Ornate Chandelier is a quintessential expression of French Provincial Elegance and Neoclassical charm. It is designed to bring a sense of garden-inspired romance and historical stature to formal interior spaces.

    From an interior design and aesthetics perspective, here is a comment on this fixture:

    1. Aesthetic Analysis: “Floral Neoclassicism”
    The “Fleur” Motif: True to its name, this chandelier features intricate floral and leaf-work ornamentation. The hand-wrought iron or brass frame is often adorned with delicate metal petals and sweeping vines, creating a “botanical” architectural profile that feels organic yet highly structured.

    Two-Tier Verticality: The 9-light configuration is typically arranged in a 6+3 tiered layout. This staggered design provides significant vertical presence, making the fixture an ideal candidate for filling the “visual volume” of high-ceilinged rooms without feeling bulky.

    Fabric Softness: The inclusion of tapered fabric shades is a crucial design element. These shades diffuse the light into a soft, flattering glow, eliminating the harsh glare of exposed bulbs and adding a layer of “tailored” sophistication that complements the ornate metalwork.

    2. Best Fit: Interior Design Styles
    French Provincial / Country Manor: This fixture is the natural centerpiece for a room featuring cabriole-leg furniture, distressed wood finishes, and a palette of creams, sages, and dusty blues.

    Shabby Chic / Romantic Traditional: Its ornate, floral-heavy design pairs beautifully with vintage textiles, lace accents, and floral wallpapers, reinforcing a soft, “storybook” aesthetic.

    European Transitional: In a modern space, the Chateau Fleur acts as a “feminine” counterpoint to clean, masculine architectural lines, providing a necessary touch of historical narrative and artisanal texture.

    3. Strategic Placement & Scaling
    The Formal Dining Sanctuary: This chandelier is perfectly scaled for oval or rectangular dining tables seating 6 to 8 people. The tiered lights ensure the entire table is evenly illuminated while the shades keep the ambiance intimate for conversation.

    Master Suites: Placing this in a primary bedroom creates an instant “luxury hotel” or “chateau” vibe. Its romantic silhouette is best hung over the foot of the bed or in a dedicated seating nook.

    Grand Entryways: Because of its tiered height, it serves as a spectacular “welcome” piece in foyers with 10-foot ceilings or higher, where its intricate details can be appreciated from multiple angles.

    4. Designer Recommendations
    Bulb Selection: Use warm-white (2700K) bulbs. The warmth is essential to enhance the gold or bronze undertones of the frame and to ensure the fabric shades emit a cozy, amber light rather than a clinical white glow.

    Accent Coordination: To create a cohesive design story, pair the chandelier with botanical-themed wall art or mirror frames that echo the floral scrollwork of the fixture.

    Contrast the Ceiling: This ornate silhouette is best displayed against a simple, matte-finished ceiling. Avoid busy ceiling medallions, as the chandelier itself provides enough decorative complexity; a plain background allows the “Fleur” details to stand out in high relief.

    Summary: The Chateau Fleur is for the homeowner who values grace and decorative history. It is more than a light source; it is a “sculptural garden” for the ceiling that adds a layer of curated, old-world luxury to any refined home.

    Helpful (0) Unhelpful (0)

      GLOBAL COMPLIANCE & SUPPORT

      Geographical & Climate Adaptation

      To accommodate local natural environments and maintain effortless maintenance, we engineer hardware substrates accordingly. For humid or coastal geographical regions prone to high salinity and moisture, standard metals can be upgraded to marine-grade stainless steel or premium solid brass alloys treated with multi-layered anti-oxidation clear finishes. For arid or dust-prone environments, structural components are mechanically balanced to prevent excessive dust accumulation.

      Global Electrical Regulatory Compliance

      Operating as an international OEM/ODM provider, Smile Lighting adapts internal circuitry, lampholders, plugs, and switches to satisfy the regulatory frameworks of your specific market destination:

      • North American Region: Integrated with UL / cUL certified wire paths, localized plugs/switches, and lamp-sockets (110V-120V).
      • European & UK Region: Structured in alignment with CE, UKCA, and RoHS parameters (220V-240V).
      • Oceania Region: Wired to strictly match SAA and RCM standards with certified insulation components.

      We routinely collaborate with global verification laboratories to assist our commercial buyers in securing official product batch certifications necessary for customs clearance.

      Batch-Specific Bespoke Technical Documentation

      Because our factory focuses strictly on production and does not supply field installation technicians, we safeguard your local execution. Since every bulk commercial order involves custom dimensions or specialized mounting bases, a generic pre-printed manual is never used. For each validated commercial run, our engineering division provides a Highly Tailored Installation Blueprint specific to your finalized configuration, mapping out mechanical layouts and internal wire architecture for seamless, safe deployment by certified local electrical contractors.

      IP PROTECTION POLICY

      Intellectual Property (IP) Protection & Security Standards

      For over two decades, Smile Lighting Co., Ltd. has prioritized IP protection as the core foundation of our international B2B client relations. We recognize that custom design iterations and custom scale modifications represent your brand's proprietary market equity.

      1. Purpose of Online Profiles

      The products displayed on our corporate portal comprise solely of legacy configurations manufactured in the past, generic open-market models, or designs with expired exclusivity agreements. They serve strictly as physical manufacturing benchmarks to demonstrate our electroplating consistency, structural balancing, and crystal dressing alignment.

      2. Absolute Seclusion of Custom OEM/ODM Files

      When you submit proprietary architectural layouts or conceptual drawings to our R&D center for analysis, all assets are instantly sequestered within our isolated offline database server. Your designs are never published online, never shown to other buyers, and never cross-utilized. We support and mandate legally binding Non-Disclosure Agreements (NDA) prior to any engineering data transfer.

      3. Active Anti-Cloning Measures

      We strictly do not provide downloadable public DWG / CAD production drawings or individual raw component dimension lists on our web platform. This firewall protects the technical integrity and configuration exclusivity that our active B2B contract clients invest in, mitigating market copycat risks.
