Description
Architectural Symmetry & Monochromatic Precision
Spatial Contexts & Aesthetic Adaptability

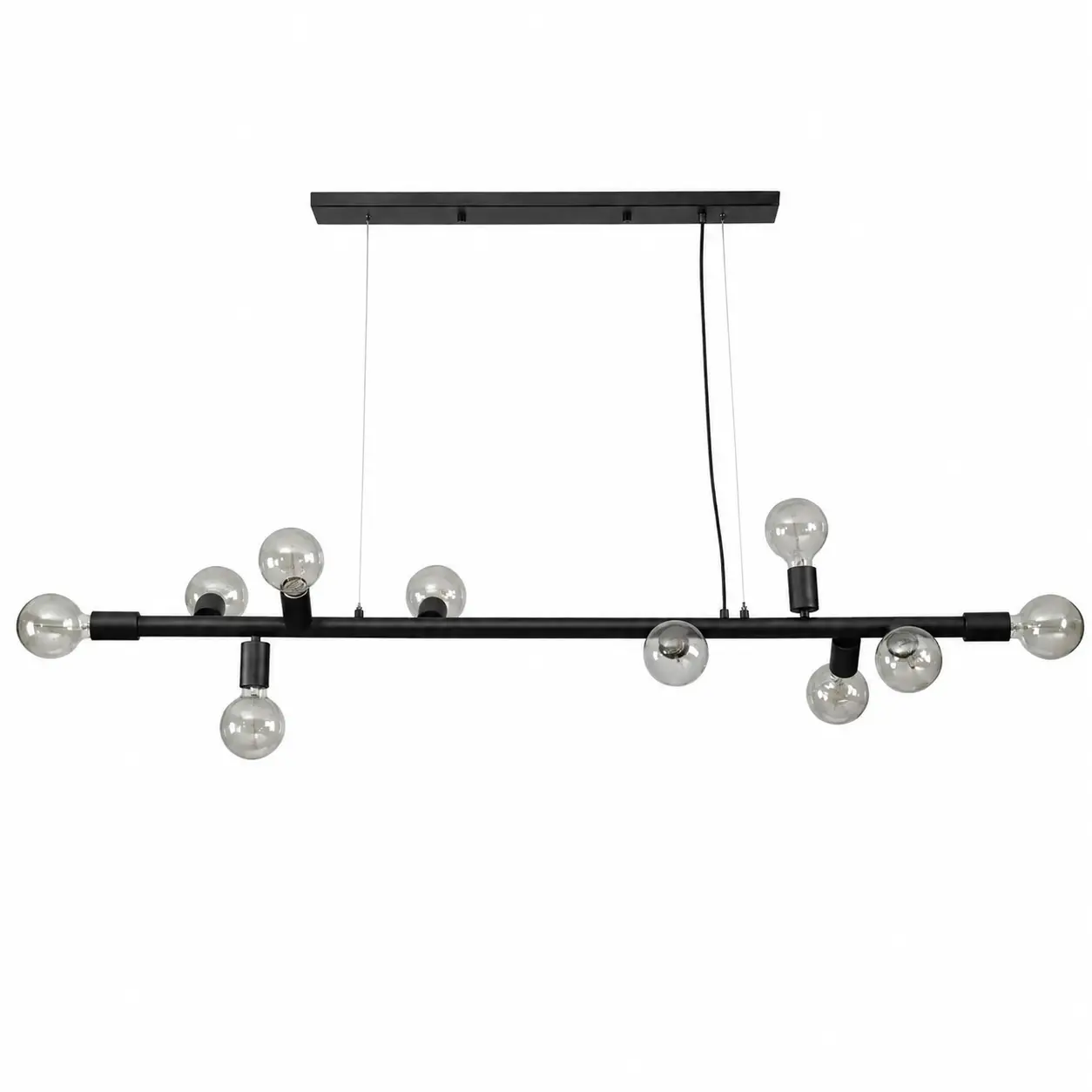

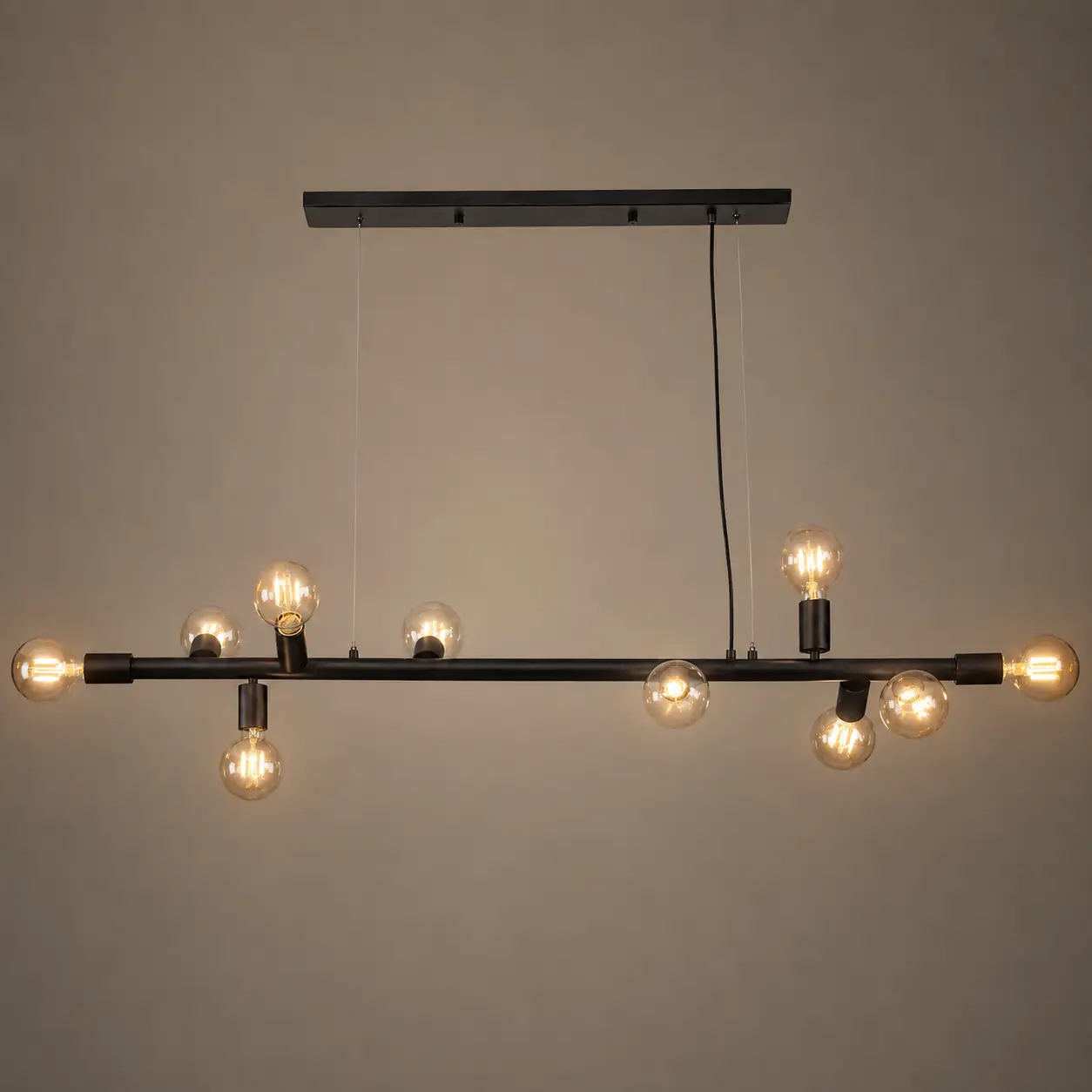

The Axis 10-Light Modern Linear Suspension Pendant fuses clean horizontal lines with a commanding architectural presence. Engineered as a highly adaptable contract manufacturing blueprint for commercial interior architects, lighting specifiers, and global brand owners, this 10-light linear fixture anchors expansive spatial volumes across long kitchen islands, formal conference suites, and hospitality reception desks. Crafted from heavy-gauge structural steel in a tactile powder-coated matte black finish, all overall canopy dimensions, suspension drop lengths, total arm span proportions, socket configurations, and color combinations are 100% fully customizable to match exact project CAD specifications.

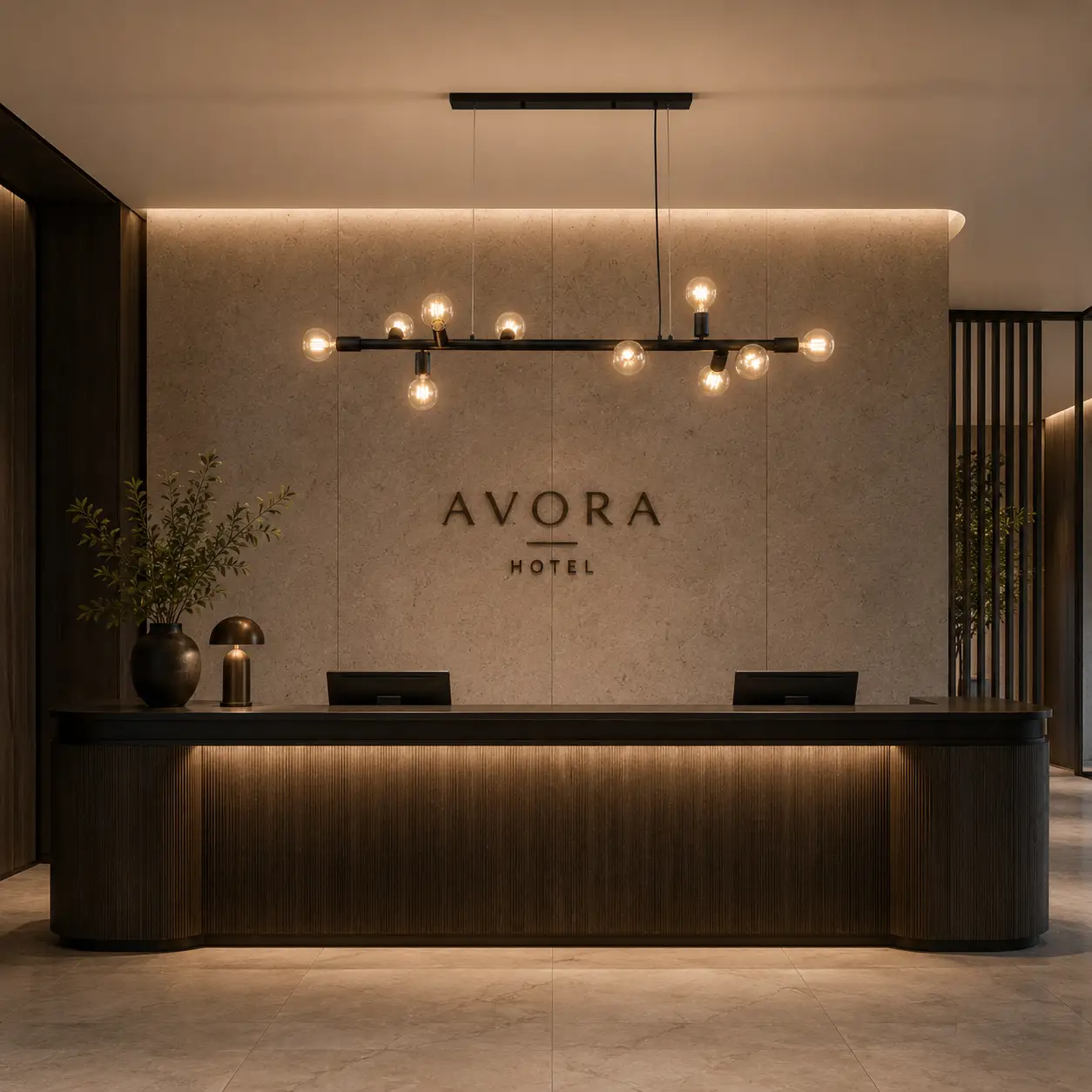

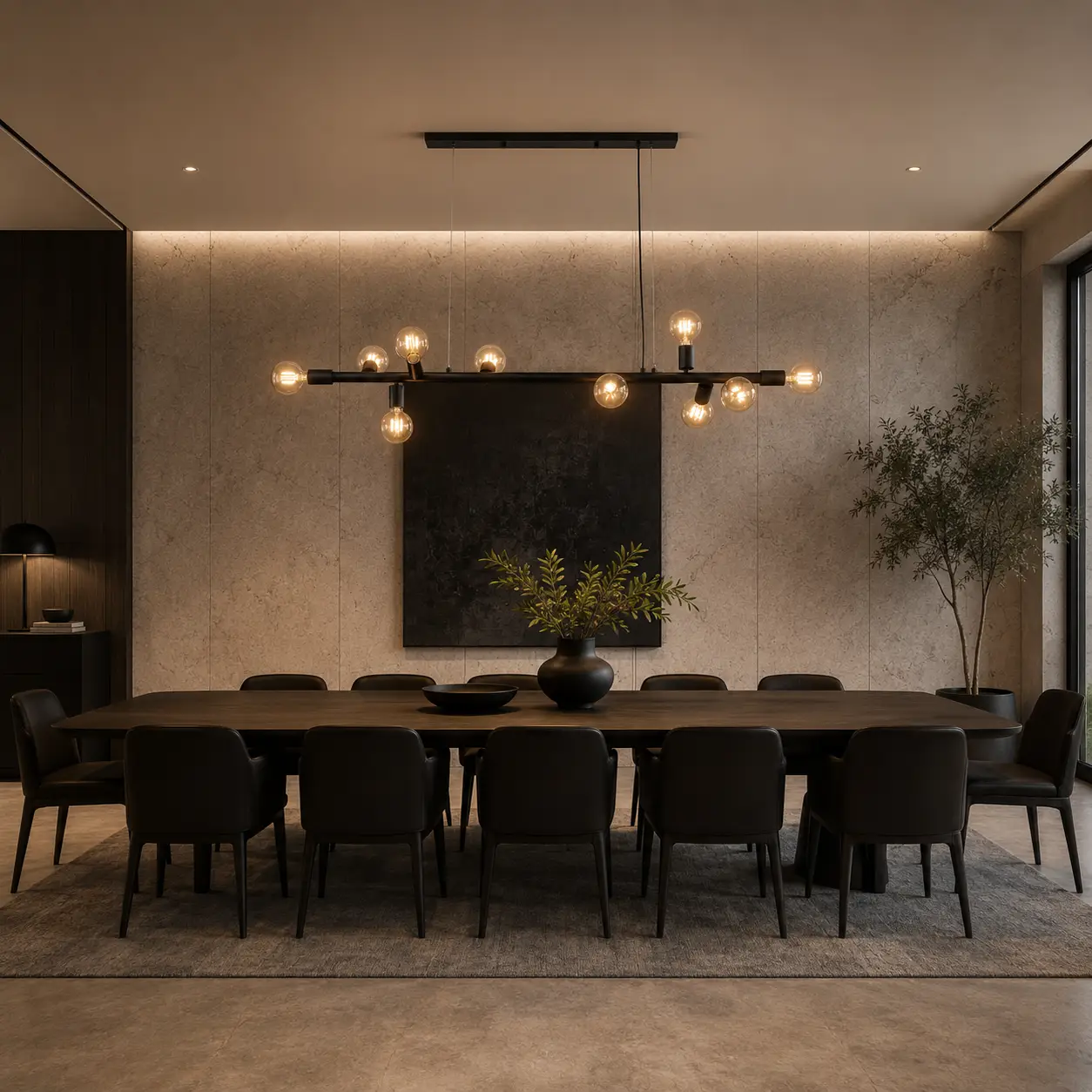

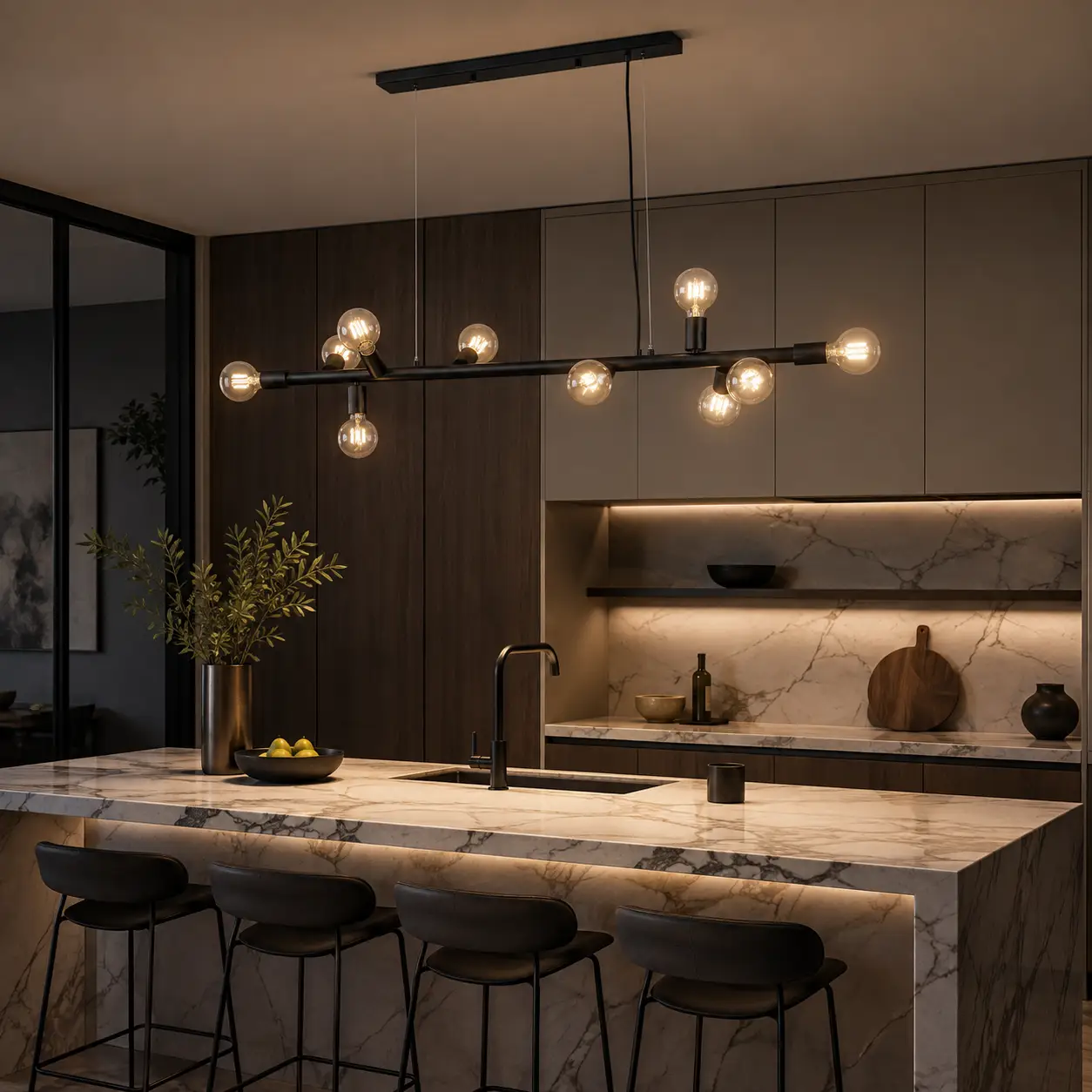

Context 01 Kitchen Island ArraySuspended low over large marble kitchen islands. The 10-point linear array offers wide, even task lighting across countertops while reinforcing clean, modern architectural lines. | Context 02 Formal Dining & BoardroomCentrally aligned over 10-to-12 seat dark wood dining tables or executive meeting spaces. The ultra-matte black silhouette creates strong visual contrast against light concrete or natural stone backgrounds. | Context 03 Hospitality Reception DeskHung above hotel check-in desks or long bar counters. Delivers an impressive horizontal anchor that guides the eye across long service spaces while providing ample functional downlight. |
Engineering Reference Blueprint
Envelope Dimensions & Technical Specifications
SPECIFICATION DISCLAIMER: Data below reflects baseline outer envelope dimensions for spatial proportion planning and ceiling load assessments. Internal structural cross-bracing, wire strain relief assemblies, and concealed mounting bracketry are proprietary. All overall canopy dimensions, total span lengths, socket counts, and finish treatments are 100% fully customizable.
| Specification Axis | Standard Baseline (Reference Only) | OEM / ODM Customization Options |
|---|---|---|
| Envelope Outer Dimensions | Total Span Length: 1350 mm (53.1″) | Overall Width: 380 mm (15.0″) | Body Height: 320 mm (12.6″) | Canopy: L 550 mm × W 100 mm | Adjustable Suspension Cable Drop: 500 mm – 2000 mm (78.7″) | Custom linear spans (L 1000 mm to L 2500 mm+); custom canopy sizes; extended rigid stem rods or aircraft wire suspensions for vaulted ceilings |
| Materials & Components | Heavy-Gauge Seamless Steel / Aluminum Tube Base + Frosted/Clear Glass Globes or Opal Acrylic Diffusers + Reinforced Mounting Bracket | 304 / 316 Stainless Steel framework for high-humidity coastal zones; smoked, amber, clear ribbed, or frosted glass diffusers |
| Illumination & Electronics | 10× G9 / E12 / GU10 Sockets (Max 25W per socket / Compatible with Dimmable Warm White LED Lamps) | Integrated dimmable linear LED modules; tunable white CCT (2700K – 4000K); high CRI 90+; TRIAC, 0-10V, or DALI commercial lighting control compatibility |
| Finishes & Coatings | Powder-Coated Ultra-Matte Black with Fingerprint-Resistant Nano Seal Lacquer | Electroplated Brushed Brass, Brushed Nickel, Polished Chrome, Weathered Bronze, or custom dual-tone contrast finishes (e.g., Black + Gold accents) |
| Safety & Compliance | Universal Input Voltage: AC 100V-240V | Reinforced Steel Cable Suspension & Grounding Terminals | Full factory pre-wiring and safety testing for global export: UL/cUL (North America), CE/CB (Europe), SAA (Australia), SASO (Middle East) |

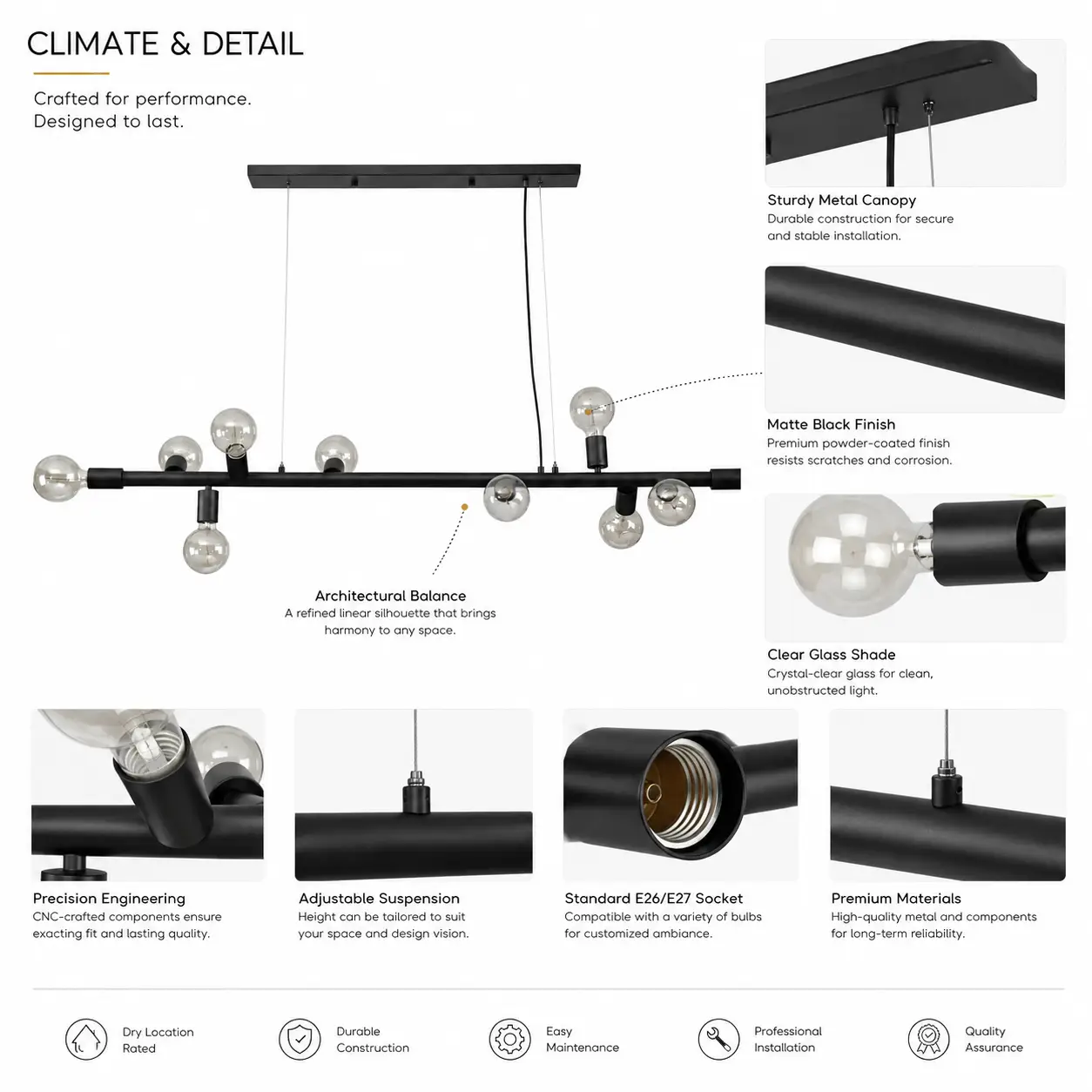

Product Longevity
Climate Resilience & Maintenance Ergonomics
Surface Defense Ultra-Matte Powder Coating & Coastal Salt-Spray ResistanceLinear fixtures installed over dining counters or near coastal windows face elevated ambient moisture and humidity. Smile Lighting coats all steel framework with a high-durability electrostatic matte black powder finish followed by a protective clear seal layer. Tested under salt-spray conditions, this coating prevents rust, surface flaking, and fingerprint smudging over years of commercial use. | Maintenance Ergonomics Threaded Diffuser Attachments & Easy DustingDesigned to simplify routine cleaning across multi-light linear installations. Each glass shade or diffuser features a precision-threaded collar, allowing maintenance crews to quickly detach individual components for dusting or lamp replacements without tools or risking damage to the central frame alignment. |
Smile Lighting Co., Ltd.
From an aesthetics and interior design perspective, The Axis 10-Light Modern Linear Suspension Pendant is a sophisticated exercise in “Geometric Randomness,” utilizing a clean horizontal axis to support a playful, multi-directional array of light.
Based on its design characteristics, here is a professional commentary:
1. Aesthetic Narrative: “Asymmetrical Precision”
The Minimalist Linear Core: The foundation of this fixture is a single, slender horizontal beam in a Matte Black finish. This creates a sharp, graphic “strikethrough” in the air, providing a modern and industrial anchor for the room.
Staggered Socket Placement: The defining feature is the ten sockets branching out from the main beam at varying angles and intervals. This staggered arrangement breaks the traditional rules of symmetry, offering a sense of “planned chaos” that feels like a piece of contemporary kinetic art.
The “Naked” Bulb Aesthetic: By removing shades or diffusers, the design celebrates the raw beauty of the light source. The contrast between the thin black metal and the glowing glass globes creates a high-contrast, “Atomic Age” inspired look that is both retro and futuristic.
2. Interior Design Application
The “Horizontal Volume” Anchor: Because of its significant horizontal span, this pendant is specifically engineered to define and illuminate long, rectangular surfaces without adding visual “heaviness” to the space.
Ideal Placements:
The Modern Kitchen Island: It is a premier choice for long islands, where its slim profile ensures that sightlines across the kitchen remain open and unobstructed.
The Industrial Dining Table: Positioned over a wood or concrete table, it provides a sophisticated architectural “canopy” that facilitates an energetic dining atmosphere.
Open-Concept Workspaces: Its wide field of light makes it excellent for long communal desks or conference tables in creative studio environments.
Style Synergy: The Axis is a perfect match for Urban Industrial, Nordic Minimalist, and Modern Transitional interiors. It pairs exceptionally well with white oak finishes, monochromatic art, and blackened steel hardware.
3. Professional Styling Tips
Bulb Selection is Mandatory: Since the bulbs are the design, choice is critical. Use Clear G25 Globe LED bulbs to maintain the spherical, “planetary” theme. For a more vintage feel, opt for Edison-style filaments; for an ultra-modern look, use frosted globes to soften the glare.
Mastering the Suspension: The fixture is suspended by ultra-thin cables, giving it a “floating” appearance. To maximize this effect, ensure the cables are perfectly vertical and the main beam sits approximately 30 to 36 inches above your surface.
Dimming for Atmosphere: With 10 exposed bulbs, the light output can be intense. It is highly recommended to install this on a compatible dimmer switch so you can transition from bright task lighting to a low, warm glow that mimics a constellation of stars.
Final Verdict
The Axis Linear Suspension Pendant is a “Triumph of Graphic Simplicity”. It is the ideal choice for a homeowner who wants to introduce architectural drama without visual clutter. Its greatest strength is its planned asymmetry, proving that a single straight line can become a captivating focal point when punctuated with light in a clever, unconventional way.
